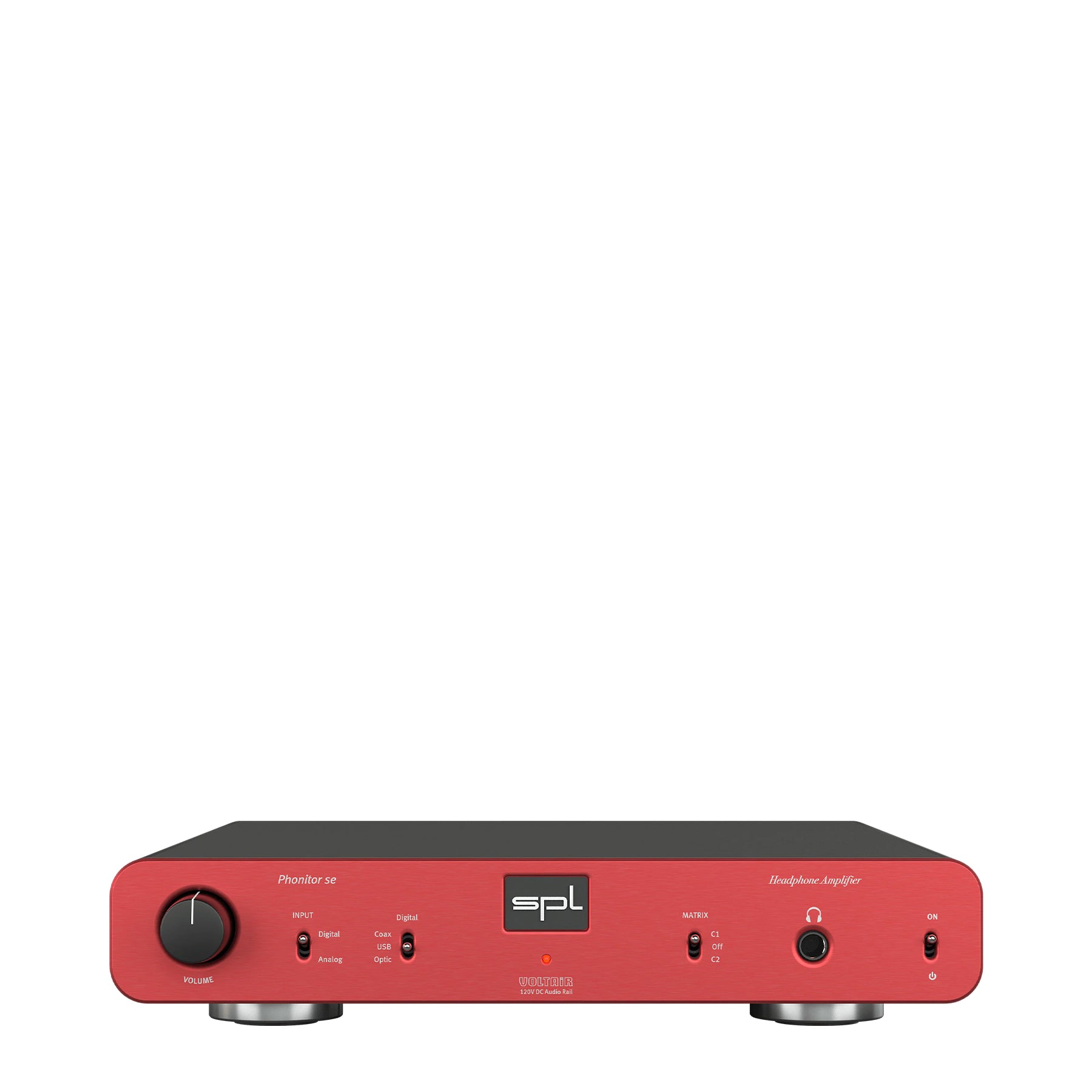

SPL Phonitor SE Headphone Amplifier

This device is a dedicated headphone amplifier and monitoring controller produced by Sound Performance Lab (SPL) in Germany and sold under the Phonitor product line. Production belongs to the modern solid-state era of studio-derived headphone monitoring equipment, approximately mid-2010s onward. The unit is constructed around SPL’s proprietary VOLTAiR operating rail architecture, which raises internal analog supply voltage to approximately ±60 V (120 V total rail span) in order to increase headroom and reduce distortion under high transient signal conditions. The signal path combines discrete high-voltage amplification stages with digitally selectable input routing and a crossfeed monitoring matrix derived from SPL’s studio monitor controller designs. The device occupies a hybrid position between audiophile headphone amplification and professional monitoring control hardware, emphasizing headroom discipline and channel imaging control rather than minimalist circuit philosophy.

I. Primary Materials & Structural Framework

The enclosure follows a rigid folded sheet-metal chassis design typical of modern studio electronics intended for desktop or rack-adjacent operation. The primary structure relies on steel panel fabrication for torsional rigidity and electromagnetic containment, with an anodized aluminum front panel serving as the primary user interface surface. The front plate thickness exceeds typical consumer hi-fi fascia panels and functions partly as a structural stiffener for front-mounted controls. Internal component mounting relies on PCB assemblies secured to the chassis base with threaded standoffs, minimizing flex during transport or repeated connector insertion. Rubberized isolation feet elevate the base plate slightly to allow airflow beneath the chassis while reducing mechanical coupling to desk surfaces. No structural design elements suggest susceptibility to vibration-induced microphonic behavior; the device architecture is electrically dominated rather than mechanically sensitive.

II. Circuit Architecture & Component Quality

The electrical architecture centers on SPL’s VOLTAiR discrete operational amplifier platform operating on a ±60 V rail supply. This elevated rail voltage is significantly higher than conventional audio op-amp supply rails, which typically operate between ±12 V and ±18 V, and provides unusually large voltage swing capacity before clipping. The gain structure therefore prioritizes wide dynamic headroom and extremely low distortion under heavy transient program material. Amplification stages are implemented using discrete transistor networks rather than monolithic integrated operational amplifiers, enabling operation at the elevated rail voltages and allowing SPL to control biasing and thermal behavior more precisely. The power supply architecture incorporates linear regulation stages derived from a conventional transformer-fed rectification system, with multiple localized regulators providing stable supply rails to analog and digital subsystems separately. Capacitor selection within this class of device typically includes low-ESR electrolytics for reservoir storage supplemented by film bypass capacitors for high-frequency decoupling. Grounding strategy within SPL designs historically uses a star-ground reference combined with extensive ground planes to prevent interaction between high-current output stages and low-level signal paths. The crossfeed monitoring matrix is implemented through precision analog filtering networks that simulate speaker listening geometry, introducing controlled inter-channel blending and phase relationships.

III. Thermal Management & Load Handling

Heat generation in this device arises primarily from the high-voltage discrete output stage and the linear power regulation system supporting the elevated rail architecture. Thermal management relies on passive convection through ventilation apertures integrated into the chassis structure rather than active fan cooling. The use of high supply rails requires careful transistor bias management to prevent excessive quiescent heat generation. SPL designs typically distribute output device dissipation across heat-spreading surfaces connected to the chassis structure rather than relying on large exposed heat sinks. Because headphone loads present relatively modest current demand compared with loudspeaker amplifiers, thermal stress remains moderate even during continuous high-level monitoring. The elevated voltage rails allow the amplifier to maintain linear behavior with difficult headphone impedances while avoiding clipping under high dynamic peaks. Long-term stress points are more likely to arise from power supply regulators and reservoir capacitor aging than from output transistor overheating.

IV. Assembly Method & Manufacturing Discipline

Assembly practice reflects contemporary European small-batch electronics manufacturing rather than large-scale automated consumer assembly. The internal architecture uses multi-layer printed circuit boards with surface-mount passive components and discrete through-hole power devices where higher dissipation is required. Soldering quality within SPL manufacturing is typically uniform with automated reflow processes for surface-mount assemblies and controlled wave soldering for through-hole sections. Internal cable harnessing tends to be minimal because the majority of signal routing occurs on board-level traces rather than through point-to-point wiring. Connectors for internal modules are usually secured with locking headers or mechanically reinforced jacks mounted directly to the PCB and chassis simultaneously. Mechanical tolerances on front-panel control shafts and switches are consistent with professional studio hardware rather than consumer electronics.

V. Interfaces, Controls & Contact Surfaces

The user interface architecture is intentionally minimal, reflecting its primary function as a monitoring amplifier rather than a full preamplifier. Volume control is implemented through a precision rotary potentiometer or stepped analog attenuator placed after the input stage to preserve signal-to-noise ratio. Input selection supports both analog and digital program sources, implying the presence of an internal digital-to-analog conversion stage when digital inputs are engaged. The headphone output stage is designed to deliver substantial voltage swing compatible with both low-impedance and high-impedance headphone loads. A distinctive control element is the Phonitor Matrix crossfeed system, which alters stereo imaging through calibrated interchannel blending and delay characteristics intended to simulate loudspeaker listening geometry. Switchgear within SPL equipment typically uses sealed toggle or rocker switches with positive detent engagement designed for long service cycles. Contact surfaces on the headphone output and input connectors are generally nickel or gold plated to reduce oxidation and maintain consistent electrical contact.

VI. Production Context & Market Position

The Phonitor SE occupies a hybrid category between professional studio monitoring hardware and high-end consumer headphone amplification. SPL originates from the German professional audio sector and historically produced dynamics processors and monitoring controllers for studio and broadcast environments. The Phonitor series extended that engineering philosophy into headphone monitoring systems capable of simulating speaker listening conditions. Production scale is moderate rather than mass-market, with distribution through both pro-audio dealers and audiophile retail channels. At time of release the device occupied an upper mid-tier price segment relative to headphone amplifiers, justified by the high-voltage discrete circuit design and integrated monitoring matrix system. Its intended operating environment includes mastering studios, mixing workstations, and personal reference listening setups where accurate stereo imaging and high headroom are considered important.

VII. Preservation State & Intervention Evidence

Units in normal service typically exhibit long electrical stability because the circuit operates with generous headroom margins and relatively modest current loads. The most probable long-term service requirements involve electrolytic capacitor aging within the power supply reservoir and voltage regulation sections. Relay contacts in signal routing paths may eventually require cleaning or replacement after extensive switching cycles. Because the device uses a proprietary discrete op-amp architecture operating at high supply voltages, repair requires components compatible with the elevated rail structure; substitution with conventional integrated op-amps is not feasible. Factory-original examples usually retain internal calibration and configuration integrity since user modification is uncommon. Mechanical wear tends to appear primarily on the volume control potentiometer and headphone output jack due to repeated insertion cycles. Provided the power supply remains electrically stable and ventilation paths remain unobstructed, the device is suitable for continuous operation under normal headphone monitoring loads.

VIII. Market Standing & Value Estimation

Current secondary market valuation generally falls between approximately 1,100 and 1,500 USD depending on configuration, presence of optional DAC modules, and overall cosmetic and electrical condition. Valuation is supported by the device’s discrete high-voltage architecture, German professional audio pedigree, and continued relevance in both studio and audiophile headphone systems. Liquidity in the used market is stable because the Phonitor series maintains recognition among mastering engineers and headphone enthusiasts seeking high-headroom amplification. Replacement cost for comparable new equipment with similar headroom and monitoring matrix functionality remains substantially higher than typical consumer headphone amplifiers. The majority of the unit’s value resides in engineering design and manufacturing execution rather than intrinsic material content.
