17 Jewels “Digital” Jump Hour Disc Configuration, Early 1970s

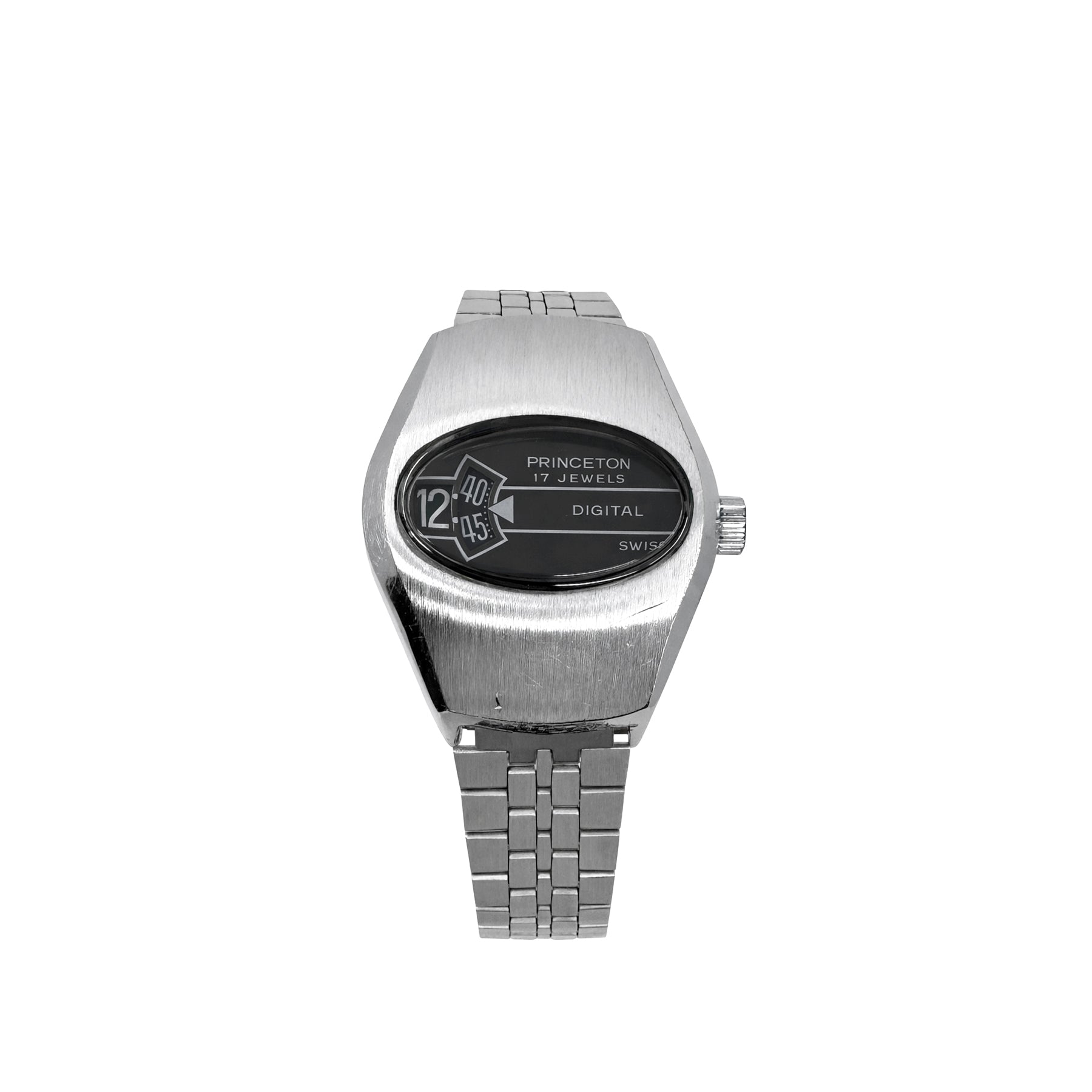

This is a Swiss-made mechanical jump hour wristwatch branded Princeton, signed “17 Jewels Digital Swiss,” produced circa early to mid-1970s. It houses a manually wound mechanical movement with 17 jewels driving a digital-style disc display for hours and minutes. The case is stainless steel with integrated bracelet architecture and a brushed tonneau form consistent with period industrial design. The watch represents a mechanical interpretation of “digital” time display prior to quartz LED/LCD dominance. Its relevance lies in its embodiment of the 1970s transitional design language in which mechanical engineering adopted electronic-era aesthetics without abandoning traditional movement construction.

I. Case Architecture & Metal Integrity

The case is stainless steel with a broad, brushed upper surface and polished chamfer transitions along the flanks. The geometry is cushion-tonneau, typical of mid-1970s mass-market Swiss production. The crystal is domed and oval, seated within a recessed bezel aperture integrated into the case body rather than applied separately. The caseback is stainless steel, secured by a multi-notch compression or screw system, engraved “All Stainless Steel Back Swiss Made,” without decorative treatment. Edge softening is visible along the lugs and bezel perimeter, indicating prior polishing. The brushing on the top surface appears refreshed relative to the rounding of case edges, suggesting refinishing rather than untouched preservation. Structural integrity remains intact; no deformation is evident.

II. Dial Construction, Iconography & Surface Aging

The display is a black printed base beneath a single oval crystal window. Hours are shown via a rotating disc on the left aperture; minutes are displayed through a radial disc visible through a stylized arrow-shaped frame. The typography is stark, white on black, consistent with 1970s graphic minimalism. The word “Digital” reflects period marketing language rather than electronic functionality. No applied markers are present; all graphic elements are pad-printed. The arrow motif framing the minute disc is decorative but functional, guiding legibility rather than conveying ideological symbolism. There are no heraldic, political, or esoteric programs embedded in the design. Surface condition of the print appears stable with no visible flaking. Slight haze in the crystal is consistent with age.

III. Movement Architecture & Mechanical Intent

The inscription “17 Jewels” indicates a conventional manually wound Swiss lever movement modified with a jump hour module. Such watches commonly used base calibers from manufacturers such as ETA, FHF, or AS, fitted with a disc mechanism driving instantaneous or semi-instantaneous hour change. The mechanical intent was to reinterpret time display in a format associated with electronic instrumentation while remaining fully mechanical. Energy transmission would route through a reduction system to rotate the hour disc once per twelve hours and the minute disc continuously. These modules often increased torque demand and required precise adjustment to maintain clean hour transitions. Finishing would be utilitarian, with emphasis on function over decoration.

IV. Proportion, Wear Profile & Ergonomics

The case dimensions appear moderate by 1970s standards, likely approximately 35–38 mm across, with significant visual mass due to the integrated case shape. Thickness is increased relative to standard three-hand watches to accommodate the disc module. The integrated bracelet produces a continuous steel profile from case to clasp, distributing weight evenly. On wrist, the watch would present as compact but visually assertive due to its solid dial aperture and absence of conventional hands. The domed crystal rises above the case line, increasing vertical presence.

V. Production Context, Cultural Messaging & Industrial Position

Princeton is a secondary-tier Swiss brand name historically associated with export-oriented production rather than high horology. During the 1970s, numerous mid-market brands produced mechanical jump hour watches to capitalize on the public association of “digital” with modernity. This model aligns with that commercial strategy. The styling reflects broader industrial trends influenced by automotive dashboards, early electronic calculators, and space-age graphic simplification. It does not appear to be military, institutional, or commemorative in origin. Production volume would have been moderate, typical of catalog-driven export watches.

VI. Originality Audit

The dial printing, disc typography, and crystal aperture alignment appear consistent with factory assembly. There is no evidence of aftermarket modification to simulate a jump hour configuration. The bracelet appears period-correct and integrated to the case design, though it may not be manufacturer-signed. The case shows signs of polishing that have softened edges and altered original surface transitions. The crown appears unsigned and consistent with generic Swiss production of the period. Overall configuration is likely original, with cosmetic refinishing of the case exterior.

VII. Temporal Standing

Mechanical jump hour watches from the 1970s occupy a niche category within vintage collecting. They are neither rare nor mainstream icons. Interest is driven by design period specificity and mechanical novelty rather than brand prestige. Princeton examples sit below better-known manufacturers in hierarchy but remain legitimate artifacts of the mechanical-digital transitional era. Market attention is cyclical, often aligned with broader interest in 1970s industrial design.

VIII. Market Standing & Value Estimation

Comparable Swiss jump hour watches from secondary brands typically transact between 400 and 700 EUR depending on condition and mechanical health. Case refinishing reduces value relative to untouched examples but does not eliminate desirability if functionality is intact. Liquidity is moderate within specialist vintage forums and online marketplaces. Value derives from design period and mechanical configuration rather than brand equity. Replacement cost for a similar functioning mechanical jump hour from a contemporary microbrand would likely exceed resale value, but collector pricing remains constrained by brand recognition and condition.
