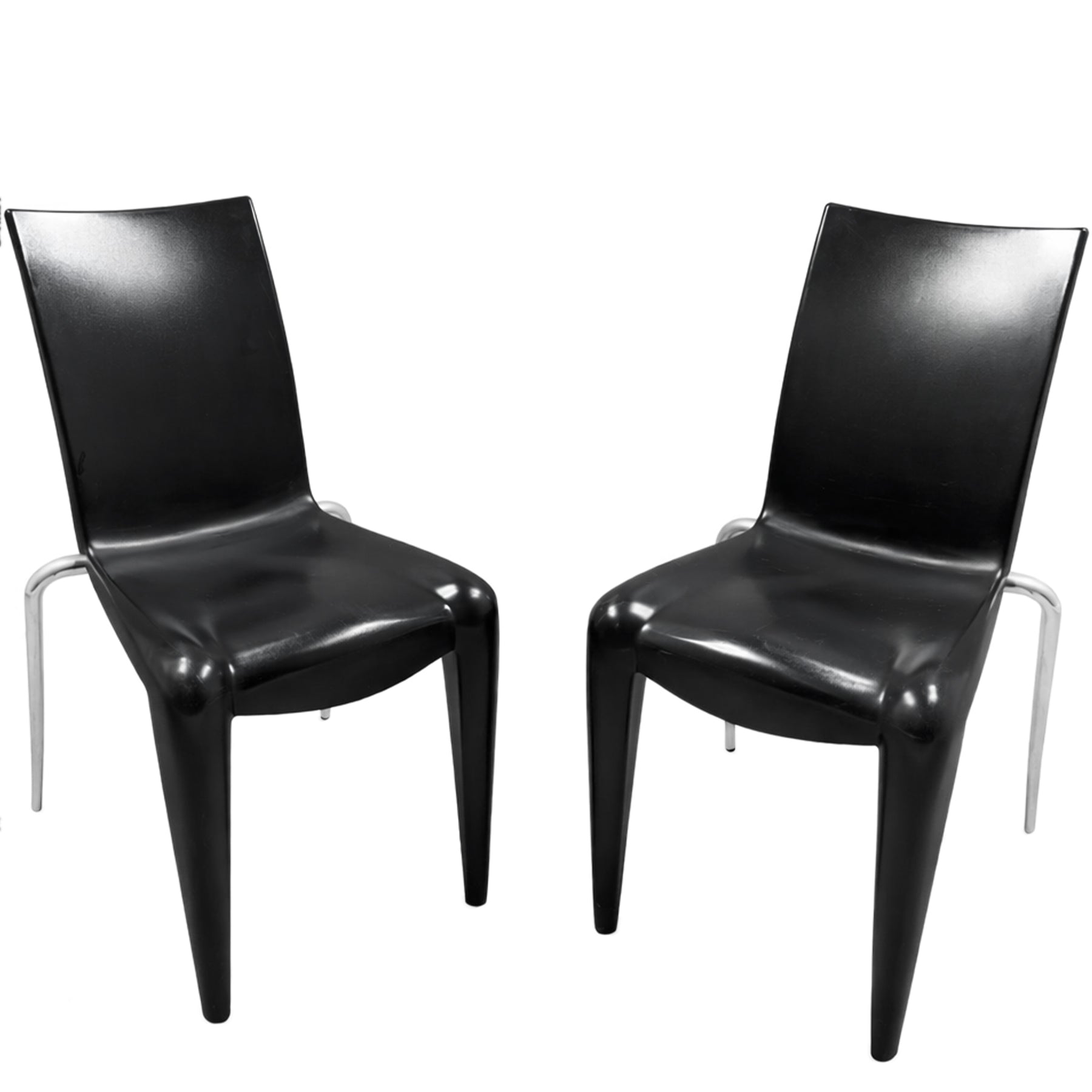

Louis 20 Chair, Injection-Molded Polypropylene Shell, Early-1990s

This object is a Louis 20 chair designed by Philippe Starck and produced by Vitra. The model was introduced in the early 1990s as part of Starck’s exploration of monobloc plastic seating that references historical chair typologies while relying on industrial polymer manufacturing. The chair consists of a molded polypropylene shell forming the seat, backrest, and front legs, combined with a bent aluminum rear support frame. Fabrication is entirely industrial, employing injection molding for the polymer body and tubular bending for the metal support element. The structural concept divides load transfer between the molded plastic shell and the rear metal frame. Within the development of late twentieth-century design furniture, the model reflects the transition toward structurally ambitious monobloc plastic seating produced at large industrial scale.

I. Primary Materials & Structural Integrity

The main structural body is produced from injection-molded polypropylene forming a continuous shell that integrates the seat, backrest, and two forward legs. Polypropylene provides moderate structural rigidity combined with flexibility that reduces fracture risk under dynamic loads. The rear portion of the chair is supported by a bent aluminum tubular frame that forms the rear legs and stabilizes the shell through mechanical attachment points beneath the seat. The load path distributes weight through the plastic front legs while transferring rearward forces into the aluminum support frame. The polymer shell must resist localized stress at the junction where the seat transitions into the front legs, an area commonly reinforced through increased material thickness in molded furniture of this type.

II. Fabrication Method & Production Logic

The shell is manufactured using high-pressure injection molding. Molten polypropylene is injected into a precision steel mold that forms the full geometry of the seat, including integrated leg structures and surface curvature. After cooling, the molded component is trimmed and prepared for assembly. The rear structural element is formed from bent aluminum tubing shaped through mechanical bending equipment. The aluminum frame is subsequently finished with a brushed or anodized surface treatment. During final assembly the aluminum frame is attached to the molded shell using machine screws passing through reinforced mounting points integrated into the underside of the seat.

III. Joinery, Fastening & Engineering Resolution

Structural connection between the polymer shell and the aluminum frame is achieved through mechanical fasteners positioned beneath the rear portion of the seat. A metal mounting plate distributes mechanical stress between the shell and the tubular frame. This assembly prevents concentrated stress around individual screw locations within the plastic. The front legs remain integral to the molded shell, eliminating additional joinery or reinforcement elements. The structural concept balances the compressive capacity of molded polypropylene with the rigidity of aluminum tubing, allowing the chair to maintain stability without requiring a full metal frame.

IV. Surface Finish & Material Treatment

The polymer shell is pigmented during the molding process, producing a uniform black coloration throughout the material thickness. This approach eliminates the need for applied paint or lacquer finishes and allows minor surface abrasions to remain visually consistent with the surrounding material. Molded plastic surfaces often show light scuffing and polishing in areas of repeated contact, particularly along seat edges and front legs. The aluminum rear frame exhibits a brushed metallic surface or light anodization designed to resist oxidation. Surface wear on aluminum typically manifests as fine scratches or dulling from contact with flooring or adjacent furniture.

V. Formal Language & Design Lineage

The chair references the general outline of historical four-legged dining chairs while translating the typology into a simplified monobloc plastic form. The visual weight of the front legs echoes the silhouette of traditional furniture while the exposed aluminum rear frame reveals the modern structural solution. Starck’s approach often combines historical reference with industrial material logic, and the Louis 20 chair follows this pattern by presenting a recognizable chair profile realized through contemporary manufacturing methods. The form situates the object within the late modern design culture that explored expressive possibilities of injection-molded plastics.

VI. Production Context & Market Position

Vitra produced the Louis 20 chair during a period when polymer furniture manufacturing had matured sufficiently to support complex molded geometries. Philippe Starck had already established a reputation for merging conceptual design with industrial manufacturing systems, and Vitra’s collaboration with him positioned the chair within the international design furniture market rather than the mass-market plastic furniture sector. Production appears to have been serial industrial manufacturing with global distribution through design retailers and contract furniture channels.

VII. Preservation State & Intervention Evidence

The molded polypropylene surfaces show signs of normal wear including surface scuffing and minor abrasions consistent with repeated use. These marks generally remain superficial and do not compromise structural integrity unless associated with cracks around stress points. The connection area between the polymer shell and aluminum frame should be examined for signs of stress whitening or micro-fracturing in the plastic near the mounting screws. The aluminum frame displays visible abrasion along lower curves where the legs contact the floor, a common wear pattern for tubular metal supports.

VIII. Market Standing & Value Estimation

The Louis 20 chair occupies a modest but stable position within the secondary market for late twentieth-century design furniture. Individual examples typically trade within an approximate range of 250 to 600 EUR depending on condition, color variant, and presence of original manufacturer labeling. Pairs or larger sets occasionally achieve higher aggregate prices due to their suitability for dining or conference settings. The value is derived primarily from designer authorship and manufacturer reputation rather than rarity of production.
