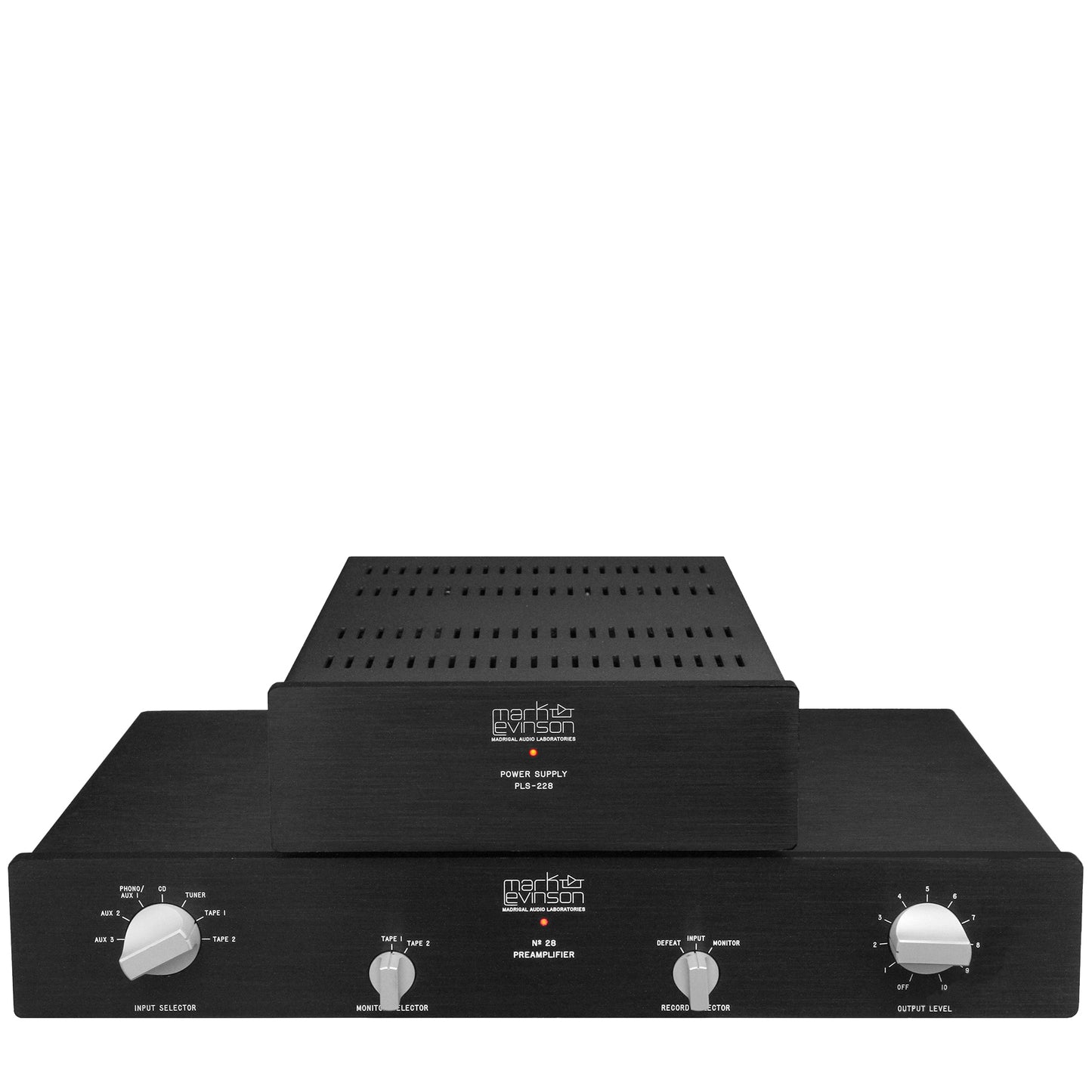

No. 28 Line-Level Preamplifier with PLS-228 External Linear Power Supply

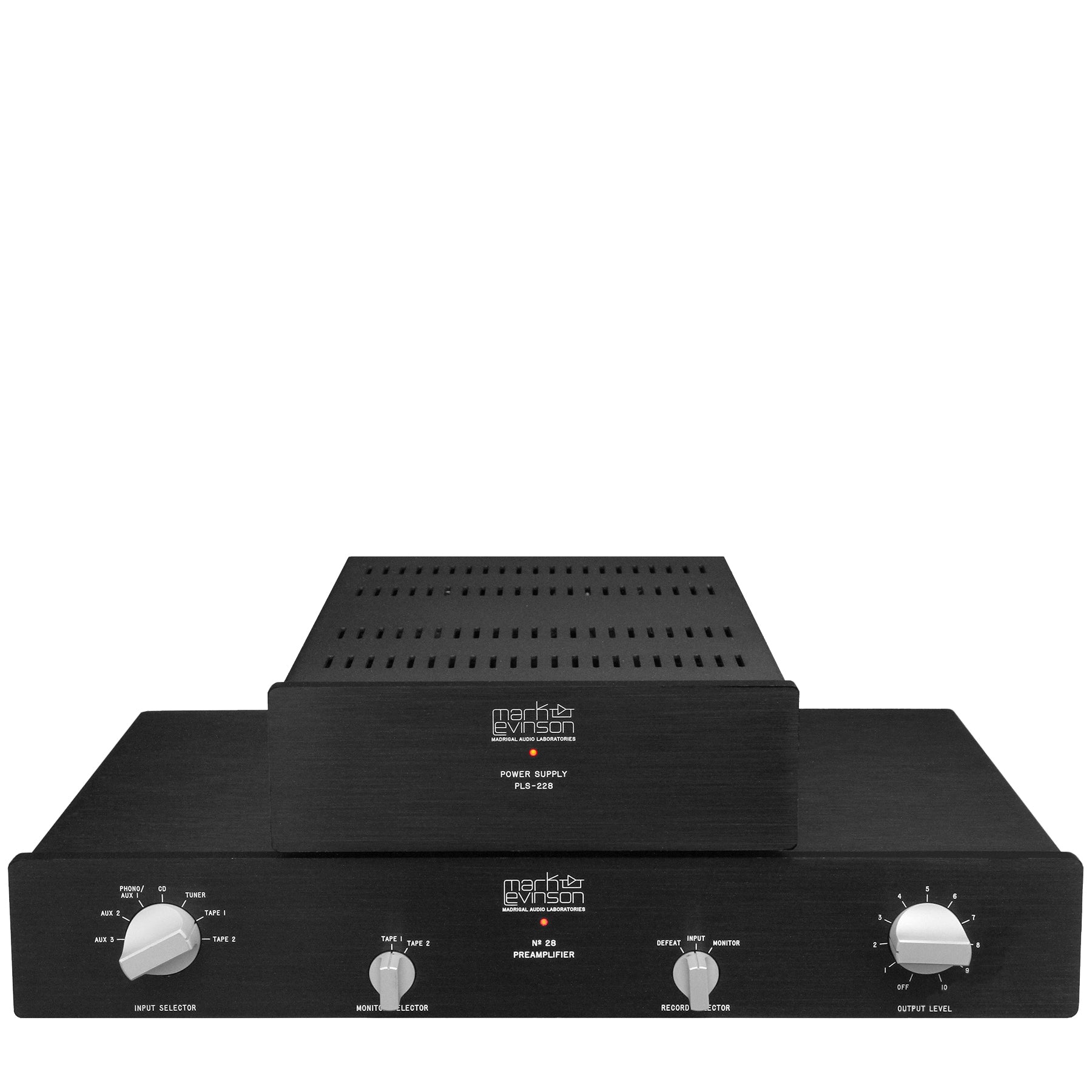

The Mark Levinson No. 28 is a two-chassis line-level control preamplifier system produced by Madrigal Audio Laboratories during the early to mid-1990s, consisting of the signal chassis and the PLS-228 external linear power supply. The design separates the transformer, rectification, and primary regulation stages from the low-level signal electronics in order to reduce magnetic coupling and ground contamination within the gain stages. Construction relies on heavy aluminum chassis panels, internal sub-frames for board mounting, and shielded cable umbilicals linking the power supply to the control unit. The signal architecture is solid-state and primarily line-level oriented, reflecting the period’s transition away from phono-centric systems toward multi-source line playback. The engineering emphasis centers on stable low-noise voltage rails, short signal paths, and mechanically rigid enclosure structures intended to minimize vibration and electrical interference within sensitive gain circuits.

I. Primary Materials & Structural Framework

The chassis architecture uses thick aluminum panels with a machined front fascia of substantial mass relative to enclosure depth, contributing both structural rigidity and vibration damping. The enclosure is fabricated from folded sheet aluminum with ventilation slots stamped into the upper cover to permit convection airflow from internal regulators and discrete output stages. The separate PLS-228 supply enclosure follows a similar construction philosophy but with greater emphasis on internal transformer isolation and magnetic containment. Internal board mounting typically relies on metal standoffs attached to the chassis floor, establishing a rigid mechanical reference while maintaining controlled grounding paths. Shielding strategy in this generation of Madrigal equipment generally incorporates compartmentalization between supply filtering, control logic, and analog signal stages. Mechanical robustness of the enclosure is consistent with mid-to-upper tier high-end audio manufacturing of the period, with sufficient panel thickness to resist flex and maintain connector alignment under repeated cable insertion. Wear patterns on anodized aluminum surfaces typically present as light edge polishing or micro-abrasion rather than structural degradation, as the material itself resists warping and corrosion under normal domestic conditions.

II. Circuit Architecture & Component Quality

The No. 28 employs a solid-state analog preamplifier topology structured around discrete gain stages supported by regulated low-noise supply rails derived from the external PLS-228 unit. Signal routing is organized around input selection networks, buffer or gain stages, and output drivers designed to maintain low output impedance for stable interaction with downstream power amplifiers and long interconnect runs. The architecture prioritizes channel separation and predictable gain structure rather than extensive signal processing. The external power supply houses the main transformer, rectification network, reservoir capacitors, and preliminary voltage regulation stages. By relocating these functions outside the signal enclosure, the design reduces radiated magnetic fields and rectifier switching noise within the preamplifier chassis. Madrigal equipment from this era typically used oversized linear transformers relative to continuous current demand, producing stable voltage rails with generous transient headroom. Component selection generally favors film capacitors in signal-critical positions and high-quality electrolytics for reservoir and local decoupling functions. Active devices in gain stages are commonly discrete transistors or carefully selected integrated devices arranged for predictable thermal stability and channel matching. Grounding strategy follows a controlled star-reference approach intended to prevent circulating ground currents between input, output, and power return paths.

III. Thermal Management & Load Handling

Thermal output within the signal chassis is modest due to the absence of high-power output stages, but localized heat generation occurs at voltage regulators and active gain devices operating in linear bias conditions. Ventilation slots in the upper panel support passive convection, allowing heat to migrate upward and exit without forced airflow. The power supply enclosure handles the majority of thermal load due to transformer copper losses and regulator dissipation. Heat sink structures inside the supply chassis are typically sized conservatively to maintain stable regulator temperature during continuous operation. Because the unit is designed for long-duration listening sessions, steady-state thermal equilibrium rather than peak dissipation defines the cooling strategy. Evidence of thermal stress in units of this age usually appears as minor discoloration of adhesive used for capacitor stabilization or slight darkening of nearby PCB substrate around regulator components, both consistent with normal service conditions rather than design deficiency.

IV. Assembly Method & Manufacturing Discipline

Assembly practices characteristic of Madrigal Audio Laboratories during the period emphasize organized board layout, disciplined cable routing, and consistent soldering standards. Printed circuit boards are mounted on rigid standoffs and connected via shielded harnesses or board-to-board connectors with mechanical retention. The umbilical cable between the PLS-228 supply and the preamplifier chassis is engineered to maintain shielding continuity and stable grounding reference between the two enclosures. Factory soldering in equipment of this lineage typically presents uniform fillet geometry and minimal flux residue, reflecting controlled production processes rather than ad-hoc hand assembly. Internal wiring harnesses are generally bundled and anchored to prevent vibration-induced fatigue at solder joints or connector pins. Connector hardware is mechanically anchored to the chassis rather than relying solely on PCB mounting, reducing mechanical stress during repeated cable insertion.

V. Interfaces, Controls & Contact Surfaces

The control interface relies on rotary selectors and potentiometers with defined detent positions for source selection, monitoring configuration, and output level control. These components are typically panel-mounted and mechanically coupled to internal switching assemblies or resistor networks. In higher-end Madrigal equipment, volume control implementations often employ precision resistor networks or high-grade potentiometers chosen for channel tracking accuracy and long rotational life. Input and output connectors follow standard unbalanced RCA conventions typical of domestic high-end audio equipment of the period, though internal signal routing and grounding discipline often reflects studio-derived engineering practices. Contact surfaces on these connectors are generally gold-plated to reduce oxidation and maintain low contact resistance over long service intervals. Wear on high-use controls usually manifests as minor reduction in detent sharpness or slight mechanical polishing of knob surfaces rather than electrical degradation when properly maintained.

VI. Production Context & Market Position

The No. 28 was introduced during a period when high-end audio manufacturers increasingly emphasized modular architecture, external power supplies, and measured noise reduction as differentiating engineering features. Madrigal Audio Laboratories positioned the Mark Levinson product line within the upper tier of domestic high-fidelity equipment, targeting dedicated listening systems rather than mass-market receivers or integrated amplifiers. Production volume was moderate rather than boutique-limited, distributed through specialized hi-fi dealers and professional audio showrooms rather than general electronics retailers. Pricing at release placed the unit firmly in the premium segment, reflecting both the dual-chassis construction and the company’s reputation for conservative circuit design and rigorous manufacturing standards. The device occupies a transitional point in audio history where analog line-level sources, digital disc playback, and emerging home theater equipment coexisted, though the No. 28 itself remains focused on two-channel signal purity.

VII. Preservation State & Intervention Evidence

Units of this age frequently exhibit aging electrolytic capacitors within the power supply reservoir and local decoupling networks. Replacement of these components is a common maintenance intervention and, when executed with equivalent or higher-grade parts, generally improves long-term stability without altering circuit intent. Relay contacts and mechanical switches may accumulate oxide or contamination over decades of use, occasionally requiring cleaning or replacement to maintain reliable signal routing. The structural integrity of the aluminum chassis and front panels tends to remain stable even after extended service life, provided the equipment has not been exposed to corrosive environments. Internal PCBs usually show little mechanical degradation aside from normal thermal cycling effects around voltage regulation areas. Properly serviced units continue to operate safely within their intended electrical envelope, maintaining stable voltage rails and predictable gain structure when paired with compatible downstream amplification.

VIII. Market Standing & Value Estimation

The Mark Levinson No. 28 with PLS-228 supply occupies a recognized position within the used high-end audio market due to the brand’s engineering reputation and the enduring appeal of discrete analog control stages. Typical resale values in the current market range approximately between 3,000 and 3,500 USD depending on cosmetic condition, service history, and functional stability of the power supply section. Liquidity remains moderate among audiophile enthusiasts and collectors of Madrigal-era Levinson equipment. Functional equivalents exist in modern preamplifier designs, though contemporary units frequently integrate switching power supplies or digital control systems that differ from the strictly analog architecture used here. Replacement cost for comparable build quality and dual-chassis linear supply design in current production often exceeds the resale range of the original unit, though long-term serviceability depends on continued availability of discrete components and qualified technicians familiar with the platform.
