ML-10 Dual-Mono Preamplifier, Modular Early Solid-State Control Architecture

This is a Mark Levinson ML-10 stereo preamplifier produced in the United States during the mid-1970s, a period when the company focused on modular low-noise solid-state control electronics intended for high-resolution domestic systems and small studio installations. The device is housed in a rack-width steel and aluminum enclosure with a restrained front control array and rear panel populated by discrete line-level and phono RCA interfaces. Internal architecture in this model series is based on discrete transistor gain stages arranged in modular boards supplied by a regulated linear power supply. Particular emphasis in the design lineage was placed on low noise in the phono stage, controlled gain structure, and channel independence through a largely dual-mono signal topology. The ML-10 sits within the early Mark Levinson catalogue as a transitional design preceding the company’s later fully modular ML-series control units. Its relevance lies in the application of studio-style circuit discipline to domestic playback chains during a period when phono sources still dominated high-fidelity system architecture.

I. Primary Materials & Structural Framework

The enclosure is formed from folded steel chassis panels with a thick anodized aluminum top plate secured by a regular pattern of machine screws. The front panel is a brushed anodized aluminum extrusion of moderate thickness designed for rack mounting, indicated by the lateral mounting holes at the panel extremities. The top plate’s large surface area functions primarily as a rigid structural cover rather than a thermal radiator, consistent with the modest dissipation of low-level signal electronics. Mechanical rigidity is achieved through the integration of the bottom chassis tray and the front panel acting as a load-bearing structural member. Shielding is largely achieved through the continuous metal enclosure, which serves as a Faraday barrier around the low-level phono circuitry. There is no evidence of structural deformation or fatigue in the enclosure geometry, and the anodized surfaces exhibit the uniform matte finish typical of the period’s industrial fabrication methods.

II. Circuit Architecture & Component Quality

The ML-10 belongs to a generation of Mark Levinson designs that used discrete transistor amplification rather than integrated operational amplifiers. Signal routing typically follows a modular board layout where phono equalization and line amplification are implemented on separate circuit cards. The phono stage implements RIAA equalization using precision resistor and capacitor networks around low-noise discrete gain stages optimized for moving-magnet cartridge input levels. The line stage operates with moderate gain and relatively low output impedance to drive downstream power amplifiers through short interconnect runs. Power supply design is linear, likely employing a laminated core transformer and discrete regulator network to provide stabilized rails to the audio modules. Grounding discipline in these units generally uses a centralized star reference tied to the chassis near the supply entry, minimizing ground loop susceptibility between the phono stage and line-level inputs. Component selection from the period commonly includes metal-film resistors, film capacitors in equalization networks, and electrolytic reservoir capacitors sized for low ripple in the regulated supply rails.

III. Thermal Management & Load Handling

Thermal load within the ML-10 is minimal due to the absence of high-current output stages. Heat dissipation arises primarily from voltage regulators in the linear supply and bias currents in the discrete transistor stages. The large metal enclosure functions as passive thermal mass, distributing heat across the chassis rather than concentrating it in localized heat sinks. Ventilation is passive, relying on natural convection through small openings and panel seams rather than dedicated ventilation grilles. Separation between the power supply region and low-level signal circuits is typically achieved through physical placement and internal shielding partitions, limiting thermal coupling and magnetic interference. There is no indication of excessive heat stress on the enclosure, suggesting that the unit has operated within its intended electrical and thermal envelope.

IV. Assembly Method & Manufacturing Discipline

Assembly reflects mid-1970s small-batch American audio manufacturing practice. Printed circuit boards are typically mounted on metal standoffs within the steel chassis tray, providing mechanical isolation and consistent grounding references. Wiring harnesses are generally short and routed with practical separation between signal and power paths to control induced hum. RCA connectors are chassis-mounted with insulating bushings where required to maintain controlled grounding topology. Solder joints in factory assemblies from this manufacturer are usually consistent, with moderate solder volume and clean fillet formation indicative of wave or controlled manual soldering rather than hobbyist rework. Connector spacing and labeling across the rear panel demonstrate deliberate layout planning for service accessibility and signal separation.

V. Interfaces, Controls & Contact Surfaces

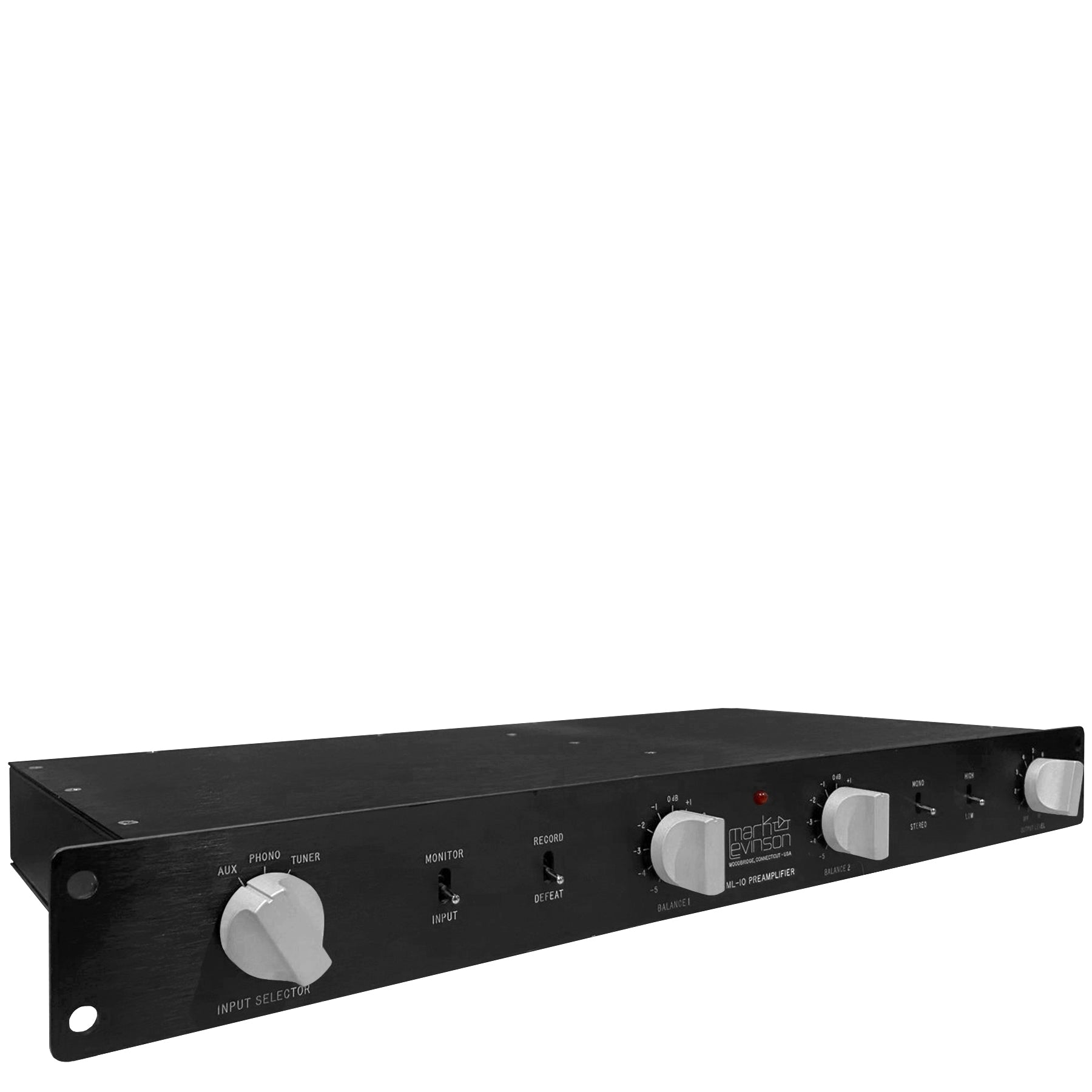

The front control surface includes a rotary input selector providing switching among AUX, PHONO, and TUNER inputs, accompanied by monitor and record routing switches typical of tape-loop equipped preamplifiers of the era. Two independent balance controls allow adjustment of channel balance in the signal path, indicating a dual-channel gain trimming approach rather than a single potentiometer balance element. Additional switches provide mono summing and high/low filter selection, features intended to address cartridge rumble and high-frequency noise from analog sources. The rear panel carries multiple pairs of RCA connectors labeled for phono, auxiliary, tuner, and tape interfaces, along with main output connections. Contact surfaces on the RCA jacks appear gold-plated, a measure used to resist oxidation in low-level signal connections. The mechanical controls utilize rotary potentiometers and toggle switches, components that generally maintain long service life but can accumulate contact oxidation after decades of use.

VI. Production Context & Market Position

The ML-10 was produced during a formative stage of Mark Levinson’s history, when the company was establishing a reputation for extremely low-noise preamplifiers and modular electronics built in small production volumes. These products occupied the upper tier of domestic hi-fi pricing and were often adopted by recording engineers and mastering facilities seeking precision control electronics outside traditional broadcast suppliers. The ML-10 targeted serious domestic systems that required high-quality phono reproduction alongside line-level sources such as tuners and tape machines. Distribution was limited relative to mass-market hi-fi manufacturers, with emphasis placed on specialist dealers and professional audio channels. Within the product hierarchy, the ML-10 functioned as a compact control preamplifier preceding later fully modular Levinson control centers.

VII. Preservation State & Intervention Evidence

Externally the unit presents with intact panel markings, unabraded control legends, and consistent anodized finishes, indicating limited mechanical wear. The control knobs and toggle switches show no evidence of deformation or replacement. Given the age of the design, electrolytic capacitors within the power supply and signal coupling networks would be approaching or exceeding their nominal service life and may require replacement to maintain original noise and stability specifications. There is no visible evidence suggesting extensive modification, although internal inspection would be required to confirm whether capacitors, transistors, or relay components have been replaced during servicing. Plastic components appear stable with no visible embrittlement or UV degradation. Continued operation is plausible provided the power supply capacitors and contact surfaces are maintained within specification.

VIII. Market Standing & Value Estimation

Early Mark Levinson preamplifiers maintain a stable secondary market presence due to the manufacturer’s reputation for disciplined circuit design and limited production volumes. Units in functional condition typically trade within a range of approximately 3,500 to 5,500 USD depending on service history, cosmetic condition, and completeness of associated accessories or documentation. Valuation reflects the engineering significance of the design, the brand’s standing within high-end audio history, and the continued usability of the preamplifier in modern analog playback systems. Liquidity remains strongest among collectors and enthusiasts focused on early high-end American audio equipment. Replacement cost for a modern preamplifier of similar build quality and low-noise phono capability would exceed the typical resale price, but the ML-10’s value remains tied primarily to its historical engineering context and serviceable discrete architecture.
