Multi-Louver Pendant Luminaire, Ventilation Cage, Mid-1960s

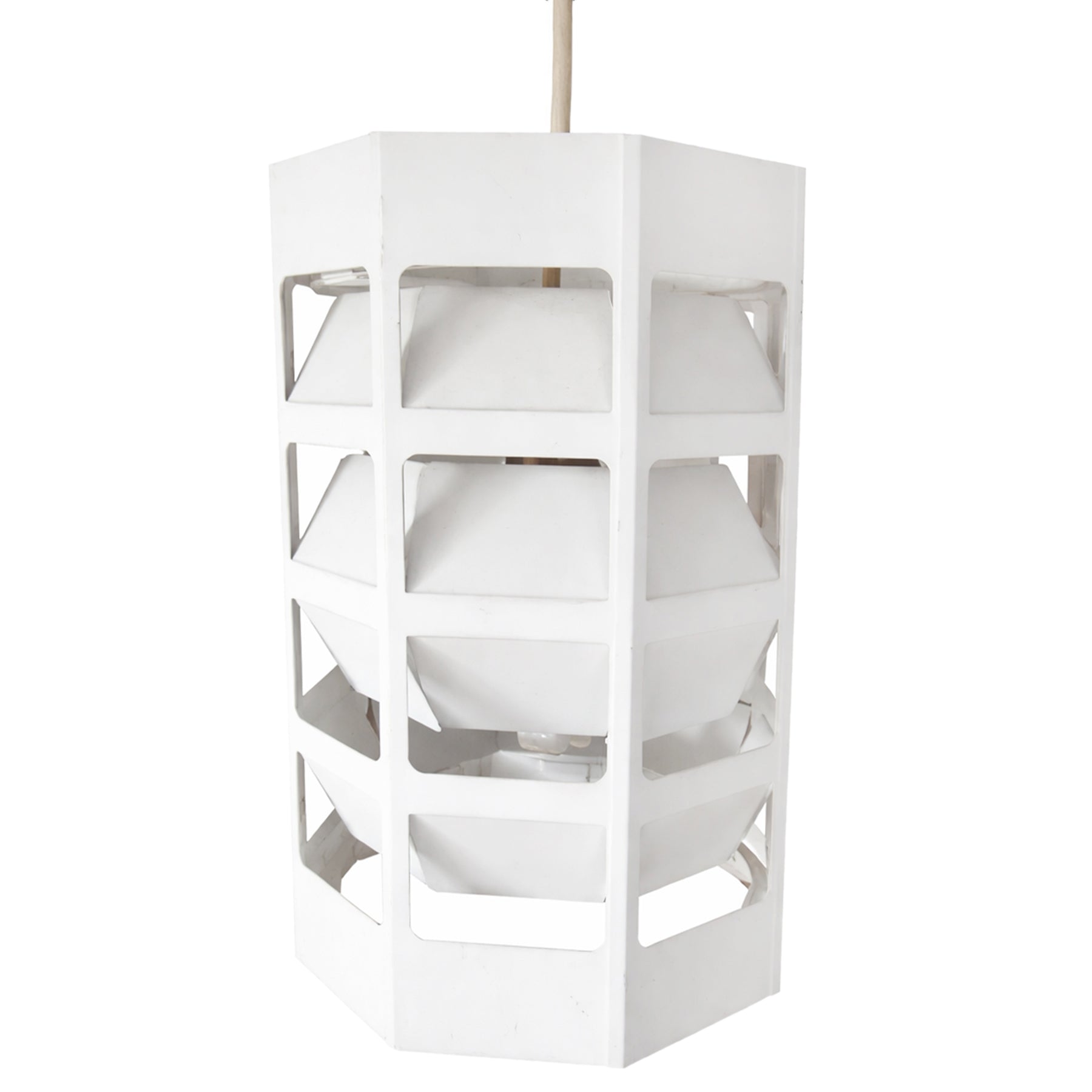

This suspended luminaire is a Louis Poulsen pendant constructed around an octagonal steel cage with integrated internal louvers designed for glare reduction and convective heat management. The fixture appears to originate from the mid-1960s period of Danish architectural lighting production when layered shielding systems were used to control light distribution from exposed incandescent sources. The structure is fabricated primarily from folded sheet steel components assembled into a ventilated lantern form surrounding a central lamp holder suspended from a cloth-insulated power cord. The internal optical structure relies on angled baffle plates mounted behind the outer cage apertures to prevent direct view of the lamp filament while allowing controlled lateral emission. The design reflects Louis Poulsen’s engineering emphasis on glare suppression through geometric shielding rather than diffusing glass enclosures.

I. Primary Materials & Structural Integrity

The outer structure consists of pressed and folded steel sheet panels forming an octagonal cage. Each vertical segment contains rectangular apertures backed by angled internal baffle plates fabricated from thinner gauge steel. The baffles are positioned to redirect light laterally while shielding direct lamp visibility. Structural rigidity is provided by the folded geometry of the cage panels and by an internal circular steel ring that stabilizes the assembly and provides mounting points for the internal reflector and baffle framework. The central structural element supporting the socket is a stamped steel cross brace attached to the circular internal ring. The lamp holder appears to be brass or brass-plated metal with a ceramic or heat-resistant insulating sleeve. The fixture maintains structural integrity, with no visible distortion of the cage geometry or deformation of the internal mounting structure. Minor finish failure at lower panel edges exposes underlying dark substrate consistent with steel beneath the coating.

II. Fabrication Method & Assembly Logic

The luminaire demonstrates industrial sheet-metal fabrication typical of mid-century Scandinavian lighting manufacture. The outer cage panels are formed by press bending steel sheet to create rigid vertical frames with integrated rectangular openings. These panels are assembled into an octagonal cylinder using folded seams or concealed spot welds. Internal louver plates are individually cut and bent to a consistent angle before being secured to the cage interior, likely through small tabs or welded joints. The internal circular ring provides alignment and serves as the main load-bearing structure linking the cage walls with the central socket mount. The cross brace spanning this ring is stamped from steel sheet and mechanically fixed in place, forming the structural support for the socket assembly and cord entry point. This layered assembly method allows separate fabrication of optical baffles, structural cage, and electrical mount before final integration.

III. Electrical System & Wiring Architecture

The electrical architecture centers on a single Edison screw socket mounted to a brass or brass-plated socket body. The socket is attached to the stamped steel cross brace and suspended directly beneath the power cord entry point. The cord itself is a braided textile-covered conductor typical of mid-century European pendant lighting, indicating an earlier electrical insulation system predating widespread PVC jacketed cords. The socket assembly includes a white insulating collar or adapter that appears to accommodate a modern compact fluorescent replacement lamp rather than the incandescent bulb originally specified for the fixture. The internal wiring path runs directly through the cord to the socket with no integrated switch or transformer components within the luminaire body. No visible grounding conductor is present, which was common in fixtures of this period designed for two-wire electrical systems.

IV. Surface Treatment & Finish Stratigraphy

All visible metal surfaces are coated in a matte white paint finish applied over the steel substrate. The finish appears to be a sprayed enamel rather than later powder coating technologies, consistent with manufacturing practices of the 1960s. Localized cracking and flaking of the coating are visible along the lower perimeter of the cage where handling and environmental exposure likely concentrated mechanical stress. Beneath these areas the darker base metal is visible, confirming the steel substrate beneath the coating. Surface accumulation of dust and mild oxidation marks around internal structural components indicate normal age-related wear rather than active corrosion. The internal metal ring exhibits light oxidation consistent with unprotected steel or lightly coated steel surfaces within enclosed fixture interiors.

V. Optical Design & Light Distribution Logic

The luminaire relies on geometric shielding rather than translucent diffusion to control glare. Light from the central lamp radiates outward but is intercepted by angled baffle plates positioned behind each rectangular aperture of the outer cage. These louvers block direct lines of sight to the lamp filament while allowing reflected or indirect light to exit the fixture horizontally. The open top and bottom geometry also allow vertical light escape and facilitate convective airflow around the lamp. This design reduces glare at eye level while maintaining sufficient ambient illumination in surrounding space. The absence of glass diffusers keeps thermal buildup low and simplifies maintenance while maintaining the fixture’s emphasis on directional shielding.

VI. Production Context & Market Position

Louis Poulsen developed a reputation during the mid-twentieth century for technically disciplined lighting systems grounded in glare control research associated with Danish lighting design traditions. Fixtures employing layered shielding and geometric baffle structures formed a core part of the company’s architectural lighting portfolio during the 1950s and 1960s. This pendant reflects the functionalist design language associated with Scandinavian modernism, where visual simplicity masked a deliberate optical engineering strategy. Such fixtures were commonly specified for institutional interiors, stairwells, circulation areas, and residential spaces seeking controlled illumination without exposed bulb glare. Production scale was industrial but targeted toward architectural quality rather than low-cost consumer lighting.

VII. Preservation State & Intervention Evidence

The fixture remains structurally sound with intact cage geometry and undistorted baffle alignment. Paint loss at the lower edge indicates finish fatigue typical of aged enamel coatings but does not currently expose active rust formation. The internal steel ring shows mild oxidation consistent with long-term environmental exposure but no structural degradation. The cloth-insulated cord appears original and remains visually intact, though electrical insulation condition cannot be verified without testing. The presence of a compact fluorescent lamp in a socket adapter suggests later adaptation for modern lighting technologies but does not appear to require modification of the original socket assembly. No evidence of rewiring or structural modification is visible.

VIII. Market Standing & Value Estimation

Louis Poulsen fixtures from the 1960s occupy a stable position within the Scandinavian design secondary market, though models outside the company’s most recognized series command moderate rather than premium prices. Condition of original finish and electrical components strongly influences value. Examples with intact structural elements but visible paint loss typically trade within the range of approximately 1,000 to 1,300 EUR depending on size, condition of the enamel coating, and presence of original wiring. Demand comes primarily from collectors of Scandinavian modern lighting and from architectural restoration projects seeking period-appropriate fixtures. Replacement cost for an equivalent contemporary Louis Poulsen architectural pendant would be substantially higher due to modern production costs and updated compliance standards.
