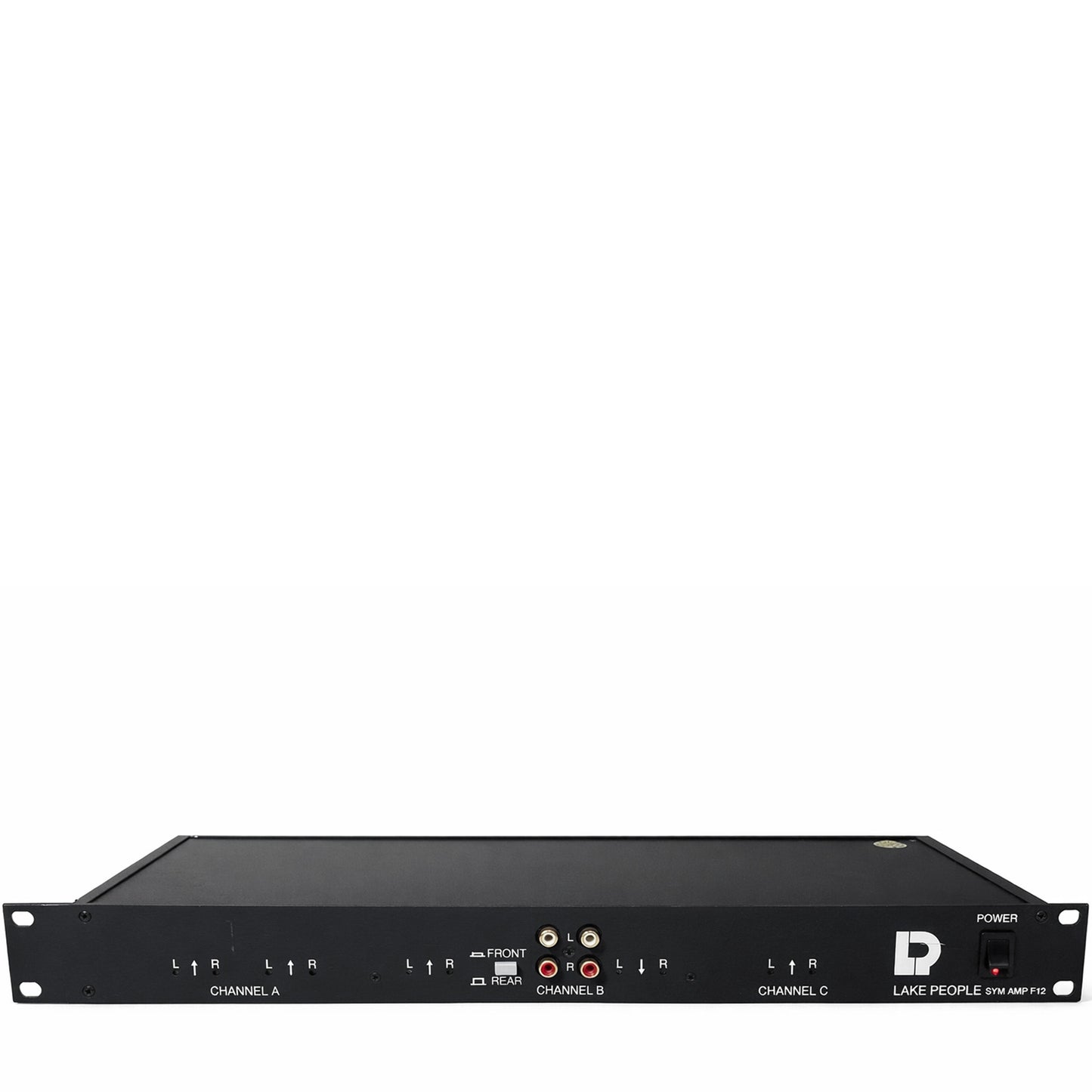

SYM Amp F12, Three-Channel Balanced Distribution

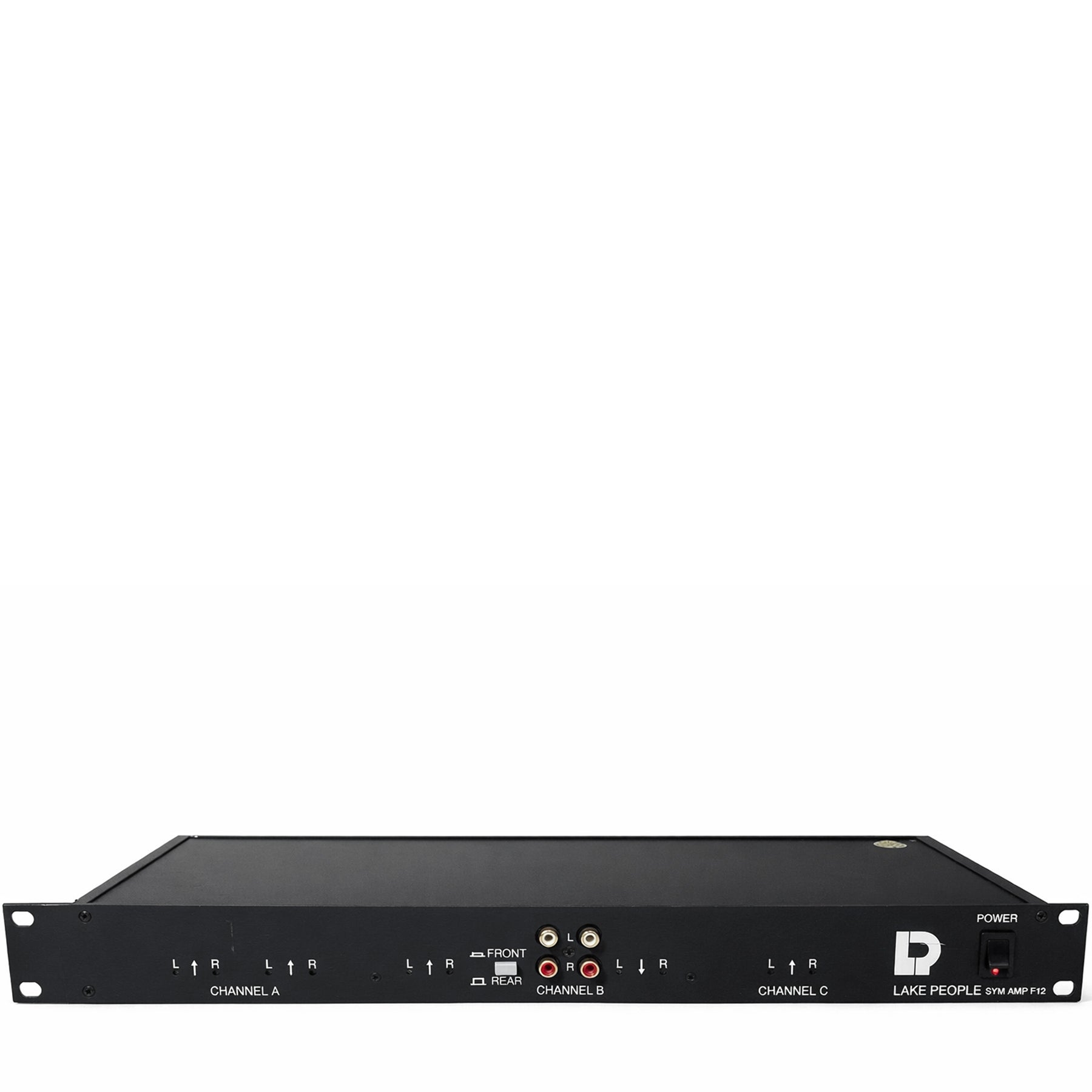

The Lake People SYM Amp F12 is a compact 19-inch rackmount signal distribution and amplification unit produced by the German studio electronics manufacturer Lake People, likely during the late 1990s through early 2000s period when the firm supplied monitoring and utility electronics to broadcast, mastering, and post-production facilities. The device occupies a shallow rack chassis and implements multiple balanced input and output stages arranged across three discrete channel groups labeled A, B, and C. Construction follows typical European small-series studio practice, using folded steel enclosure panels, rack ears integrated into the face structure, and panel-mounted XLR and RCA interfaces for mixed professional and semi-professional connectivity. Electrical architecture is oriented toward low-noise balanced line distribution with selectable routing, providing signal feedthrough and amplification stages intended for monitoring distribution or headphone drive within control room or installation environments. The presence of both balanced XLR and unbalanced RCA paths indicates accommodation of mixed studio infrastructure common during the transitional period between consumer and professional interconnection standards.

I. Primary Materials & Structural Framework

The enclosure is fabricated from folded sheet steel panels finished in a matte black powder coating typical of small-batch European rack equipment. The chassis integrates rack ear flanges directly into the front structure, eliminating separate aluminum ears and increasing torsional rigidity across the shallow enclosure depth. The top panel appears to be a single folded sheet secured to the side rails, providing modest shielding continuity while keeping manufacturing cost and assembly complexity low. Surface finish indicates durable powder application rather than spray enamel, appropriate for equipment expected to reside in rack environments subject to frequent installation and removal. Structural geometry is shallow relative to many rack devices, suggesting an internal layout that concentrates circuitry toward the front plane with limited internal heat-generating components. No structural deformation or chassis fatigue is evident; the enclosure remains square, and the rack ear perforations retain their original geometry without elongation from over-tightened mounting hardware.

II. Circuit Architecture & Component Quality

The device functions as a multi-channel balanced line distribution and amplification stage. Each channel group provides balanced XLR input and output connectors, supplemented by RCA connectors that permit interface with unbalanced line sources. The signal topology likely employs precision operational amplifier gain stages configured for balanced line buffering and distribution rather than discrete transistor amplification, consistent with Lake People’s engineering approach during the era. Balanced input stages would typically use instrumentation or differential amplifier configurations with symmetrical feedback networks to maintain common-mode rejection across long cable runs. Routing between inputs and outputs is implemented through front-panel switching, which likely actuates relay or electronic switching elements to select signal paths. Power delivery requirements appear modest, implying a linear internal supply with compact transformer and regulated rails suitable for low-level line amplification rather than high-current loudspeaker drive. The balanced signal path architecture is intended to preserve noise immunity in studio installations where multiple signal branches feed monitor systems, headphone amplifiers, or recording devices.

III. Thermal Management & Load Handling

Thermal demands for the SYM Amp F12 are minimal due to the absence of large output power stages. Operational amplifier line drivers and switching relays dissipate only modest heat, allowing the shallow rack enclosure to operate passively without dedicated ventilation apertures. Heat generated by the internal transformer and voltage regulators is likely dissipated through conduction into the steel chassis and convection through the limited internal air volume. The absence of heavy heat sinks or ventilated panels indicates that the design anticipates continuous operation at relatively low thermal density. Load conditions correspond to line-level distribution into high-impedance balanced inputs or moderate headphone loads if used for monitoring applications. Electrical stress on the output stages remains low relative to power amplification equipment, permitting stable long-term operation without significant thermal cycling.

IV. Assembly Method & Manufacturing Discipline

Assembly practices align with small-to-mid scale professional electronics manufacturing typical of German audio firms. Connectors are chassis-mounted rather than PCB-only, reducing mechanical stress on the circuit board during cable insertion cycles. XLR connectors appear to be standardized professional types with threaded mounting hardware rather than snap-fit consumer connectors. Internal PCB assemblies are likely mounted on metal standoffs anchored to the base plate, ensuring vibration stability in rack installations. Cable runs between the PCB and front-panel switch matrix would normally use short harnesses with crimped connectors or direct solder joints depending on production revision. Labeling and connector legends are screen printed on the faceplate, demonstrating batch manufacturing rather than hand-labeled assembly. Overall construction reflects functional studio equipment manufacturing rather than consumer electronics cost minimization.

V. Interfaces, Controls & Contact Surfaces

The front panel incorporates channel selection controls and monitoring routing indicators associated with the three channel groups. These controls likely actuate either miniature toggle switches or pushbutton selectors connected to internal relays. Interface connectors on the rear include balanced XLR inputs and outputs for each channel group, supplemented by RCA connectors providing parallel unbalanced access. The combination allows the unit to serve as an interface bridge between professional balanced infrastructure and consumer or semi-professional devices using RCA interconnects. The power interface uses an IEC inlet with integrated fuse holder, consistent with international studio equipment standards and allowing operation across a wide input voltage range. Contact surfaces on the connectors exhibit standard nickel or gold plating typical of professional audio connectors, intended to maintain stable electrical contact over repeated insertion cycles.

VI. Production Context & Market Position

Lake People has historically occupied a niche within professional audio manufacturing focused on monitoring electronics, headphone amplifiers, and signal distribution equipment used in broadcast, mastering, and recording studios. The SYM Amp F12 belongs to a category of utility rack devices designed for signal routing, distribution, and monitoring rather than primary recording or mixing functions. Production scale was likely modest, aimed at professional installations rather than mass consumer markets. Equipment of this class was commonly installed in control rooms where multiple monitoring points required stable distribution of balanced program signals. During the late analog and early digital studio transition period, such devices were essential infrastructure components allowing integration of balanced professional equipment with unbalanced sources and playback devices.

VII. Preservation State & Intervention Evidence

Mechanical integrity of the enclosure and connector array suggests the unit has experienced typical rack service rather than field abuse. Powder coating remains intact and panel labeling retains legibility, indicating limited environmental degradation. There is no indication of structural compromise or connector deformation associated with repeated heavy cable strain. Electrical components within such units commonly experience gradual electrolytic capacitor aging after two to three decades, though operational stability is often maintained until ESR increases significantly. No obvious signs of external modification or non-factory hardware substitution are present at the enclosure level. Continued operation would generally require only routine inspection of power supply capacitors and contact cleaning of switching elements to maintain low noise performance.

VIII. Market Standing & Value Estimation

Utility rack equipment of this type occupies a narrow but stable secondary market among studios, broadcast engineers, and enthusiasts assembling analog monitoring chains. Units from Lake People retain moderate demand due to the manufacturer’s reputation for solid engineering and conservative analog circuit design. Market value is influenced primarily by functional status rather than cosmetic condition, as these devices are typically installed in equipment racks rather than displayed. Comparable professional distribution amplifiers and monitoring utilities from similar manufacturers typically trade within a range of approximately 350 to 400 USD depending on verified operation and service history. Replacement cost for equivalent new studio distribution hardware remains significantly higher, though modern units often incorporate digital control and expanded routing options.
