Modular Storage Unit, Injection-Molded Polymer Stacking System

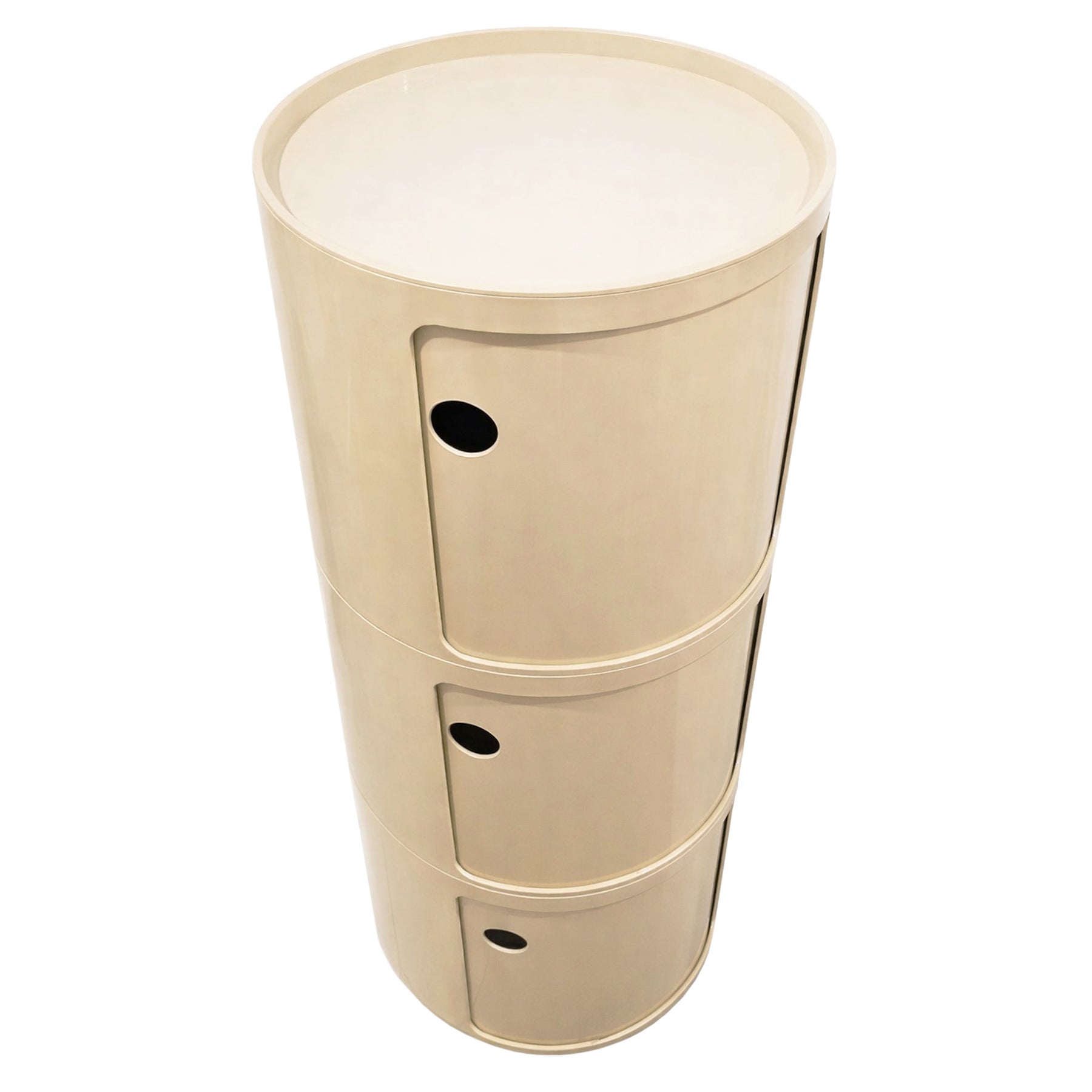

Cylindrical vertical storage unit composed of three stacked modules with hinged access doors and a removable top tray surface, attributable to Kartell and consistent with late 20th to early 21st century industrial production, estimated circa 1999–2015. Overall dimensions approximately 42 cm in diameter and 112 cm in height. Fabricated in injection-molded thermoplastic, most likely ABS or polypropylene, with integral color rather than applied coating. Structural system relies on stacked interlocking cylindrical shells transferring vertical load through continuous perimeter walls rather than internal framing. This configuration aligns with Kartell’s post-1990 emphasis on rotational symmetry, modular repeatability, and polymer engineering as primary structural expression rather than concealed support.

I. Polymer Composition & Load-Bearing Shell Structure

The unit is constructed entirely of molded polymer components, with each cylindrical module functioning as both enclosure and structural column. The continuous curved sidewalls form the primary load path, distributing vertical compression evenly around the circumference. There is no independent internal frame; structural stability derives from wall thickness, circular geometry, and full perimeter contact between stacked units. The polymer exhibits uniform coloration through the material mass, indicating pigmented resin rather than post-production paint. The wall thickness appears consistent across modules, suggesting controlled injection parameters rather than variable shrinkage. No distortion, creep, or radial deflection is evident in the stacked configuration, indicating adequate material rigidity for its intended domestic storage load. Minor surface irregularities appear consistent with polymer cooling behavior rather than stress fracture.

II. Fabrication Method & Industrial Production Discipline

All principal components are injection molded using steel tooling, evidenced by uniform radiused corners, consistent edge returns, and repeatable geometry across modules. The cylindrical shells and doors display smooth interior and exterior surfaces typical of high-pressure injection molds with polished cavities. Parting lines are controlled and integrated along less visually dominant transitions, suggesting deliberate tooling design rather than cost-reduced mold segmentation. The repeated modular geometry indicates series production rather than limited fabrication. Dimensional consistency between tiers supports automated manufacturing with calibrated shrink compensation. There is no evidence of secondary machining beyond trimming and hardware insertion. The production logic is industrial and optimized for repeatability.

III. Assembly Logic & Integrated Hardware

Each cylindrical tier appears to stack via recessed lip and collar interfaces that register concentrically, preventing lateral drift. Vertical load is transferred directly from upper module to lower through continuous circular bearing surfaces rather than discrete fasteners. Doors are hinged through concealed polymer pivot pins integrated into the molded shell, eliminating visible metal hinges. The circular finger apertures are cut or molded cleanly and provide functional access without applied hardware. This reduces component count and corrosion risk while maintaining visual continuity. No external mechanical fasteners are visible, indicating snap-fit or internally captured assembly. The engineering prioritizes ease of assembly and disassembly without structural compromise.

IV. Surface Finish & Polymer Aging Behavior

Surface finish is satin to semi-gloss, consistent with molded thermoplastic released from polished tooling. There is no evidence of repainting; coloration is integral and uniform across interior and exterior surfaces. Minor scuffs at door edges and contact zones are consistent with expected polymer abrasion under domestic use. There is no significant discoloration, suggesting limited UV degradation. The material shows no brittleness, cracking, or stress whitening around hinge points, indicating preserved polymer flexibility. Interior surfaces maintain similar sheen to exterior, supporting original condition rather than refinishing or resurfacing.

V. Typology & Design Lineage

This object functions as a vertical modular storage column, combining cabinet and open shelf elements within a continuous cylindrical envelope. The formal language is aligned with late modern and postmodern industrial design in which geometry is simplified to primary forms and structural logic is visually unified. The use of stacked cylindrical modules reflects a lineage of Italian polymer experimentation associated with late 20th-century domestic storage systems. The circular plan eliminates corners, distributing load evenly and softening spatial intrusion in compact interiors. Ergonomically, the door height per module corresponds to seated and standing reach zones, suggesting domestic utility rather than contract office scale.

VI. Production Context & Market Position

Attributed to Kartell, a manufacturer known for industrial-scale polymer furniture production in Italy, this unit likely formed part of an open production line rather than limited edition output. Estimated production period circa early 2000s, when rotational forms and modular stacking systems were prevalent within the brand’s catalog. The economic positioning would have been mid-range contemporary domestic furniture, emphasizing design-forward plastic engineering at accessible price points rather than handcrafted exclusivity. Intended market: residential interiors, secondary storage, or informal office environments. Its legitimacy derives from industrial tooling investment and manufacturing precision rather than material luxury.

VII. Preservation State & Intervention Evidence

Structural alignment remains true, with modules stacking concentrically and without visible tilt. Door planes appear flush within molded recesses, indicating hinge integrity and absence of warping. There is no indication of replaced components, non-original hardware, repainting, or structural reinforcement. Surface wear appears limited to light abrasion consistent with routine use. No stress cracking at hinge pivots or load-bearing collars is observed. The polymer remains stable; environmental sensitivity would primarily involve prolonged UV exposure or excessive point loading beyond intended domestic storage weight.

VIII. Market Standing & Value Estimation

Current secondary market valuation estimated in the range of 550–750 EUR depending on condition, color desirability, and completeness of original components. Units in consistent coloration and without UV fading command the upper end of the range. Liquidity is moderate within contemporary design resale platforms, particularly among buyers seeking authentic Kartell production rather than generic plastic storage. Replacement cost for comparable new Kartell modular storage would likely exceed secondary market value, though resale remains constrained by volume and shipping considerations. Intrinsic material value is low; market standing is derived from manufacturer attribution, modular clarity, and durable industrial execution rather than rarity.
