Wan S Suspension, Cast Aluminum Downlight with Glass Lens Assembly

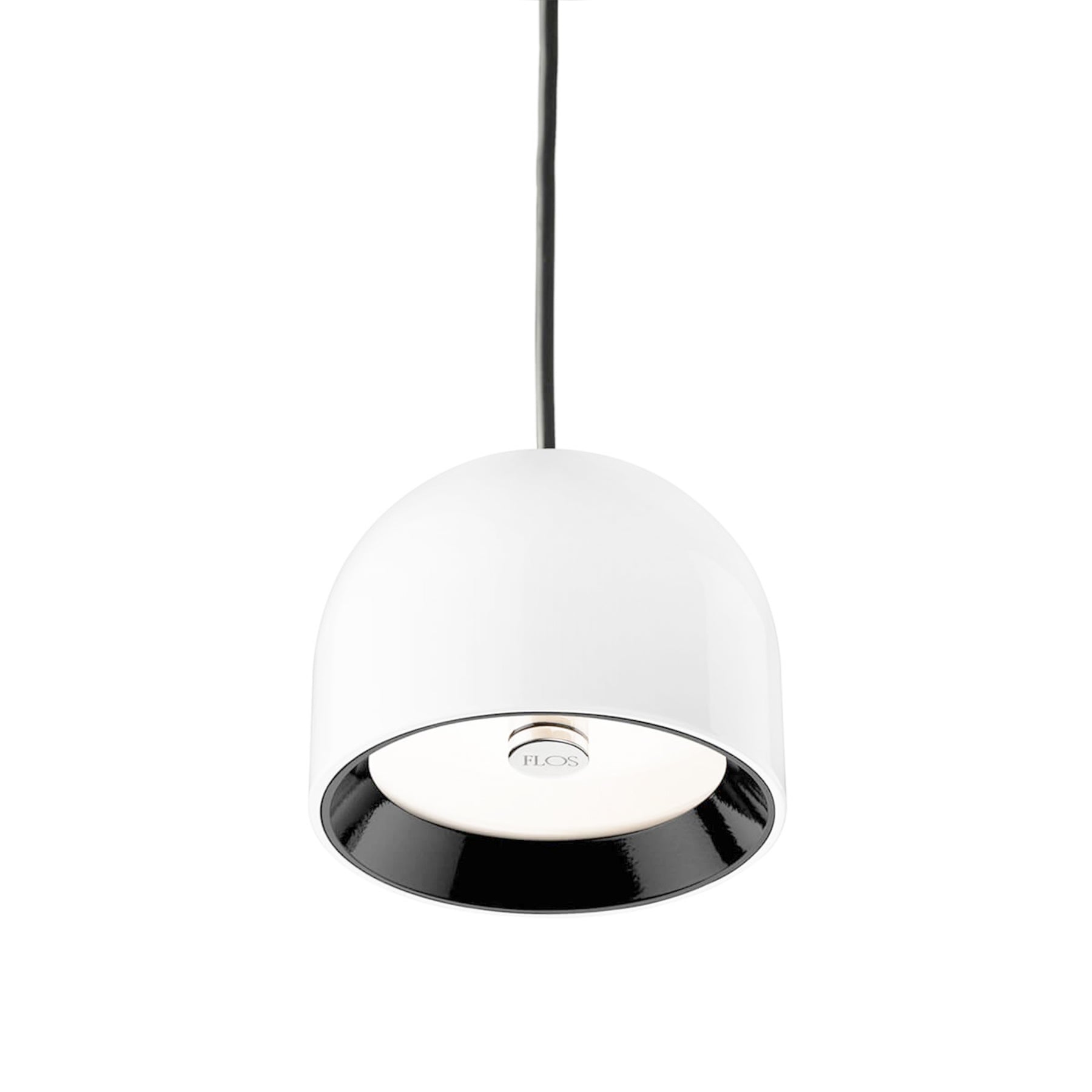

This suspension luminaire is the Wan S model produced by Flos and designed by Johanna Grawunder in 2005. The fixture is constructed around a compact hemispherical housing fabricated from cast aluminum and finished with a white exterior coating. Illumination is provided by a single G9 halogen capsule mounted within a recessed optical chamber and sealed beneath a circular safety glass lens. The design is engineered as a direct downlight, emphasizing controlled beam projection rather than ambient diffusion. The fixture belongs to the early twenty-first century generation of architectural decorative lighting where small-format halogen luminaires were adapted for domestic suspension use.

I. Primary Materials & Structural Integrity

The main housing consists of a hemispherical shell cast from aluminum alloy, providing both structural rigidity and effective thermal conduction for the internal halogen lamp. The casting thickness appears sufficient to maintain dimensional stability while dissipating heat generated by the compact halogen source. The lower opening is fitted with a machined circular ring that retains a tempered glass lens protecting the lamp chamber. The inner optical assembly incorporates a metal reflector disc positioned above the glass lens. Suspension is achieved through a flexible electrical cable anchored to the upper housing. The fixture body shows no evidence of deformation, cracking, or mechanical stress, and the aluminum structure remains stable under the modest thermal load associated with a 40-watt G9 lamp.

II. Fabrication Method & Assembly Logic

The hemispherical body is produced through aluminum casting followed by machining of the lower opening to achieve a precise seat for the retaining ring and glass lens. The reflector component inside the housing is fabricated from stamped metal and mounted concentrically above the lamp socket. The glass lens is secured by a threaded or snap-fit metal retaining ring integrated into the lower rim of the housing. The suspension cable enters the top of the casting through a strain-relief fitting concealed within the canopy assembly. Internal components follow a modular architecture allowing removal of the lens and reflector for lamp replacement and maintenance.

III. Electrical System & Wiring Architecture

The luminaire is designed for a single G9 halogen capsule rated up to 40 watts. The socket is mounted centrally within the aluminum housing and wired directly through the suspension cable to the ceiling canopy connection. The electrical system operates on standard European mains voltage between 220 and 250 volts. No transformer is required for this configuration because the G9 halogen lamp operates directly on line voltage. The lamp chamber is enclosed beneath a safety glass disc which prevents direct access to the bulb while protecting internal components from dust accumulation. The suspension cable functions both as mechanical support and electrical conduit.

IV. Surface Treatment & Finish Stratigraphy

The exterior of the aluminum housing is finished in a white lacquer or powder-coated coating applied over the cast metal substrate. The finish appears uniform and consistent with contemporary industrial lighting production methods. The interior reflector surfaces exhibit a contrasting darker finish, creating optical contrast that helps define the recessed light aperture. Minor contact marks may occur along the rim from handling or lamp replacement but no structural corrosion or finish delamination is evident. Aluminum beneath the coating remains protected from oxidation.

V. Optical Design & Light Distribution Logic

The optical system is engineered as a direct downlight with controlled beam geometry. The G9 halogen lamp is positioned behind a circular reflector which directs light downward through the glass lens opening. The internal reflector reduces lateral glare by shielding the bulb from oblique viewing angles while concentrating the beam within a defined cone. The glass lens further diffuses and protects the lamp while maintaining clarity of the downward light projection. The resulting beam angle approximates eighty degrees, providing focused illumination suitable for localized lighting tasks or accent lighting over surfaces.

VI. Production Context & Market Position

Flos operates within the upper tier of contemporary design lighting manufacturers, producing architecturally oriented fixtures in collaboration with designers. The Wan series represents an example of early twenty-first century minimalist suspension lighting where compact halogen sources were incorporated into small sculptural housings. Designed by Johanna Grawunder, the fixture aligns with a design period emphasizing reduction of form while maintaining engineered light control. The model was marketed primarily within the residential and hospitality design sectors rather than heavy architectural specification markets.

VII. Preservation State & Intervention Evidence

The fixture appears intact with its original housing, lens assembly, and suspension cable. The aluminum shell shows no signs of structural damage or heat distortion. The glass lens remains in place and appears free from cracking or replacement inconsistencies. Electrical architecture is unchanged from the manufacturer’s specification, with the original G9 socket configuration still present. The fixture remains compatible with both halogen capsules and modern G9 LED retrofit lamps, allowing continued operation without modification of the internal wiring.

VIII. Market Standing & Value Estimation

The Wan S suspension remains in periodic production and circulation through design lighting retailers, which moderates secondary market values. Used examples typically sell within a range of approximately 180 to 220 EUR depending on condition and completeness of the canopy assembly. Liquidity exists primarily within contemporary interior design resale markets rather than specialized vintage lighting collecting. Because the model remains recognizable within the Flos product line, resale demand is stable but tied primarily to functional lighting needs rather than historical rarity.
