Saturn Wall Luminaire, Late-1980s

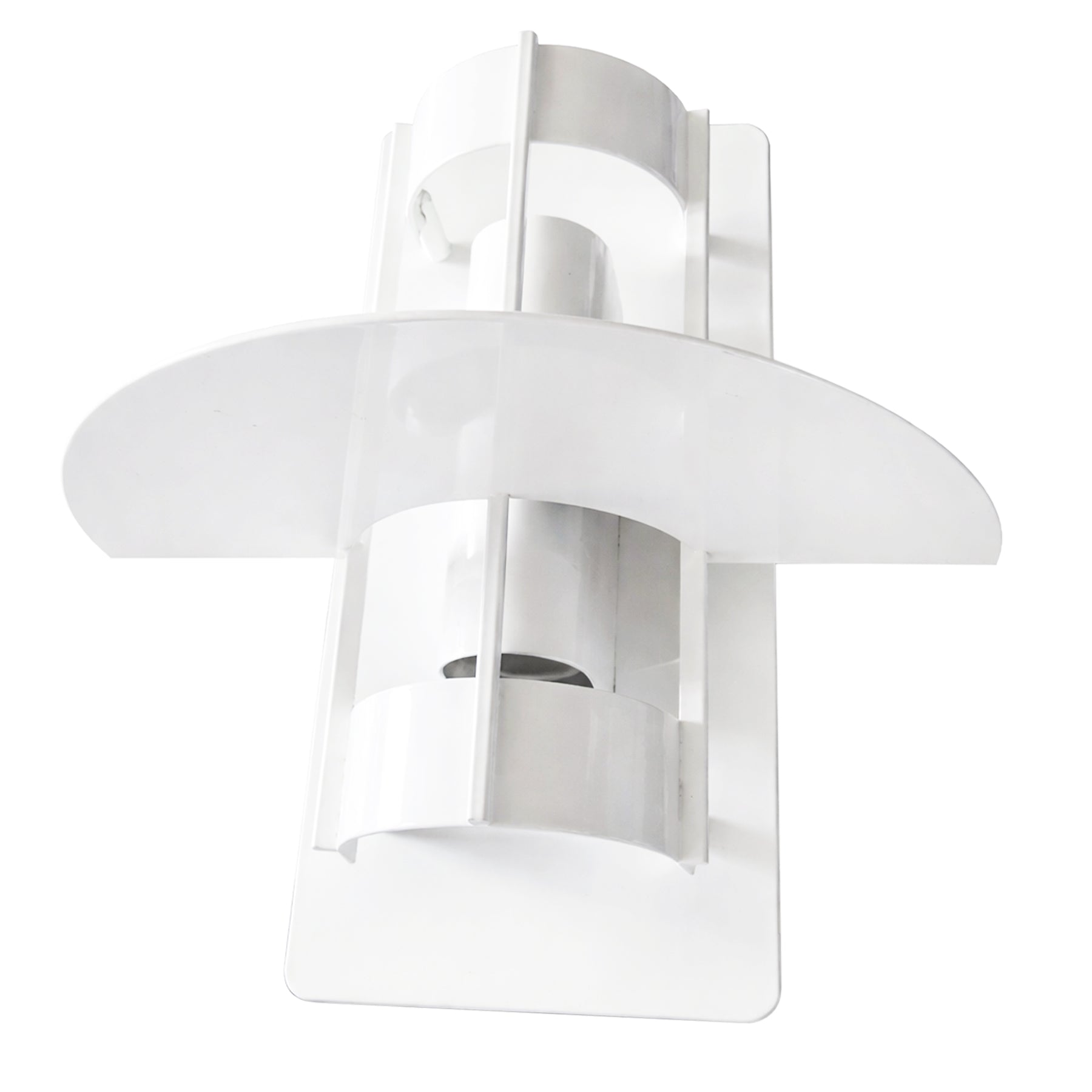

This fixture is a wall-mounted luminaire produced by Louis Poulsen and attributed to designer Joachim Lepper, introduced during the 1980s and manufactured into the early 1990s. The construction consists of powder-coated steel reflector plates arranged around a cylindrical lamp chamber to control glare and redirect illumination. Manufacturer labeling identifies the fixture as Type 32070 with a rated electrical capacity of two lamps at 100 watts each. The design relies on layered reflector geometry to shield the light source while projecting indirect and lateral illumination suitable for architectural interiors. This configuration reflects Louis Poulsen’s long-standing optical design philosophy, emphasizing controlled light distribution rather than direct exposure of the lamp. The luminaire was produced for architectural and commercial installations where glare reduction and durable industrial fabrication were prioritized.

I. Primary Materials & Structural Integrity

The fixture is constructed primarily from formed sheet steel components finished in a white powder-coated surface. The main wall plate and rear housing are fabricated from moderate-gauge steel sufficient to support the weight of the reflector assembly and electrical components without distortion. A galvanized steel mounting plate is integrated within the rear cavity to provide a rigid anchor point for wall installation and electrical junction attachment. The reflector assembly consists of curved steel panels forming a cylindrical chamber around the lamp position, combined with a horizontal reflector plate projecting outward from the centerline of the fixture. The curved reflectors appear to be rolled sheet steel with consistent curvature rather than cast elements. The steel vertical divider plate provides both structural reinforcement and optical shielding. Structural rigidity is maintained through folded steel edges and mechanical fastening points. No evidence of structural deformation or fatigue is present in the reflector panels or mounting structure.

II. Fabrication Method & Assembly Logic

The luminaire follows a modular industrial fabrication strategy typical of architectural lighting produced in medium-scale manufacturing runs. Steel panels are cut from sheet stock and formed using rolling and press-brake bending processes to achieve the curved and folded reflector shapes. The cylindrical inner reflector appears to be composed of multiple formed panels secured to a central support spine. The horizontal reflector plate is a separate stamped steel component attached to the central spine and outer reflector housing. The rear wall plate and internal mounting bracket are assembled through machine screws and welded reinforcement tabs. Fasteners remain visible at service access points, indicating the fixture was designed to allow lamp replacement and maintenance without disassembling the entire structure. The assembly logic prioritizes serviceability and standardized parts rather than concealed decorative joinery.

III. Electrical System & Wiring Architecture

The manufacturer label identifies the luminaire as Type 32070 rated for two lamps at 100 watts each, indicating an incandescent socket configuration typical of wall-mounted architectural luminaires of the period. The sockets are mounted within the cylindrical reflector chamber and are likely ceramic or high-temperature thermoplastic bodies designed to tolerate the heat generated by incandescent lamps. Electrical wiring appears to follow conventional European standards with insulated conductors routed through the rear housing to the wall junction box. The galvanized mounting plate incorporates rubber-insulated wire pass-through points that prevent abrasion at entry points. Grounding is achieved through the steel body and mounting plate. The absence of ballast or transformer components confirms a direct line-voltage incandescent system. The wiring architecture appears consistent with factory installation rather than later rewiring.

IV. Surface Treatment & Finish Stratigraphy

All visible steel components are finished with a uniform white powder coating. This finish is typical of Louis Poulsen architectural fixtures due to its resistance to abrasion and ability to maintain optical neutrality within reflector surfaces. The coating appears evenly applied across the reflector panels, vertical divider, and outer mounting plate. Minor edge wear and small abrasions are present at exposed edges where installation or handling occurs. The galvanized mounting plate retains its original zinc coating, displaying the characteristic crystalline spangle typical of hot-dip galvanization. No evidence of repainting or secondary coating layers is visible. Oxidation is limited to superficial dulling of exposed galvanized surfaces and does not indicate active corrosion.

V. Optical Design & Light Distribution Logic

The optical system relies on layered reflector geometry to conceal the lamp while distributing light indirectly. The cylindrical reflector chamber contains the lamp sources and prevents direct glare from typical viewing angles. Light emitted from the lamps is redirected outward and upward by the curved steel reflectors before interacting with the horizontal reflector plate. This horizontal plate interrupts direct downward emission while redirecting a portion of the light outward into the surrounding space. The vertical divider plate blocks direct line-of-sight to the lamp when viewed from lateral positions. This layered configuration produces a combination of indirect ambient illumination and controlled lateral spill. The system reflects Louis Poulsen’s design tradition in which reflector geometry determines the visual comfort of the luminaire.

VI. Production Context & Market Position

The Saturn wall luminaire belongs to Louis Poulsen’s architectural lighting catalog developed during the 1980s and early 1990s when energy-efficient incandescent and halogen luminaires were widely used in commercial interiors. Designer Joachim Lepper worked within the framework of Scandinavian industrial lighting design that emphasized optical performance and durable construction. The fixture was intended for installation in corridors, offices, institutional buildings, and hospitality interiors where wall-mounted luminaires could provide ambient lighting without glare. Production occurred at an industrial scale rather than studio fabrication. Within the architectural lighting market, Louis Poulsen occupied a premium position due to its long-standing association with Danish modern lighting design and engineering-driven optical systems.

VII. Preservation State & Intervention Evidence

The luminaire remains structurally intact with all principal reflector elements present and aligned. The mounting plate, service fasteners, and housing screws appear original and show no evidence of replacement. Surface wear is limited to minor abrasions typical of installation handling. The galvanized mounting bracket remains free of corrosion and retains its structural integrity. Electrical pass-through grommets remain installed and intact, suggesting the fixture has not undergone significant rewiring intervention. The sockets are presumed original based on mounting hardware consistency. The fixture appears suitable for continued operation provided the internal wiring insulation and sockets remain electrically sound and compliant with local standards.

VIII. Market Standing & Value Estimation

Wall-mounted luminaires from Louis Poulsen’s 1980s architectural catalog occupy a moderate segment of the secondary design market. Individual fixtures of this type typically trade between approximately 600 and 850 USD depending on condition, completeness, and presence of original mounting hardware. Value is supported primarily by the manufacturer’s reputation and the clarity of the optical design rather than rarity. Fixtures from this production period were manufactured in substantial quantities for architectural specification, which stabilizes supply within the secondary market. Replacement cost for an equivalent contemporary architectural luminaire from Louis Poulsen would be significantly higher due to modern LED engineering and updated certification requirements. The resale market is strongest among architects, lighting designers, and collectors of Scandinavian industrial lighting.
