GS-X Mini Headphone Amplifier, Fully Balanced Discrete Class A Headphone and Line Preamplifier

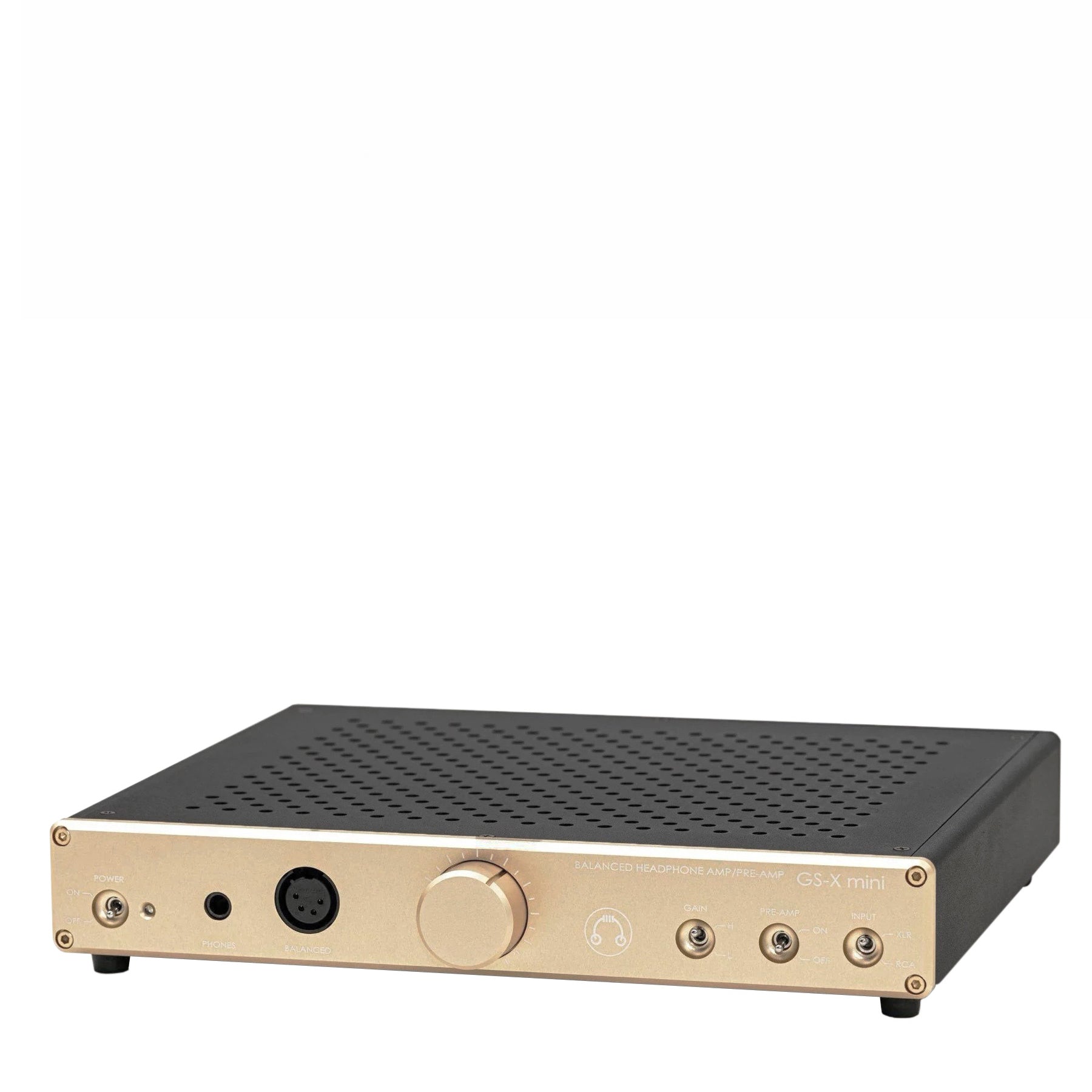

This is a HeadAmp GS-X Mini balanced headphone amplifier and line-level preamplifier manufactured in the United States. Production began in the late 2010s as a compact derivative of the earlier GS-X reference amplifier architecture, retaining fully discrete Class A topology in a smaller chassis format. The enclosure is a steel and aluminum assembly with perforated ventilation, housing a dual-channel discrete amplification stage capable of balanced or single-ended signal routing. Inputs include both XLR balanced and RCA single-ended connections, with corresponding preamplifier outputs provided on the rear panel. The design emphasizes symmetrical signal architecture, discrete transistor gain stages, and high-bias Class A operation intended to maintain linearity under low-impedance headphone loads.

I. Primary Materials & Structural Framework

The chassis is a folded steel enclosure with a perforated top panel designed for passive convection cooling. The front panel is machined aluminum finished in anodized gold tone, secured with corner fasteners that clamp the panel to the steel frame. Structural rigidity is moderate, sufficient for desktop installation rather than rack-mount structural loading. The top plate perforation pattern indicates deliberate airflow planning to dissipate heat from internally biased Class A stages. Rubber isolation feet provide minimal mechanical decoupling from desk surfaces. The rear panel is also steel, drilled for balanced and unbalanced connectors with consistent spacing and threaded fastener retention. No visible structural deformation or corrosion is present. The enclosure design prioritizes ventilation and ease of assembly rather than cosmetic concealment of hardware.

II. Circuit Architecture & Component Quality

The GS-X Mini employs a fully discrete balanced amplification topology derived from Kevin Gilmore’s Dynalo architecture, operating in Class A bias. Each channel consists of discrete transistor gain stages rather than integrated operational amplifiers, arranged in symmetrical differential pairs for balanced signal propagation from input to output. The circuit maintains a dual-mono layout internally, with independent left and right signal paths minimizing crosstalk and shared ground contamination. Balanced XLR input signals remain differential throughout the gain stage rather than being converted to single-ended early in the path. Volume control is implemented via a precision potentiometer rather than relay ladder attenuation. Gain selection is available through a front-panel switch, altering amplifier feedback ratio or input stage scaling to accommodate varying headphone sensitivities. Component selection in typical units includes matched transistors, metal film resistors, and film capacitors in signal-critical positions. The preamplifier output stage mirrors the headphone amplification structure, enabling the device to function as a balanced line driver for downstream power amplification.

III. Thermal Management & Load Handling

Class A bias results in continuous current flow through the output devices regardless of signal level. Thermal dissipation is therefore constant rather than program-dependent. The perforated top panel provides vertical convection pathways for heat generated by the discrete transistor arrays mounted on internal heat spreading structures. The enclosure footprint allows sufficient airflow clearance around the top surface, though operation within confined racks would limit cooling efficiency. Under normal conditions the chassis surface will exhibit mild to moderate heat accumulation typical of Class A headphone amplifiers. Load tolerance is broad for headphone applications, capable of driving low-impedance planar magnetic designs as well as higher impedance dynamic headphones. Output stages are biased to maintain linear conduction across typical headphone impedance ranges without crossover distortion.

IV. Assembly Method & Manufacturing Discipline

Connector mounting is chassis-based rather than PCB-mounted, improving mechanical durability under repeated cable insertion. The front panel controls—power toggle, gain switch, preamp enable switch, and input selector—are panel-mounted with short internal wiring harnesses leading to the main circuit board. The internal circuit boards are typically populated via automated component placement followed by manual inspection and final assembly. The uniform spacing of rear connectors and consistent labeling indicate CAD-guided panel drilling rather than manual layout. Serial number labeling and “Made in U.S.A.” marking suggest small-batch production typical of boutique headphone amplifier manufacturers. Fasteners appear evenly torqued without stripped heads or evidence of repeated service intervention.

V. Interfaces, Controls & Contact Surfaces

The front interface includes a quarter-inch single-ended headphone jack and a four-pin XLR balanced headphone output. The balanced connector is preferred for differential drive capability and reduced shared ground interaction between channels. A central rotary volume control provides continuous attenuation. Gain selection is provided by a two-position switch allowing adaptation between high-sensitivity headphones and more demanding loads. A dedicated preamp toggle enables or disables the rear line outputs, allowing the unit to serve both as headphone amplifier and system control center. Rear connectivity includes balanced XLR inputs, RCA inputs, balanced XLR outputs, and RCA outputs. All connectors are metal-bodied types with panel mounting for mechanical stability. IEC mains input accepts standard detachable power cords, with voltage marking indicating configuration for 230 V operation.

VI. Production Context & Market Position

The GS-X Mini occupies the upper segment of the desktop headphone amplification market. It is positioned below HeadAmp’s larger GS-X Mk2 but above entry-level integrated headphone amplifiers from consumer electronics brands. Production scale is limited relative to mass-market audio electronics. Units are assembled in small batches with direct distribution through specialty audio retailers and direct manufacturer sales. The design targets enthusiasts using high-performance planar magnetic or electro-dynamic headphones requiring substantial current delivery. Its role within the broader headphone ecosystem is analogous to dedicated preamplifier-grade headphone amplification rather than integrated DAC/amp devices common in consumer digital audio systems.

VII. Preservation State & Intervention Evidence

The chassis surfaces appear intact without evidence of impact deformation or ventilation blockage. Connector plating remains bright, suggesting limited oxidation and relatively controlled environmental exposure. There is no visible indication of aftermarket modification such as non-factory wiring changes or additional panel drilling. Serial labeling remains intact and legible. The presence of both balanced and single-ended connectors in original configuration indicates factory specification rather than modified layout. Operational longevity is expected to be high given the discrete architecture and absence of high-stress switching power conversion within the unit. Long-term service considerations primarily involve electrolytic capacitor aging in the power supply stage after extended operational years.

VIII. Market Standing & Value Estimation

Current secondary market valuation for a HeadAmp GS-X Mini generally falls between 1,300 and 1,900 USD depending on cosmetic condition, voltage configuration, and original packaging availability. The valuation reflects its reputation within enthusiast headphone communities for clean high-current drive and balanced architecture. Liquidity is strong within the dedicated headphone audiophile segment due to brand recognition and compatibility with a wide range of high-end headphones. Replacement cost for a new unit from the manufacturer typically exceeds this resale range. Intrinsic material cost is moderate relative to selling price; value is primarily derived from discrete circuit design, boutique production scale, and reputation for stable performance with demanding headphone loads.
