Reference 9931 Casquette, LED Quartz Digital Display, Late 1970s

This is a Girard-Perregaux reference 9931 Casquette, produced between 1976 and 1978 during the early commercial phase of Swiss digital quartz watchmaking. The watch combines a quartz timekeeping module with a red LED numerical display housed within a forward-facing steel case. The configuration integrates case and bracelet into a continuous, architectural form characteristic of late-1970s industrial design. Production volume is estimated at approximately 8,000 units across steel, gold-plated steel, and polycarbonate variants. The reference represents Girard-Perregaux’s response to the quartz transition, emphasizing electronic innovation and unconventional ergonomics over traditional mechanical craft.

I. Case Architecture & Metal Integrity

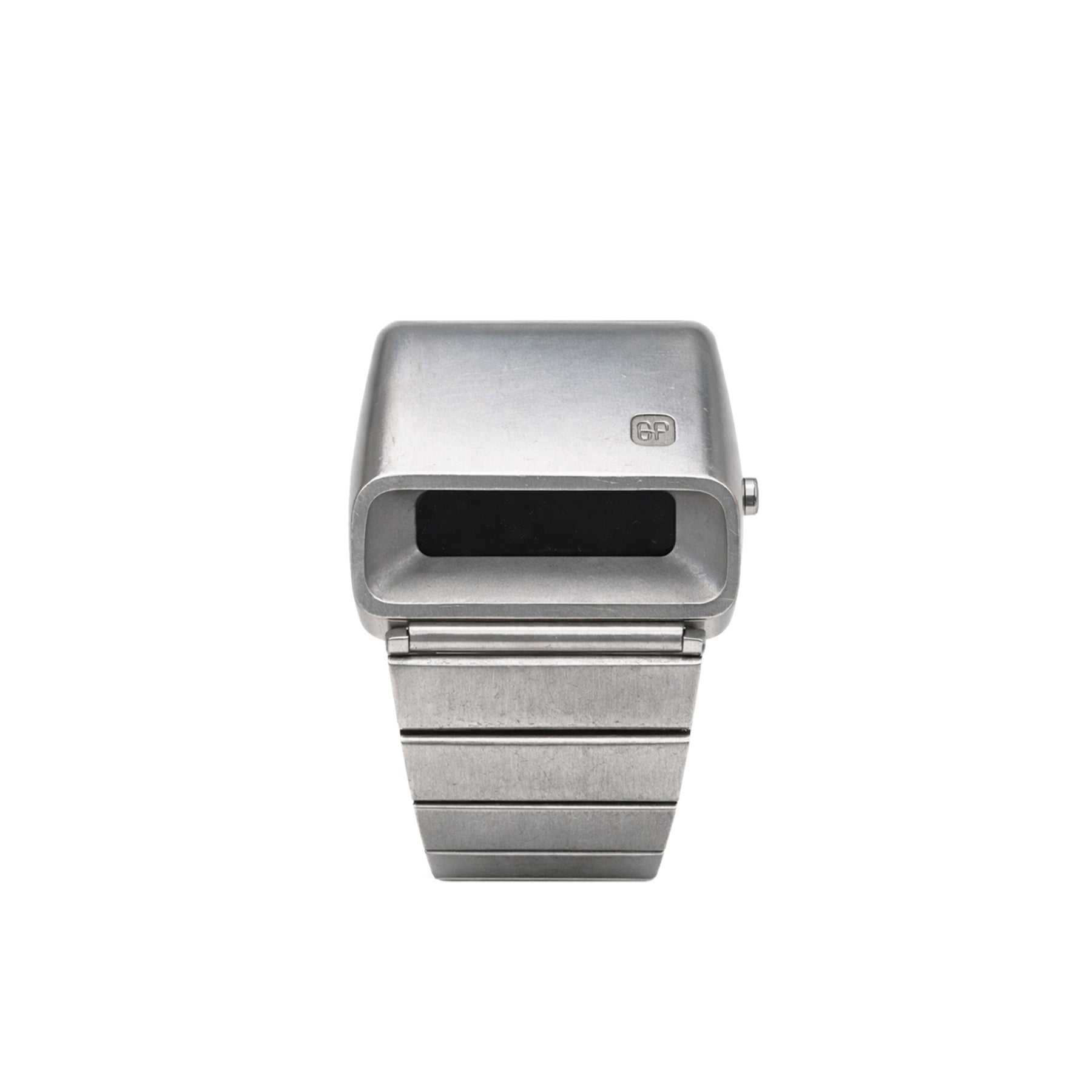

The case is a solid, hooded steel construction with a trapezoidal profile and recessed display aperture positioned on the leading edge. The top surface is brushed, interrupted only by a stamped GP emblem. A lateral pusher controls activation of the LED display. The bracelet integrates directly into the case via a hinged first link, forming a continuous stepped structure in brushed steel. Surface wear is consistent with age, including light abrasions and edge softening along high-contact surfaces. The brushed grain remains visible and coherent. No distortion of the case shell or hinge points is evident, and structural rigidity appears intact.

II. Dial Construction & Display System

The watch does not employ a traditional dial. Time indication is provided via a red LED numerical display positioned horizontally within a deep-set aperture. The display activates on demand through side pusher engagement, conserving battery life in accordance with first-generation LED constraints. The absence of a visible dial surface reflects a complete departure from analog conventions. There are no applied markers or hands; legibility relies entirely on electronic segmentation. The display window shows uniform coloration without evidence of segment dropout.

III. Movement Architecture & Mechanical Intent

The movement is a quartz electronic module designed to drive a light-emitting diode display. During this period, Girard-Perregaux was already established in high-frequency quartz development, notably with its 32,768 Hz standard adopted industry-wide. The Casquette’s module reflects this electronic lineage, though simplified for consumer digital use. Mechanical finishing is not a primary value driver; emphasis lies in circuit stability, battery efficiency, and display responsiveness. The intent was technological immediacy rather than decorative horology.

IV. Proportion, Wear Profile & Ergonomics

The case projects forward over the wrist, positioning the display toward the wearer’s line of sight without requiring full wrist rotation. This ergonomic decision reduces glare and enhances readability in ambient light conditions typical of LED displays. Thickness is substantial relative to mechanical watches of the era, dictated by battery and circuitry requirements. Weight distribution is centered through the integrated bracelet, resulting in stable wear despite the forward mass. The overall profile is architectural and assertive rather than discreet.

V. Production Context & Industrial Position

The Casquette was introduced during the height of the quartz crisis, when Swiss manufacturers experimented with electronic formats to compete with American and Japanese LED producers. Production ran briefly from 1976 to 1978, after which the model was discontinued. Total output of approximately 8,000 units places it in moderate production terms relative to mechanical references but limited within the digital LED category. The watch occupies a historically significant position as a Swiss-manufactured LED digital design at a time of industry realignment.

VI. Originality Audit

Case geometry, GP emblem stamping, side pusher placement, and integrated bracelet design are consistent with reference 9931 specifications. The brushed steel surfaces show age-consistent wear without evidence of aggressive refinishing. Bracelet links align correctly with factory geometry. The LED display functions with complete numerical segments visible. There are no apparent structural modifications or replacement components evident from exterior examination. Internal module originality cannot be conclusively verified without further disassembly, though external coherence supports period correctness.

VII. Temporal Standing

Within today’s market, the Casquette occupies a distinct niche at the intersection of vintage horology and industrial design collecting. Early LED watches were once dismissed as obsolete electronics; however, integrated steel examples from established Swiss manufactures have gained renewed attention. Legitimacy derives from historical placement in the quartz transition and distinctive case architecture rather than mechanical complexity. The reference is considered a design-led collectible rather than a traditional horological artifact.

VIII. Market Standing & Value Estimation

Current market values for steel reference 9931 examples generally range from 4,000 to 8,000 USD depending on functionality, case condition, and completeness. Gold-plated and polycarbonate variants may differ based on rarity and preservation. Liquidity has strengthened in recent years due to increased interest in 1970s integrated design and early digital watches. Value is driven primarily by industrial design significance and brand heritage rather than intrinsic material cost or mechanical refinement. Replacement cost through specialist dealers can exceed private sale levels, particularly for fully functioning modules.
