Magazine Rack, Injection-Molded ABS Vertical Compartment System, CIrca 1972

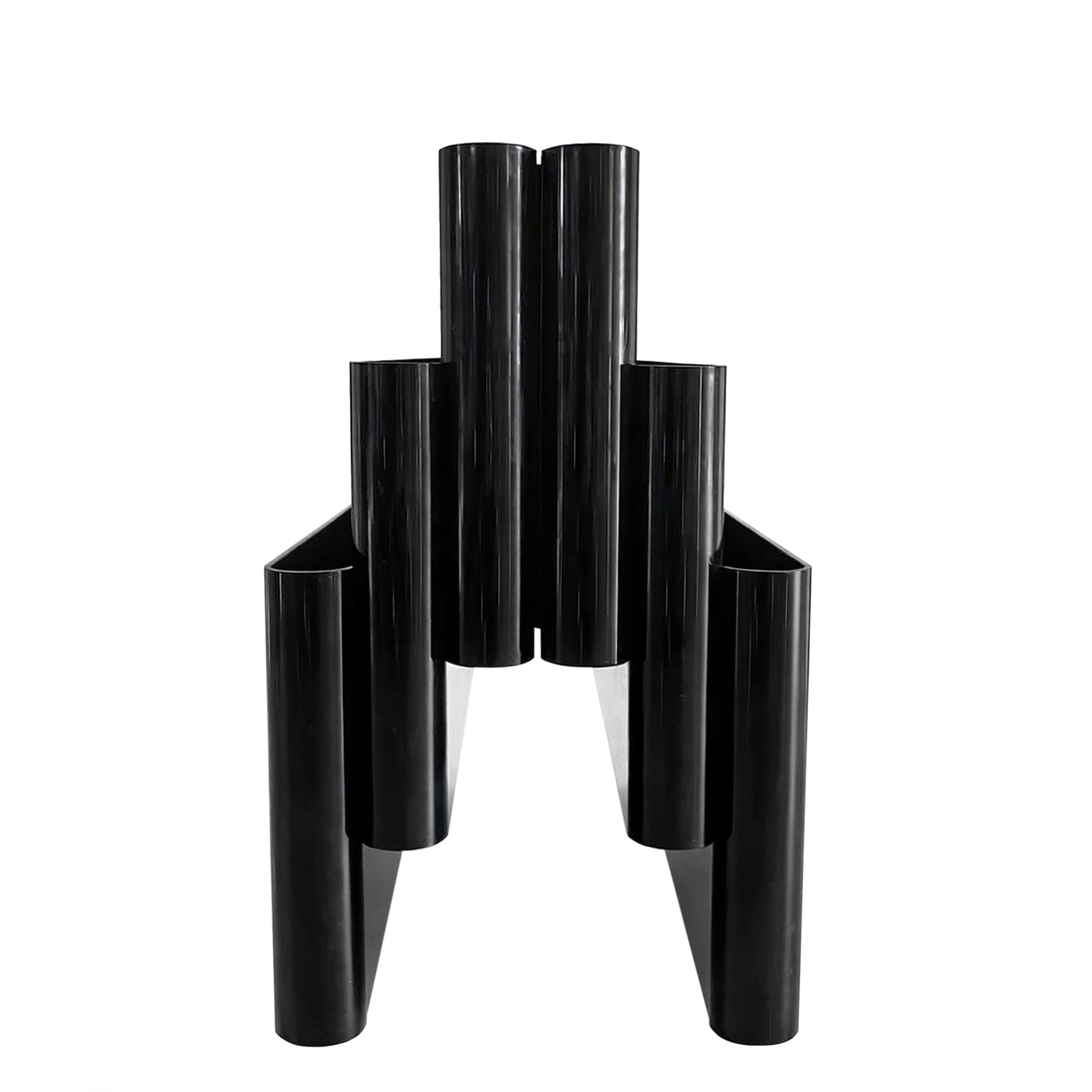

Freestanding magazine rack model 4675, manufactured by Kartell and designed by Giotto Stoppino, produced circa 1972 and in continued production through the 1980s, with this example documented by a retail record dated 1987. Dimensions approximately 29 cm width, 40 cm depth, and 45 cm height. Fabricated in injection-molded ABS plastic, finished in black with integrated structural side panels and six compartments arranged over three staggered levels. The rack is monolithic in concept but assembled from interlocking molded components. The configuration reflects early 1970s Italian industrial plastic design, prioritizing structural rhythm, modular repetition, and domestic utility through material efficiency.

I. Primary Materials & Structural Integrity

The primary material is opaque black ABS, identifiable through surface density, edge definition, and embossed manufacturer marking. ABS provides rigidity with moderate impact resistance, appropriate for vertical storage of printed matter. The structure is composed of two substantial lateral panels forming the primary load-bearing elements, into which curved vertical dividers and compartment walls are integrated. Load is transferred vertically through the continuous side panels to the floor. The curved front edges of each compartment function as stiffening ribs, reducing panel flex under weight. No visible cracking at stress concentration points or base corners is present. The object remains stable under expected magazine or book load without evidence of deformation or creep.

II. Fabrication Method & Production Logic

All principal components are injection molded using dedicated tooling. The smooth radiused vertical tubes and consistent wall thickness indicate controlled industrial molding. Embossed marking “Kartell 4675 Design G. Stoppino Made in Italy” is integrated into the mold, confirming production authenticity and eliminating applied labeling. The compartments are formed through repeated curved elements, likely molded as mirrored halves and assembled into the side structures. Surface finish is uniform satin-gloss, typical of period ABS molds with medium polish cavities. The production logic emphasizes repeatability and modular stacking of identical compartment geometries. There is no evidence of secondary machining beyond trimming and assembly.

III. Joinery, Fastening & Engineering Resolution

The rack is assembled from molded panels that interlock via concealed snap-fit or mechanical engagement points. No external fasteners are visible. Structural stability derives from the continuity of the side panels and the interlocking curvature of compartment dividers. The vertical cylindrical forms at the front of each tier act as both visual rhythm and structural reinforcement, increasing moment resistance against forward flex. The staggered configuration distributes weight evenly rather than concentrating load on a single plane. There is no indication of later repair, adhesive reinforcement, or substituted hardware. The engineering resolution is integral to molded geometry rather than post-production reinforcement.

IV. Surface Finish & Material Treatment

The black coloration is integral to the ABS resin, not painted. Surface sheen is consistent across panels, with light superficial scuffs typical of handling and use. No whitening, cracking, or deep gouging is evident. Edges remain crisp, with no rounding from excessive wear. The interior of compartments shows minor abrasion consistent with insertion and removal of printed materials. There is no evidence of refinishing or solvent polishing. The surface condition supports classification as very good, with wear confined to minor cosmetic marks.

V. Formal Language & Design Lineage

The object is a vertical magazine rack composed of six compartments arranged across three levels. The language is geometric and rhythmic, defined by alternating concave and convex cylindrical forms. This repetition creates visual cadence while structurally stiffening the piece. Stoppino’s design approach integrates structural necessity with graphic clarity. The cylindrical front edges are not decorative appliqué; they are structural volumes that reinforce the thin planar walls. The typology is strictly functional but expressed through plastic’s ability to form continuous curves. The design aligns with early 1970s Italian rationalist plastic furniture, where material experimentation replaced traditional wood joinery.

VI. Production Context & Market Position

Introduced in the early 1970s by Kartell, model 4675 became a durable catalog item within the company’s “Divisione Habitat” domestic line. Production was industrial and open, not limited edition. The documented 1987 purchase confirms continued availability through the late 20th century. Market positioning was mid-range contemporary domestic design, emphasizing durable plastic over wood or metal alternatives. It served residential, office, and contract environments requiring compact vertical storage. The larger six-compartment configuration is less common in later offerings, enhancing desirability among collectors of early Kartell production.

VII. Preservation State & Intervention Evidence

The structure is intact with no cracks at load-bearing junctions. Compartment alignment remains true. No signs of stress fractures at snap-fit interfaces are visible. Surface wear is limited to light abrasion. The original embossed marking remains sharp, indicating absence of sanding or repainting. There are no visible repairs, adhesive residues, or replacement parts. The survival of original retail documentation from 1987 supports continuity of ownership and confirms production period. Overall preservation is stable, with cosmetic wear consistent with age but no structural compromise.

VIII. Market Standing & Value Estimation

Estimated current secondary market range: 1,000–1,200 EUR for the six-compartment large version in very good condition with clear maker’s mark. Examples retaining documentation and free from cracking command the upper portion of the range. Liquidity is steady within collectors of Italian 1970s plastic design and functional mid-century accessories. Replacement cost for a contemporary equivalent in scale and material would approach or exceed this range, though resale value remains anchored in designer attribution and early Kartell production lineage. Material value is negligible; market standing derives from design authorship, structural clarity, and historical position within Kartell’s plastic innovation period.
