Cruciform Wall-Mounted Medicine Cabinet, Home Pharmacy, Early Production, Mid-1990s

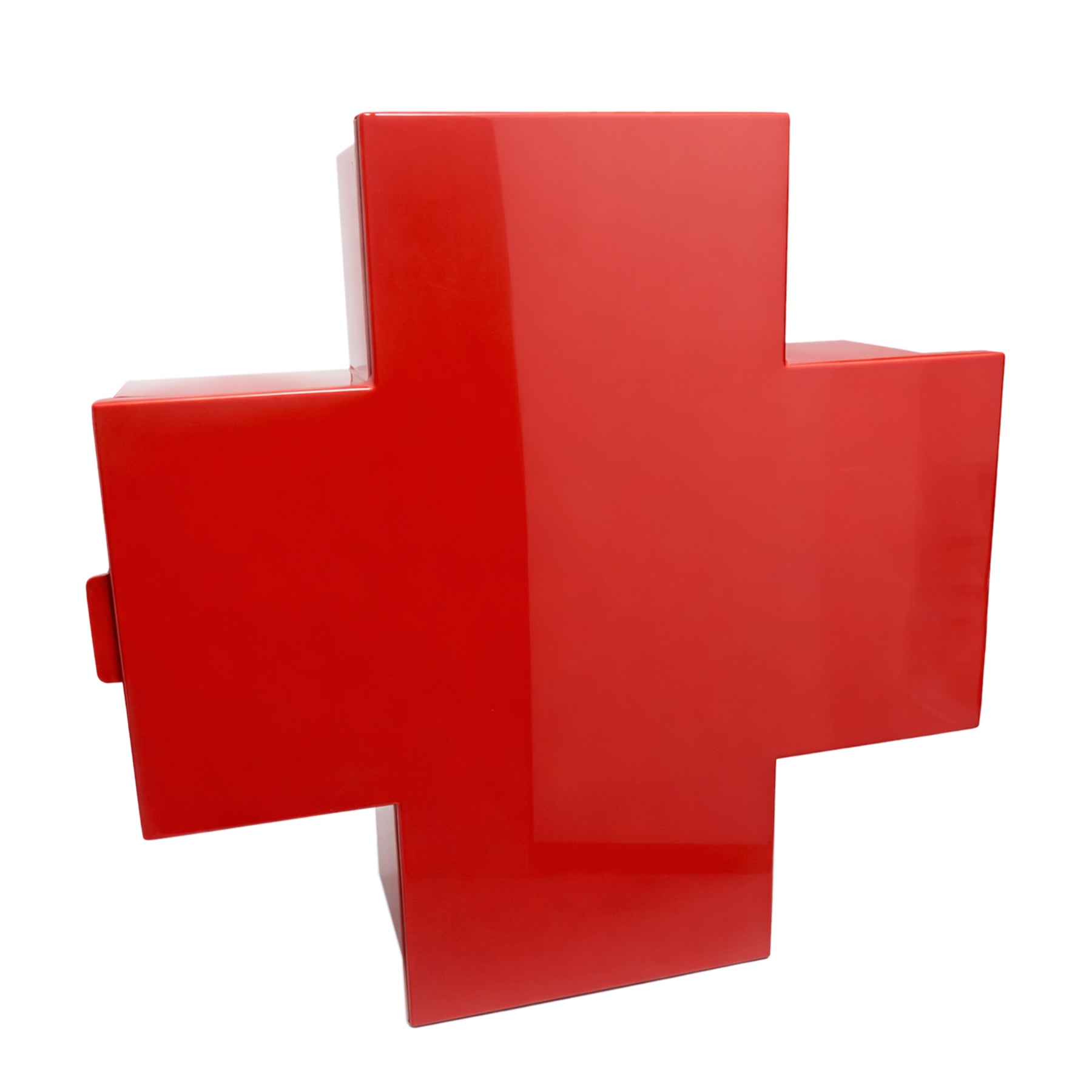

Wall-mounted medicine cabinet in cruciform plan, designed by Thomas Eriksson for Cappellini. Production period consistent with mid 1990s Italian contract design manufacturing. Fabricated from laser-cut sheet steel panels, folded and mechanically assembled, finished in high-gloss red coating. The cabinet incorporates a hinged door with concealed magnetic closure and an internal perforated shelf system. The configuration reflects small-batch industrial production emphasizing geometric identity over ornamental detailing, positioned within the design-furniture market rather than utilitarian medical supply channels.

I. Primary Materials & Structural Integrity

The primary material is mild steel sheet of moderate gauge, likely in the range typical for wall-mounted storage units designed to balance rigidity and weight. The cruciform body is formed from folded planar panels rather than cast components, creating a hollow monocoque volume with structural stiffness derived from right-angle returns and edge flanges. The internal shelf is perforated sheet steel, adding localized stiffness through hole patterning while reducing mass. Hinges appear to be steel with plated or coated pins; fasteners are steel machine screws. No evidence of structural distortion, oil-canning, or panel warping is present. Corners remain square, indicating adequate gauge selection and controlled forming. Cosmetic surface abrasion is visible but does not indicate material fatigue or compromised load-bearing capacity.

II. Fabrication Method & Assembly Logic

Panels are laser-cut to profile, then press-brake folded to achieve orthogonal returns. The body appears assembled through concealed fasteners and possibly spot welds at internal seams, though the external finish masks joint transitions. The door is a separately fabricated folded steel box section, aligned via surface-mounted hinges secured with machine screws into pre-threaded inserts or captive nuts. The internal perforated shelf is removable or seated on formed supports integrated into the side panels. Hole spacing in the shelf is consistent with CNC-controlled perforation rather than manual punching. Tolerances at door margins are even, indicating controlled batch production. The logic reflects engineered assembly with repeatable components rather than bespoke fabrication.

III. Functional Architecture & Load Path

The cabinet is intended for wall mounting, transferring load through rear panel attachment points into masonry or stud anchoring systems. The cruciform projection distributes mass symmetrically around a central vertical axis, reducing torsional imbalance when mounted. The door load transfers through hinge knuckles into the side wall panel; hinge placement near the vertical edge minimizes lever stress. The internal shelf spans laterally between side supports, bearing distributed load from stored contents. The perforation reduces weight while maintaining bending resistance through remaining web structure. No evidence of hinge sag, elongation of screw holes, or racking at the door frame suggests adequate engineering for anticipated domestic storage loads.

IV. Surface Treatment & Finish Stratigraphy

The exterior finish is a high-gloss pigmented coating, likely powder-coated or catalyzed lacquer over properly prepared steel substrate. The uniform gloss and edge coverage indicate factory application rather than later refinishing. Corners and folded returns show consistent film thickness without thin-edge burn-through, supporting controlled electrostatic deposition. Minor surface scuffs are consistent with handling and cleaning rather than impact damage. There is no evidence of corrosion bleed-through, blistering, or underfilm oxidation. Interior surfaces carry the same coating, suggesting full-body finishing prior to final assembly. The finish remains stable and intact.

V. Hardware, Interfaces & Contact Geometry

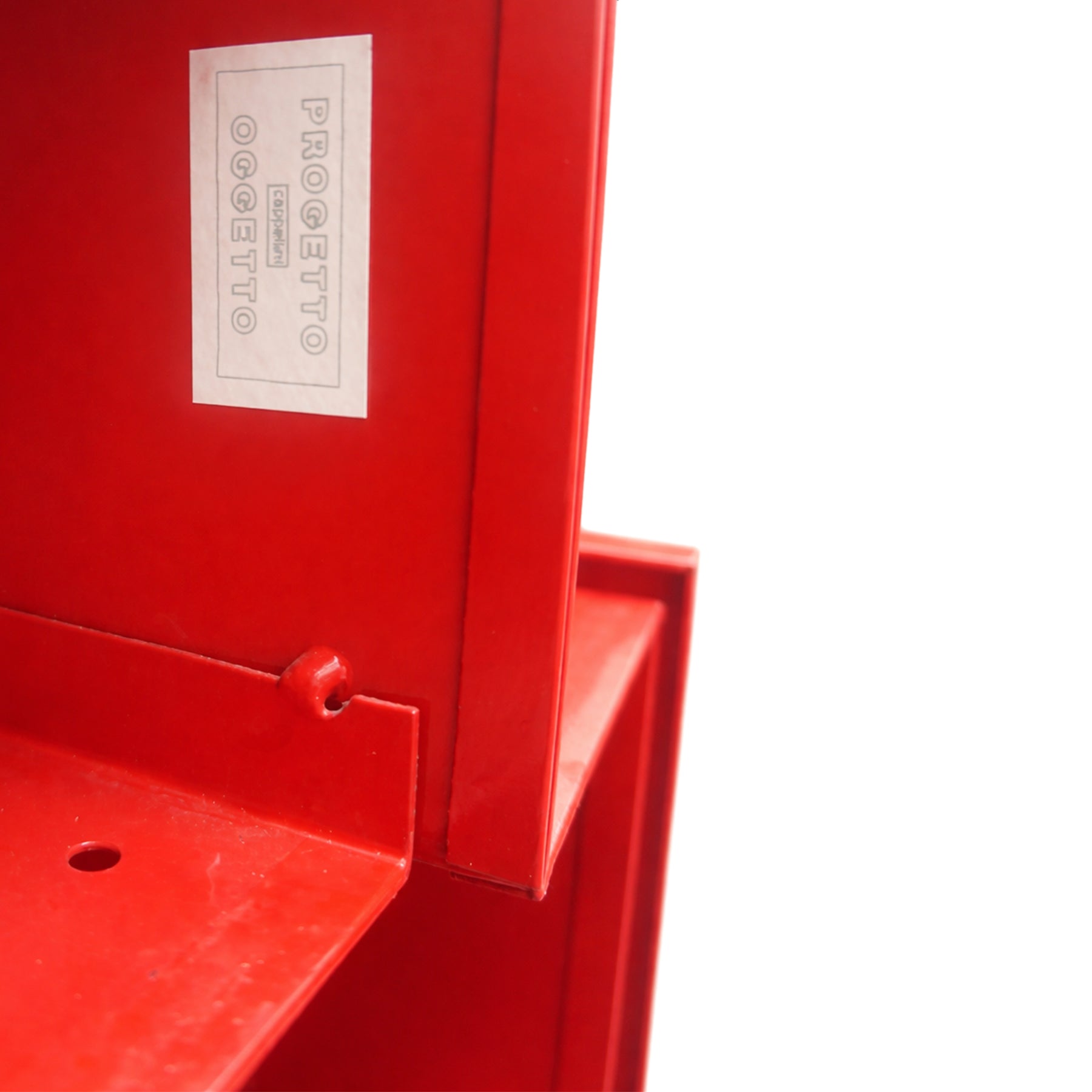

Hinges are surface-mounted steel butt hinges, mechanically fastened with machine screws. Screw heads are consistent in type and finish, indicating original hardware rather than later substitution. The magnetic closure system is integrated within the door frame, eliminating protruding latch hardware and reducing wear points. Contact geometry between door and cabinet frame shows even reveal and uniform compression at closure, suggesting magnet alignment remains correct. There is no visible elongation at hinge mounting points. Fastener threading appears metric, consistent with Italian manufacture. No mixed-metal corrosion is evident at hinge interfaces.

VI. Production Context & Market Position

This object originates from Cappellini’s design-furniture production, positioned within the upper-tier contemporary interior market rather than institutional medical supply. Production scale is industrial but not mass commodity; components are standardized yet aligned with design-brand distribution. The use of laser cutting and powder coating reflects late 20th-century European contract manufacturing capabilities. The object participates in postmodern reduction of symbol into planar geometry, with functional reinterpretation of the medical cross motif for domestic interiors. Intended environments include private residences and design-oriented commercial spaces. Expected service life aligns with durable interior case goods rather than disposable storage. This example is consistent with early production from the initial manufacturing run. First-run units from Cappellini’s mid 1990s output typically exhibit stricter finish control and closer adherence to original design tolerances prior to any cost-optimization adjustments in later batches. Early production status is relevant within the design-collector market, as it situates the object closer to the original release context and pre-revision fabrication specifications. While structurally equivalent to subsequent units, first-series examples carry incremental market preference when condition remains uncompromised.

VII. Preservation State & Intervention Evidence

Structural joints remain tight. Hinges operate without visible deformation. The finish shows no evidence of stripping, repainting, or overcoating; gloss consistency supports original factory application. There are no visible weld repairs, patching, or re-threading. Perforated shelf remains planar without sagging. Magnetic closure appears intact and properly aligned. Oxidation is absent, indicating stable interior storage conditions. The cabinet is suitable for continued wall-mounted use within normal load parameters.

VIII. Market Standing & Value Estimation

Current secondary market range estimated at 1,200 to 1,500 USD depending on finish condition and completeness of mounting hardware. Valuation derives from designer attribution, brand recognition, and intact original finish rather than material intrinsic value. Liquidity is moderate within design-collector and contemporary decorative markets; limited within general architectural salvage channels due to branded specificity. Replacement cost at current retail levels would exceed secondary valuation, reflecting brand positioning. Resale value is supported by condition integrity and absence of refinishing.
