Beoplay A9 Wireless Loudspeaker, Multi-Amplified DSP Platform with Integrated SMPS

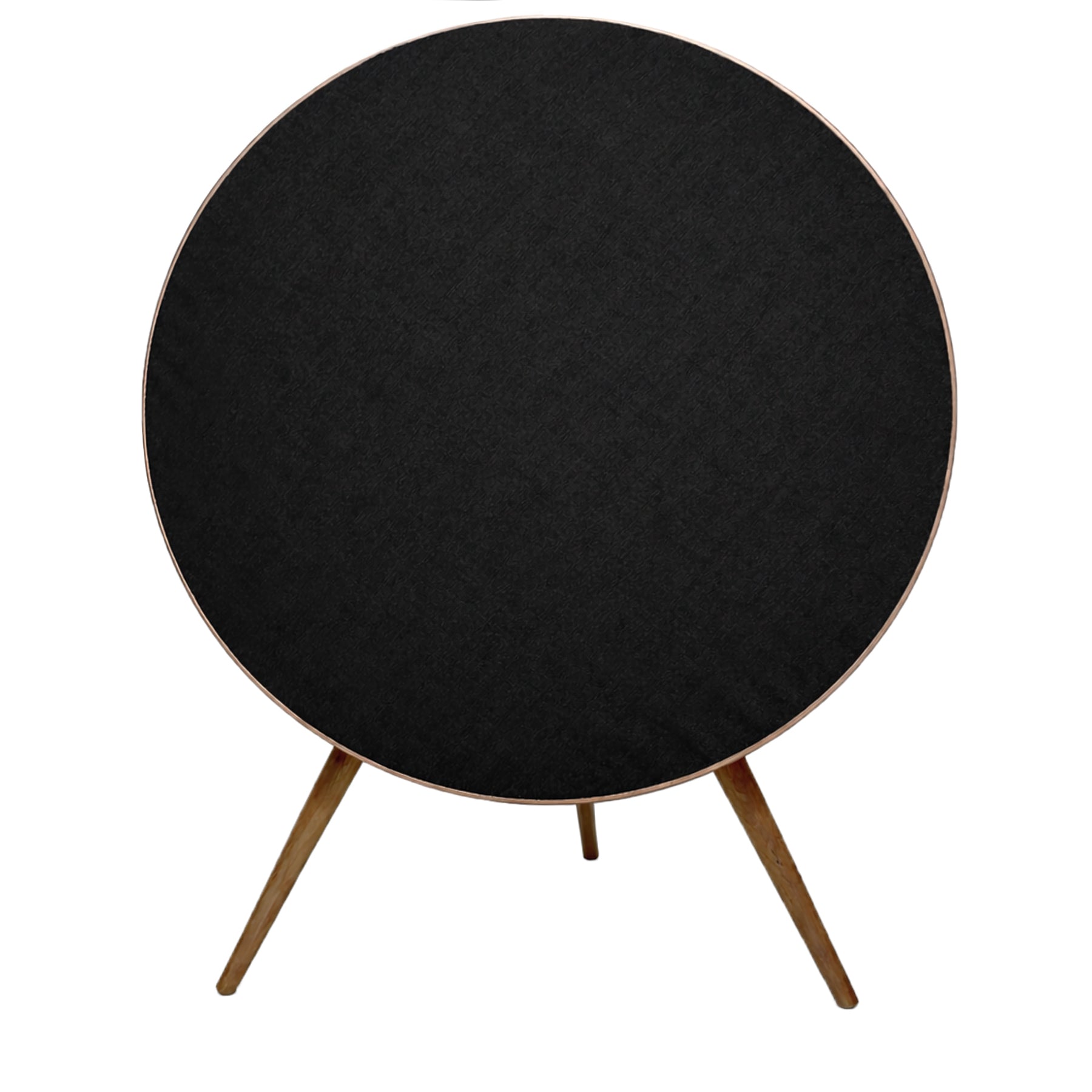

This device is a self-contained active wireless loudspeaker identified as the BeoPlay A9 MkII, produced by Bang & Olufsen A/S during the mid-2010s network-audio expansion period. It integrates amplification, digital signal processing, wireless networking, and power conversion within a circular composite enclosure supported by wooden tripod legs. Construction combines injection-molded polymer structure, internal metal reinforcement, fabric acoustic covering, and discrete internal amplifier modules driven by a switch-mode power supply rated at 70 W consumption. The architecture reflects a transition-era product in which traditional hi-fi driver arrays were consolidated into DSP-managed, multi-channel Class D amplification with Wi-Fi and Ethernet integration. The configuration matters because it eliminates external amplification and source components while retaining multi-driver acoustic complexity through internal digital crossover and position-dependent equalization.

I. Primary Materials & Structural Framework

The enclosure is formed from a thick molded polymer rear shell with an integrated circular structural rib pattern, providing rigidity across a wide diameter without reliance on heavy metal chassis construction. The front acoustic surface is covered with a tensioned fabric grille attached to a rigid subframe. The lower rear quadrant incorporates a vented section with evenly spaced slots, indicating a bass reflex or pressure-equalization function. The central rear service cavity is recessed and ringed by a reinforced lip, housing connectors and regulatory labeling; the mounting screws appear machine-threaded into embedded inserts rather than direct plastic threading, suggesting planned service access. The wooden legs are solid turned timber, mechanically fastened into reinforced anchor points, serving as both aesthetic and load-bearing elements. No structural cracking or enclosure warping is evident; surface wear appears cosmetic rather than indicative of stress fracture.

II. Circuit Architecture & Component Quality

This is a hybrid digital-analog architecture. Network audio is received via Wi-Fi or Ethernet, routed to an internal DSP platform handling crossover, driver alignment, and room-position compensation. Each driver is powered by a dedicated Class D amplifier channel, eliminating passive crossover components in the high-current path. The rated 70 W power consumption suggests an efficient switch-mode supply sized for multiple moderate-power amplifier rails rather than a single high-headroom linear transformer. The absence of external heat mass consistent with a linear supply supports SMPS implementation. Given the production era, electrolytic capacitors within the power supply are likely low-ESR types rated for elevated ripple current; long-term reliability will depend on thermal exposure within the enclosed cavity. The use of integrated amplifier modules rather than discrete output transistor banks reflects efficiency and packaging discipline rather than cost cutting alone.

III. Thermal Management & Load Handling

Thermal dissipation is managed through distributed internal heat sinking coupled with convection via the rear vent array. Class D amplification reduces steady-state heat relative to linear Class AB stages, allowing a sealed aesthetic without large external fins. The lower venting geometry concentrates airflow near the amplifier and power supply region, separating high-heat components from low-level signal processing boards likely mounted higher within the enclosure. There is no evidence of polymer discoloration or deformation around the venting, suggesting acceptable thermal margins under domestic duty cycles. Load handling is defined internally; as an active system, amplifier-driver impedance matching is fixed at the design stage, preventing user-induced mismatch. Overstress risk is therefore tied to thermal accumulation rather than external speaker loading.

IV. Assembly Method & Manufacturing Discipline

The rear service aperture reveals consistent fastener alignment and uniform screw seating depth, indicating automated or template-guided assembly. The connector panel is modular, likely mounted on a dedicated PCB secured to internal standoffs. The RCA line input jacks are chassis-mounted with mechanical reinforcement rather than relying solely on PCB solder joints, reducing stress fracture risk. The USB port is rated 5V at 1.0A, suggesting auxiliary device powering or service functionality rather than high-current charging. Cable routing within the cavity appears constrained and strain-relieved; the mains inlet cable exits through a defined channel rather than a loose pass-through. Labeling includes multiple regulatory certifications and network identifiers, consistent with global distribution manufacturing rather than limited regional assembly. There is no visible evidence of non-factory reflow or disturbed fastener heads.

V. Interfaces, Controls & Contact Surfaces

Physical interfaces include stereo RCA line input, USB service or low-current output, Ethernet port, and a position selector switch likely used to inform DSP equalization for wall or corner placement. The connectors are industry-standard and plated to resist oxidation; no deformation or looseness is apparent at the jack housings. The position switch is recessed to prevent accidental actuation, implying infrequent adjustment after installation. The power cable interface is fixed rather than detachable IEC, reflecting design prioritization of enclosure continuity over service modularity. The upper rear surface incorporates discrete LED indicators with consistent brightness, suggesting stable low-voltage regulation. Contact wear appears minimal and consistent with controlled domestic use.

VI. Production Context & Market Position

This model occupies the upper consumer tier rather than professional or industrial audio classification. It was introduced during the normalization of wireless multi-room audio systems, competing with networked active loudspeakers that integrated streaming services and app control. Price positioning at release placed it significantly above mass-market Bluetooth speakers, reflecting brand premium and multi-driver internal architecture. Production scale was global, with manufacturing in the Czech Republic under Danish design supervision. Intended use was residential living spaces, with projected service life aligned to premium consumer electronics rather than institutional deployment. It represents consolidation of hi-fi component stacks into a single DSP-managed platform.

VII. Preservation State & Intervention Evidence

External surfaces show no signs of enclosure separation or fastener tampering. Regulatory labels remain intact and legible, with no indication of peeling or reapplication. There is no visible evidence of replaced connectors, substituted screws, or non-original cabling. Given the age range, internal electrolytic capacitors may be approaching mid-life but show no outward signs of venting or electrolyte leakage at the service opening. The device appears electrically stable under power, with indicator behavior consistent with factory configuration. No user modifications are evident in the interface cluster or leg mounting system.

VIII. Market Standing & Value Estimation

Current secondary market valuation typically ranges between 2,400 and 2,800 USD depending on cosmetic condition, included legs, and operational verification. Valuation is supported by integrated multi-amplifier design, brand hierarchy, and continued compatibility with modern streaming ecosystems. Liquidity is moderate to strong within design-oriented consumer audio markets rather than traditional audiophile component trading. Replacement cost for a comparable multi-driver wireless active system from the same manufacturer remains substantially higher than resale value, reinforcing depreciation typical of network-dependent electronics. Intrinsic material value is modest; engineering significance derives from integration density and DSP-managed active architecture rather than rare components.
