Beoplay A9 Active Wireless Speaker with DSP, Multi-Amp Architecture

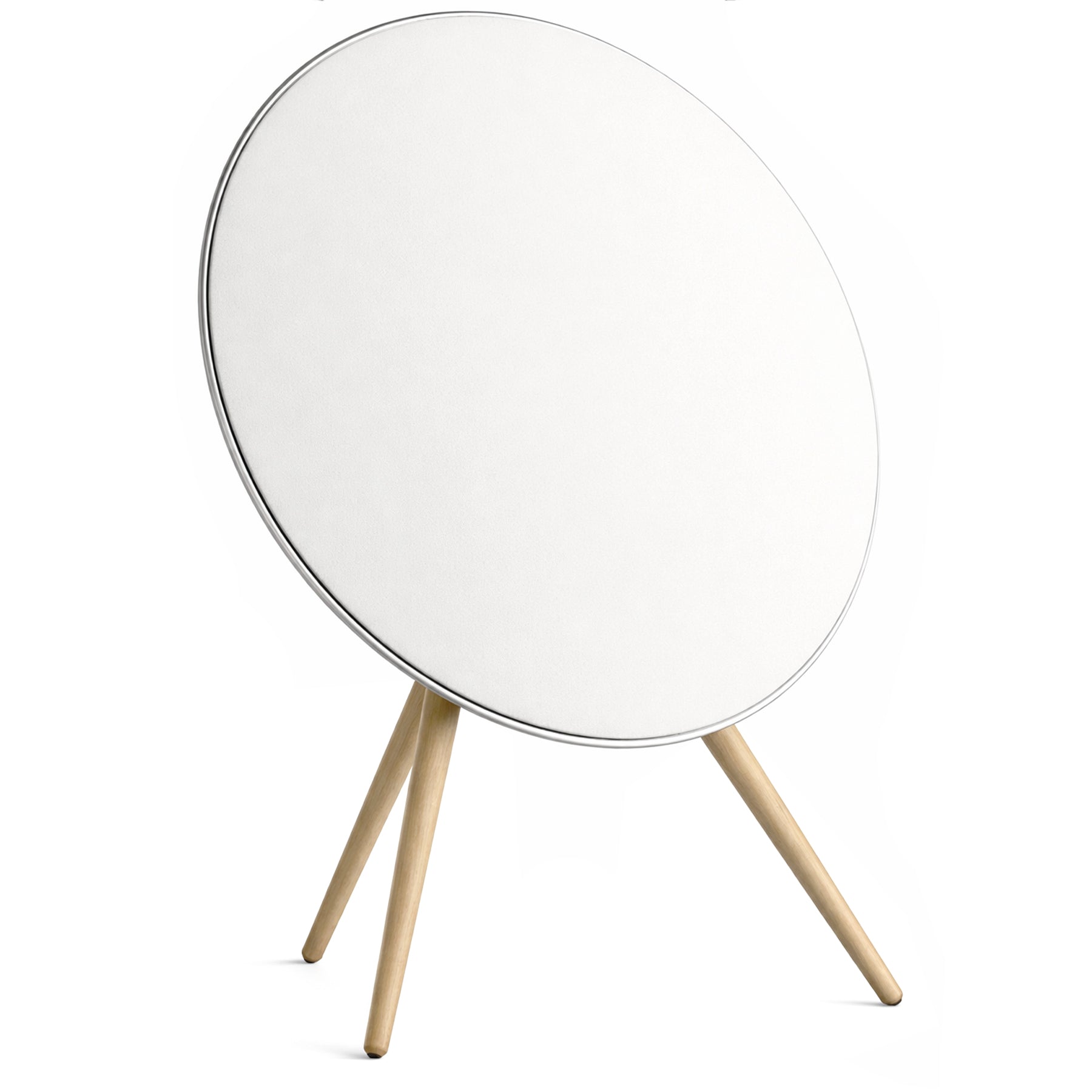

This device is a self-contained active wireless loudspeaker designed for domestic full-range audio reproduction, introduced as the first generation of the Beosound A9 platform. The enclosure combines a molded composite rear shell, fabric-wrapped circular front baffle, and three detachable wooden legs with threaded steel inserts for tripod support. Internally it employs a multi-driver array with dedicated class D amplification channels governed by digital signal processing for crossover, equalization, and protection. Mains input feeds an internal switched-mode power supply that distributes regulated rails to amplifier modules and logic boards, while auxiliary line input and USB service/charging ports are consolidated in a recessed rear interface panel. The configuration reflects 2010s integration trends: network-capable DSP loudspeakers replacing passive crossover architectures and external amplification, prioritizing controlled directivity and compact power density over service modularity.

I. Primary Materials & Structural Framework

The structural assembly consists of a circular rear housing formed from injection-molded polymer with integral ribbing for torsional rigidity. The front acoustic surface is defined by a removable fabric grille stretched over a circular frame, tensioned to maintain uniform acoustic transparency without sagging. The three wooden legs are cylindrical hardwood elements, mechanically coupled via threaded steel inserts embedded in the main chassis; load is transferred through these inserts into reinforced mounting bosses within the rear shell. The internal driver array is secured to a sub-baffle that distributes reaction forces from low-frequency excursion across the enclosure circumference rather than concentrating them at a single mounting plate. There is no evidence of structural cracking, deformation, or delamination at leg junctions; finish wear on legs appears consistent with floor contact rather than load-induced stress.

II. Circuit Architecture & Component Quality

Network functionality includes integrated WiFi connectivity with AirPlay support, enabling lossless network streaming within Apple-based ecosystems in addition to analog line-level input. Wireless integration is handled at board level rather than via external module, consistent with first-generation network audio platforms of the 2010s. The electrical architecture is hybrid digital/analog. Audio input—whether network or line-level analog—is digitized and routed through a DSP platform implementing crossover segmentation, driver alignment, equalization curves, and excursion limiting. Each driver is powered by a dedicated class D amplifier stage, likely based on integrated switching amplifier modules rather than discrete transistor output stages. The internal power supply is a compact switched-mode design sized to support simultaneous multi-channel output while maintaining acceptable thermal margins; no oversized transformer mass typical of linear supplies is present. Capacitor selection within SMPS sections in this production period commonly includes mid-grade electrolytics subject to long-term ESR increase, a known service vector beyond ten years. Signal routing is consolidated on multilayer PCBs, with separation between high-frequency switching domains and low-level signal processing to mitigate EMI coupling. The design prioritizes integration efficiency over long-term field-replaceable modularity.

III. Thermal Management & Load Handling

Heat dissipation relies on aluminum heat spreaders bonded to amplifier modules and strategic venting along the rear enclosure perimeter. The circular form factor promotes even internal convection rather than chimney-style vertical airflow. High-heat switching elements are physically segregated from low-voltage logic and wireless modules, reducing localized thermal soak. The absence of a linear transformer reduces continuous thermal mass but shifts reliance to switching efficiency and controlled duty cycling under DSP supervision. There is no visible discoloration or polymer distortion indicative of chronic overheating. Load handling is governed electronically; excursion limiting and amplifier current monitoring reduce the likelihood of catastrophic driver failure under sustained high output, though prolonged operation at maximum SPL will accelerate capacitor aging within the SMPS.

IV. Assembly Method & Manufacturing Discipline

Internal PCB assemblies are machine-placed surface-mount constructions typical of large-scale contract manufacturing. Board mounting appears via molded standoffs with machine screws rather than adhesive fixation, allowing controlled torque and vibration stability. Cable routing between drivers and amplifier boards is organized through harnesses with molded strain relief, reducing mechanical stress at solder pads. The rear I/O panel is integrated into a dedicated compartment, isolating user interaction from primary structural members. Solder quality is consistent with automated reflow processes; there are no indicators of localized hand rework, substituted connectors, or non-factory wiring. Production characteristics align with high-volume consumer electronics manufacturing rather than boutique assembly.

V. Interfaces, Controls & Contact Surfaces

The rear interface cluster includes stereo line-level RCA input, USB port rated at 5V 2.1A for device charging or service functions, a mains inlet, and a position selector switch allowing DSP compensation for wall or corner placement. Connector plating appears standard consumer-grade nickel or gold flash rather than heavy industrial specification. The position switch is a small mechanical slide unit with defined detents; long-term reliability depends on internal contact plating integrity but is not inherently fragile. The fabric front conceals proximity or gesture-based volume control integrated into the top arc, minimizing mechanical potentiometer wear. Contact surfaces show typical domestic handling marks without evidence of connector fatigue or intermittent mechanical instability.

VI. Production Context & Market Position

This model occupies the upper consumer tier of integrated wireless loudspeakers during the early streaming era. It was marketed as a design-forward alternative to conventional component stereo systems, targeting users transitioning from separates to network-enabled active systems. Production scale was global and substantial, supported by established distribution channels. At release, pricing placed it above mass-market Bluetooth speakers but below dedicated high-end audiophile separates of equivalent acoustic output. It represents a transitional phase in which DSP-controlled multi-amplifier platforms displaced passive crossovers in lifestyle-oriented audio products. Intended service life in domestic conditions was approximately a decade, contingent on SMPS capacitor stability and firmware support continuity. Manufacturer positioning emphasized the product as an iconic, customizable loudspeaker combining sculptural form with a seven-driver active architecture. While promotional language referenced a century of craftsmanship heritage, the technical significance rests in its integrated multi-amplifier DSP platform and modular aesthetic customization options rather than in novel acoustic topology.

VII. Preservation State & Intervention Evidence

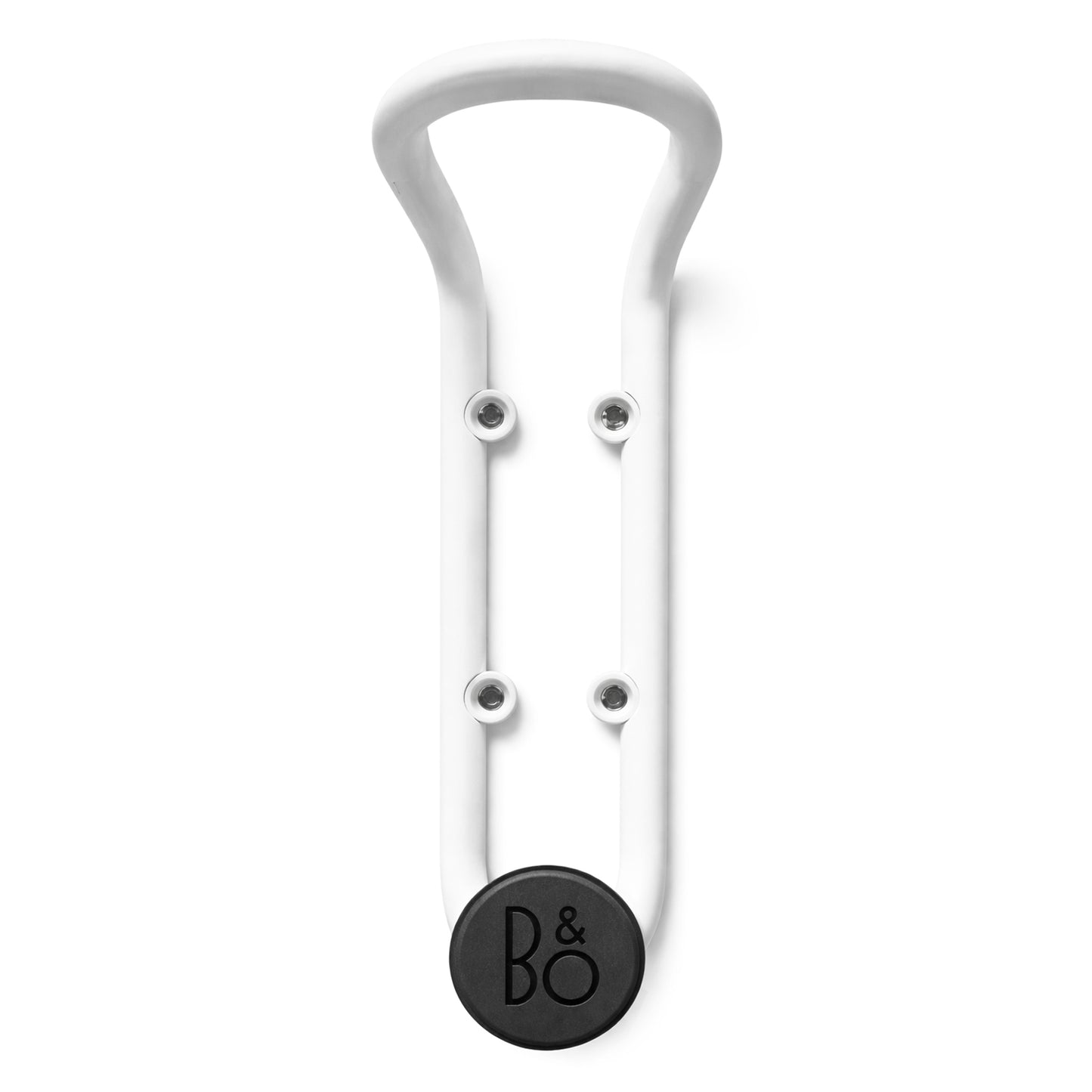

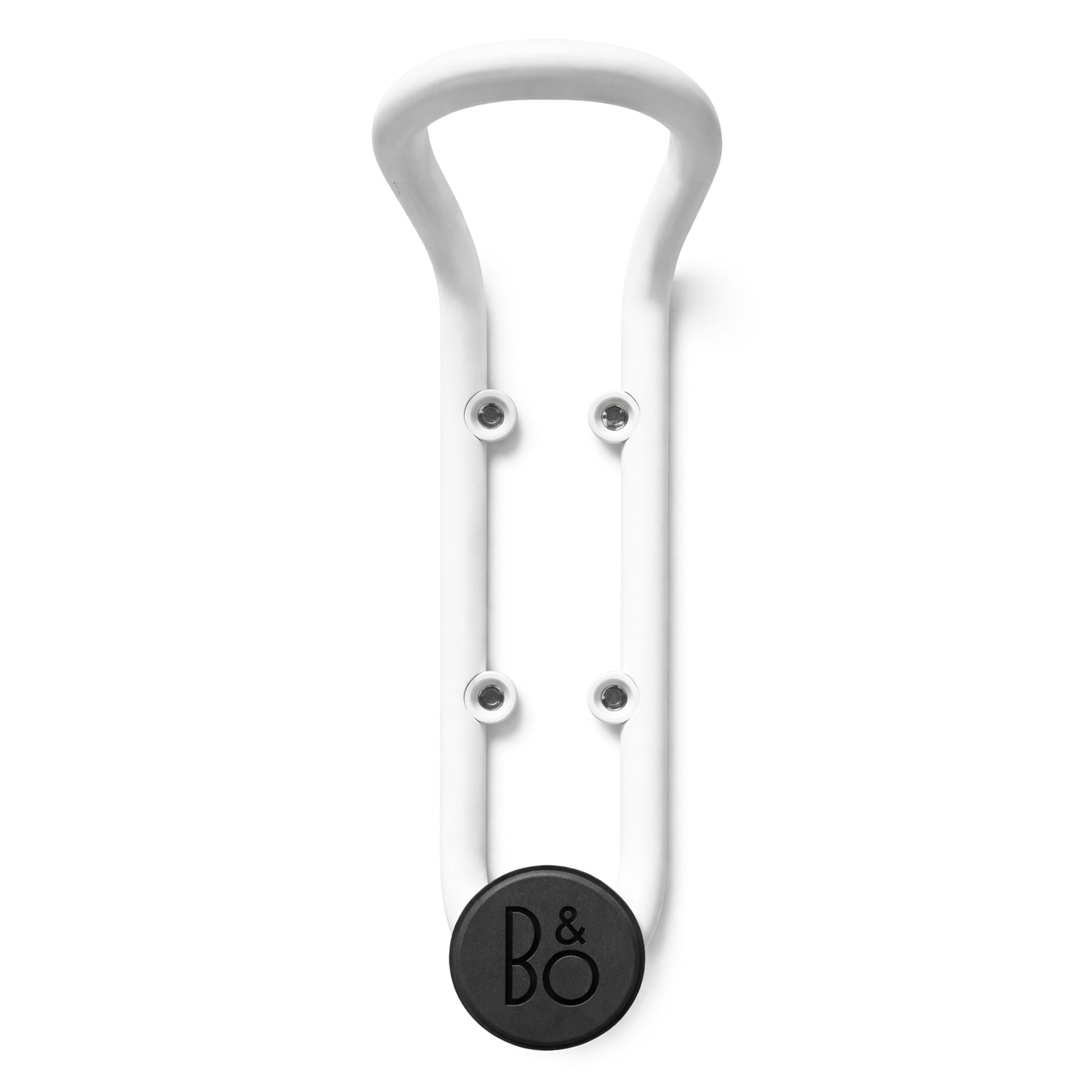

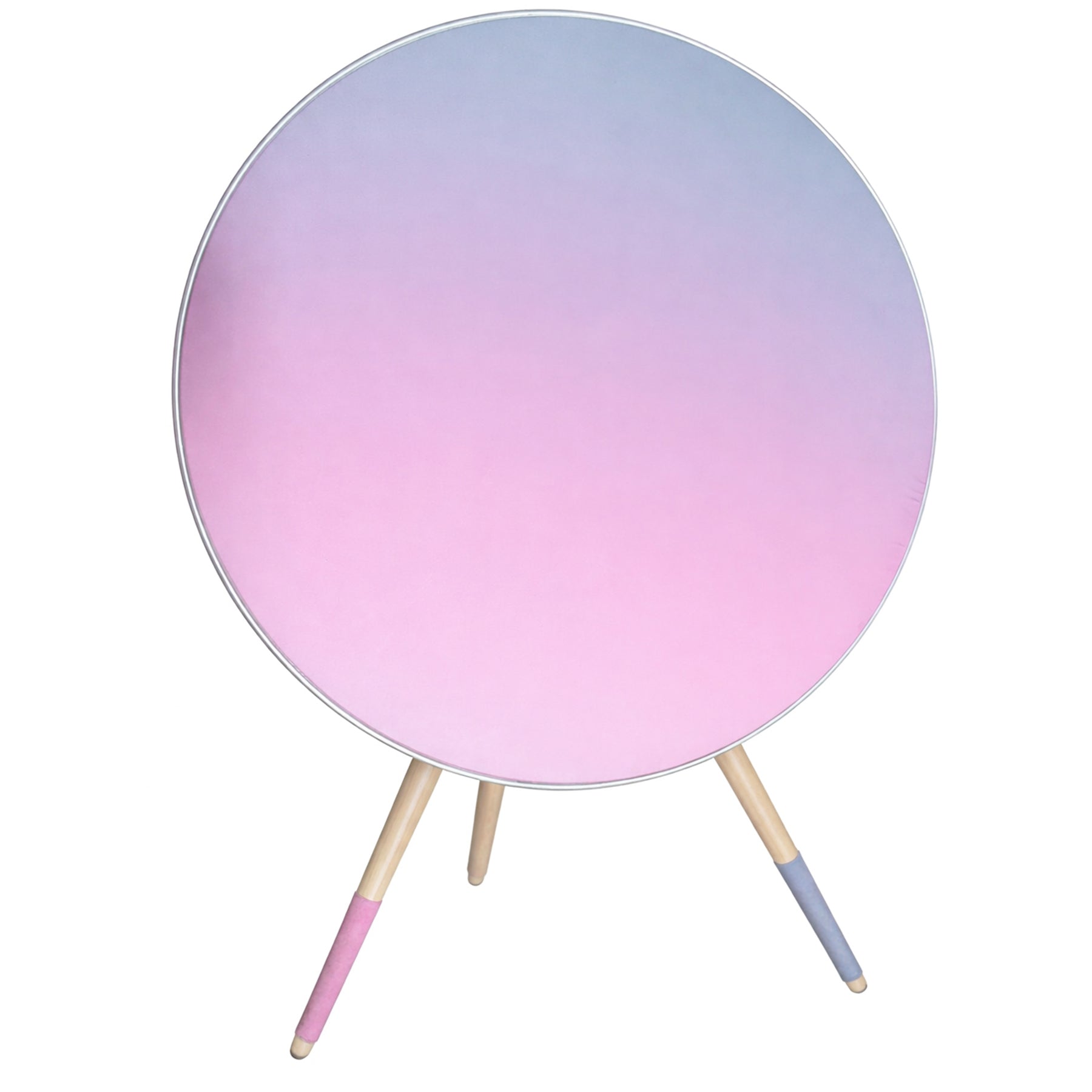

Unit is first-hand ownership and maintained in a smoke-free, animal-free domestic environment. Functional testing confirms stable power delivery, wireless connectivity, input response, and full driver output without distortion or intermittent behavior. Overall condition is good, used, with wear limited to normal handling and placement. Original wall-mount bracket is present, along with multiple fabric front covers as shown. The wooden legs are fitted with removable fabric sleeves (“socks”), which appear to be non-structural accessories intended to protect finish surfaces rather than factory acoustic components. Power delivery architecture appears intact, with no evidence of capacitor venting, board scorching, or connector modification. There are no indications of third-party amplifier substitution or non-factory driver replacement. Fabric covers and leg finishes show ordinary environmental wear consistent with residential placement. No reflow irregularities or flux residue patterns suggest post-production solder intervention. Plastic elements exhibit no embrittlement or UV chalking beyond mild surface aging. In current state, continued domestic operation under typical listening levels is mechanically and electrically plausible, though proactive replacement of aging electrolytic capacitors within the SMPS would be prudent for long-term reliability beyond original design expectancy.

VIII. Market Standing & Value Estimation

Current secondary market valuation typically falls within 1,600–1,800 USD depending on cosmetic condition, included accessories, and firmware functionality. Value derives from brand positioning, acoustic output capability relative to footprint, and continued compatibility with modern streaming protocols where updated. Liquidity remains moderate due to ongoing recognition of the model within design-oriented audio markets. Replacement cost for a current-generation equivalent exceeds typical resale pricing, but depreciation reflects integrated electronics aging risk rather than structural deficiency. Intrinsic material value is low relative to retail price; residual worth is anchored in engineered DSP integration and established maker reputation rather than component mass or rare manufacturing method.
