BeoLab 4 Active Compact Loudspeaker, ICEpower Bi-Amplified Desktop Monitor Architecture

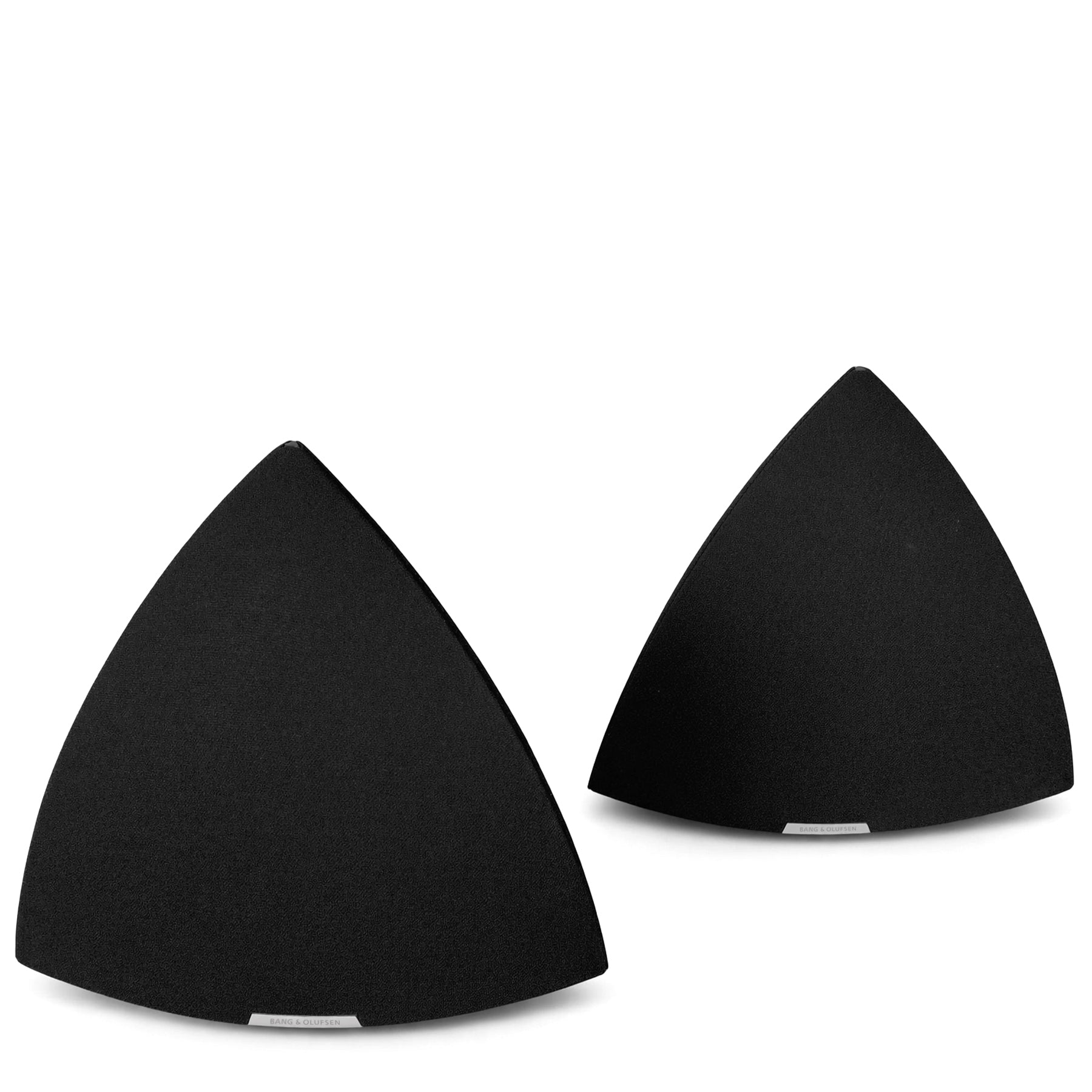

This pair consists of Bang & Olufsen BeoLab 4 active compact loudspeakers, originally introduced in the early 2000s as nearfield monitors adaptable for both desktop and small-room applications. Each unit integrates internal bi-amplification using ICEpower Class D modules, with active crossover implemented ahead of the power stages. The enclosure is a rigid polymer triangular form mounted on an aluminum column and circular cast base, separating acoustic mass from surface coupling. Fabric front covers in red and black are included, designed as interchangeable acoustic grilles tensioned over removable frames. The architecture reflects Bang & Olufsen’s transition toward compact, digitally managed active loudspeakers with integrated amplification and Powerlink signal interfacing.

I. Primary Materials & Structural Framework

The enclosure is a triangular, tapered composite shell with thick molded walls designed to reduce parallel internal surfaces. The front baffle is recessed behind a removable fabric grille frame, secured at the rear by mechanical latching points. The mid-bass driver is mounted to an internal sub-baffle with evenly spaced machine screws, indicating threaded inserts rather than direct polymer tapping. Above it sits a small dome tweeter in a dedicated upper chamber, mechanically isolated from the lower driver cavity. The speaker column is brushed aluminum tubing, press-fitted or mechanically fastened into a circular cast aluminum base with substantial mass relative to cabinet size, improving stability. The base shows superficial radial scuffs consistent with floor contact rather than structural deformation. No enclosure seam separation or cracking is evident at driver mounting points.

II. Circuit Architecture & Component Quality

Each unit employs active bi-amplification, with discrete amplifier channels dedicated to woofer and tweeter. The amplification is based on ICEpower Class D modules, consistent with Bang & Olufsen’s in-house switching amplifier technology during this period. The crossover is implemented at line level prior to amplification, eliminating passive high-current crossover components and improving driver damping control. Power is supplied via an internal switch-mode power supply, optimized for compact thermal footprint rather than large linear transformer mass. Electrolytic capacitors within the supply stage are likely low-ESR types suited to switching environments; long-term reliability depends primarily on thermal cycling rather than excessive ripple stress in this power class. Signal input is via Powerlink, indicating balanced or semi-balanced line-level communication integrated within the Bang & Olufsen ecosystem, with mains power delivered independently.

III. Thermal Management & Load Handling

Thermal dissipation is managed through internal heat sinking coupled to the rear enclosure surface and passive convection through concealed venting. Class D amplification minimizes steady-state heat generation, permitting a sealed aesthetic without external fins. The vertical separation of tweeter and woofer chambers reduces thermal coupling between amplifier and high-frequency driver. Given the compact cabinet volume, sustained high output would elevate internal temperature; however, the intended nearfield or small-room application reduces long-duration full-power demand. No visible polymer discoloration or warping suggests acceptable thermal margins under typical use. Driver surrounds appear uniform, with no visible cracking or flattening indicative of prolonged over-excursion.

IV. Assembly Method & Manufacturing Discipline

Driver mounting screws are evenly torqued with no evidence of tool slip or head damage, suggesting factory assembly integrity. The grille frames are precisely cut and tensioned, with fabric edges cleanly wrapped and secured. The aluminum column exhibits uniform brushing and consistent diameter, with tight interface at the cabinet junction. The circular base shows concentric machining patterns typical of controlled finishing rather than stamped plate. No evidence of reflowed solder, replaced fasteners, or non-original hardware is visible at accessible junctions. Cable strain relief at the column base appears integral, preventing sharp bending at the exit point.

V. Interfaces, Controls & Contact Surfaces

The rear connection panel, while not fully visible here, typically includes Powerlink input and mains inlet, sometimes with line-level RCA depending on variant. The absence of external gain or tone controls indicates reliance on upstream system configuration rather than onboard adjustment. Fabric covers in red and black are present; attachment tabs and label badges appear intact and aligned. Fabric surfaces show even coloration without sagging or delamination from frame substrate. Contact wear is minimal at mounting interfaces, consistent with limited removal cycles. The driver cones and surrounds show no indentations or punctures, and the tweeter dome remains centered without visible deformation.

VI. Production Context & Market Position

The BeoLab 4 was positioned as a premium compact active loudspeaker within the Bang & Olufsen lineup, frequently paired with BeoSystem components or used as desktop monitors with compatible systems. It occupied a higher price tier than passive bookshelf speakers of similar size due to integrated amplification and brand positioning. Production scale was moderate, distributed globally through authorized retailers rather than mass-market channels. It represents early widespread application of ICEpower modules in small-format consumer loudspeakers. Intended service environment was domestic interior, office, or nearfield listening positions, with expected lifespan exceeding a decade under standard thermal conditions.

VII. Preservation State & Intervention Evidence

Both enclosures show intact structural geometry with no seam separation. The aluminum bases exhibit light surface scratching consistent with placement movement rather than impact damage. No evidence of driver replacement, mismatched screws, or disturbed mounting flanges is visible. Fabric covers appear original, with badges intact and no re-stitching or adhesive bleed-through. Power and Powerlink cables are included, suggesting continued compatibility within the intended ecosystem. There are no visible signs of overheating, enclosure stress, or user modification.

VIII. Market Standing & Value Estimation

Current secondary market value for a functional pair with stands and original cables typically ranges between 600 and 1,000 USD depending on cosmetic condition and amplifier stability. Liquidity is strongest among existing Bang & Olufsen system owners seeking matched satellite speakers. Replacement cost relative to modern equivalents within the same brand tier remains higher than resale value, reflecting depreciation common to integrated active electronics. Intrinsic material value is modest; the primary valuation driver is integrated ICEpower amplification, compact active design, and brand alignment rather than rarity of components.
