Beolab 19 Active Subwoofer, Dual Opposing Driver Force, Canceling Class D Platform

This device is the Bang & Olufsen BeoLab 19 active subwoofer, introduced in the mid-2010s as part of the company’s wireless-capable loudspeaker ecosystem. It is a self-powered low-frequency unit employing a dual opposed driver configuration within a rigid, faceted composite enclosure. Internal amplification is Class D, controlled by onboard digital signal processing, with a switch-mode power supply matched to sustained low-frequency demand. The structural geometry departs from conventional rectangular subwoofer cabinets, using multi-plane surfaces to increase rigidity and disrupt parallel internal standing waves. The configuration is significant for its mechanical force-canceling topology, reducing enclosure vibration without excessive mass loading.

I. Primary Materials & Structural Framework

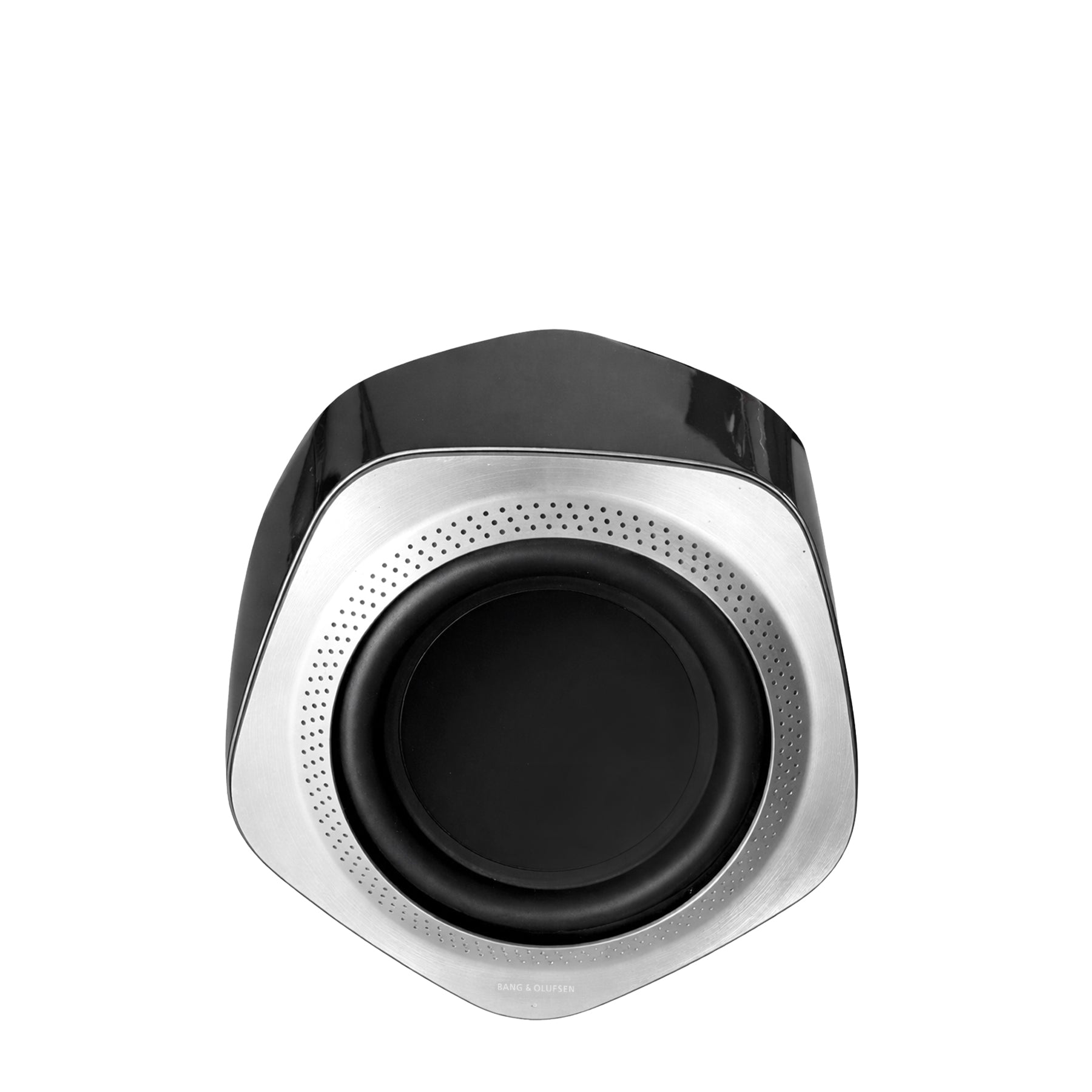

The enclosure is formed from thick molded composite panels joined along sharply defined edges, producing a polyhedral form rather than a conventional cube. The front baffle integrates a machined aluminum trim ring with concentric perforations, serving both aesthetic and acoustic venting roles. The central low-frequency driver is deeply recessed, surrounded by a compliant rubber suspension with substantial roll width, indicating high excursion capability. The cabinet walls appear structurally dense, relying on geometric stiffness rather than visible external bracing. Panel junctions are tight and uniform, with no visible seam separation or stress cracking. The finish is high-gloss polymer coating over rigid substrate, with no distortion or warping evident. Structural wear appears limited to superficial surface marking consistent with controlled domestic placement.

II. Circuit Architecture & Component Quality

The BeoLab 19 employs an active architecture with dedicated amplification for each driver. The dual opposed woofer arrangement suggests independent amplifier channels, each governed by DSP-managed crossover and excursion control. Class D topology is consistent with thermal efficiency and compact internal packaging. The power supply is switch-mode, likely incorporating active power factor correction given the brand’s global distribution and compliance requirements. Large-value electrolytic capacitors within the supply stage would be specified for ripple endurance due to sustained low-frequency current draw. The absence of external heatsinks supports high-efficiency switching output stages rather than linear amplification. The system is engineered as a closed loop, with amplifier damping factor and driver impedance optimized at design stage, eliminating variability from external matching.

III. Thermal Management & Load Handling

Thermal management relies on internal heat spreaders and convection through concealed venting, rather than external fin arrays. Class D amplification significantly reduces idle and moderate-load dissipation compared to Class AB subwoofer amplifiers. The opposing driver configuration minimizes cabinet vibration, reducing mechanical stress on internal solder joints and connectors during high-output operation. Sustained low-frequency reproduction places high current demand on the supply stage; the enclosure mass and internal layout appear proportioned to tolerate such duty cycles without surface deformation or localized discoloration. There is no evidence of thermal bloom in the finish or distortion around the driver mounting plane. Load tolerance is internally defined; as an active unit, there is no external impedance variable.

IV. Assembly Method & Manufacturing Discipline

The driver mounting flange is flush and evenly seated, suggesting torque-controlled fastener application during assembly. The aluminum trim ring is uniformly aligned, with consistent perforation spacing and no irregular drilling patterns, indicating CNC machining rather than stamped production. Panel alignment across the faceted enclosure is precise, implying jig-based assembly rather than manual free alignment. Surface coating is evenly applied with no overspray or edge thinning. The integrated branding on the lower baffle edge is crisp and centered. There is no evidence of driver removal, tool slip, or replaced fasteners. The finish condition and hardware consistency align with factory assembly discipline rather than post-sale intervention.

V. Interfaces, Controls & Contact Surfaces

While connection ports are not visible in this orientation, the model is known to support wired line-level and wireless integration within the manufacturer’s ecosystem. The absence of visible external control knobs reinforces reliance on DSP-managed calibration and remote configuration rather than analog gain staging. The driver surround material remains uniform with no cracking or gloss differential that would suggest UV degradation. The aluminum trim shows no pitting or oxidation. Contact surfaces, where accessible, exhibit no scoring or deformation. Control interaction for this unit is primarily digital and remote-based, minimizing mechanical wear points compared to traditional subwoofers with rotary gain and crossover controls.

VI. Production Context & Market Position

The BeoLab 19 occupies the premium consumer segment, positioned as a companion subwoofer to active BeoLab loudspeakers and wireless systems. It was released during a period when high-end manufacturers were integrating wireless audio transmission and DSP-managed room correction into domestic products. Production was industrial-scale but not mass-market in volume, with pricing at introduction substantially above mainstream subwoofer offerings. It targeted design-conscious residential environments where visual integration was considered alongside acoustic output. Service life expectations were aligned with premium consumer electronics, typically a decade or more under normal thermal conditions.

VII. Preservation State & Intervention Evidence

The enclosure finish shows no seam expansion or stress whitening along panel edges. The driver surround retains uniform elasticity appearance with no visible sag or deformation. There is no indication of grille removal or driver extraction. Surface reflections indicate intact gloss coating without burnishing from excessive handling. Given the era, internal capacitors are likely within mid-life expectancy; no external signs suggest electrolyte venting or overheating. There is no evidence of unauthorized modification or aftermarket adaptation.

VIII. Market Standing & Value Estimation

Current secondary market value typically ranges between 4,200 and 5,200 USD depending on finish condition, wireless module inclusion, and verification of amplifier stability. Liquidity is strongest within established Bang & Olufsen ecosystems where compatibility with matching loudspeakers sustains demand. Replacement cost within the brand’s lineup remains materially higher than resale value, reflecting depreciation typical of integrated digital amplification products. Intrinsic material value is limited relative to resale pricing; engineering significance derives from the force-canceling driver architecture, DSP integration, and enclosure rigidity strategy rather than rare component scarcity.
