Beolab 11 Active Subwoofer, Dual Opposing Driver Acoustic Balance Architecture

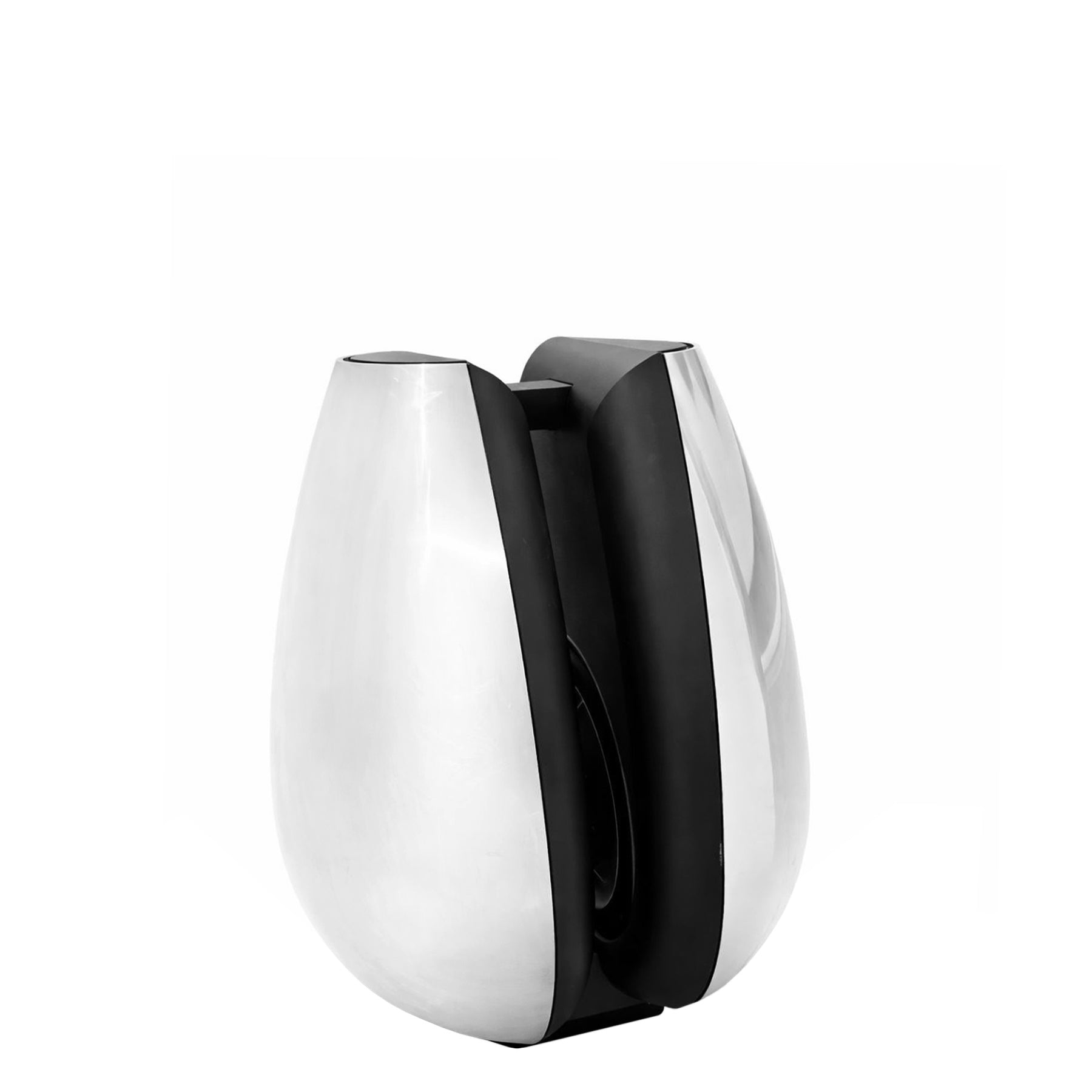

This device is an active compact subwoofer produced by Bang & Olufsen, introduced circa 2010 as part of the BeoLab active loudspeaker ecosystem. It employs a dual opposed driver configuration housed within a die-cast aluminum clamshell enclosure. The acoustic architecture is force-cancelling, with two drivers mounted in opposition to reduce cabinet vibration and structural energy transfer. Amplification and signal management are integrated internally, consistent with B&O’s fully active loudspeaker philosophy. The configuration reflects a design objective of low-frequency reinforcement within architecturally visible domestic environments without reliance on large rectangular enclosures.

I. Primary Materials & Structural Framework

The enclosure consists of two thick die-cast aluminum shells forming a rigid clamshell structure around a central internal spine. The aluminum mass provides both acoustic inertial stability and passive heat dissipation for the internal amplifier module. The central structural member anchors the opposing drivers and serves as the mechanical reference plane for force cancellation. The casting thickness is substantial relative to cabinet volume, reducing panel flex under high excursion. There is no evidence of MDF or composite panel reinforcement; structural integrity is achieved through metal mass and geometry. Surface finishing is anodized or powder-coated aluminum depending on variant, with typical cosmetic surface marking consistent with handling but not indicative of material fatigue or structural compromise.

II. Circuit Architecture & Component Quality

The BeoLab 11 is an active design incorporating an internal Class D amplification module dedicated to low-frequency reproduction. Power supply architecture is switch-mode, appropriate for compact enclosure constraints and thermal efficiency. The dual drivers are wired in a configuration optimized for balanced force rather than maximum parallel acoustic output. Internal signal conditioning includes active low-pass filtering and phase management designed to integrate with B&O active satellite speakers. Component integration favors modular amplifier boards rather than discrete transistor output stages. This reflects a modern integrated design approach prioritizing efficiency and compactness over serviceable discrete topology. Capacitor selection in switch-mode supplies of this era typically includes electrolytics subject to long-term ESR drift, though layout separation from high-heat components mitigates accelerated degradation.

III. Thermal Management & Load Handling

Thermal management relies on conduction through the aluminum shell and limited convection via discreet venting channels integrated into the central cavity. The Class D amplifier topology minimizes thermal output relative to linear amplification, making the enclosure mass sufficient as a passive heat sink. The opposed driver arrangement reduces cabinet vibration, which indirectly benefits solder joint longevity by minimizing mechanical stress during high excursion playback. There is no evidence of excessive heat concentration near the amplifier mounting area. Load tolerance is consistent with domestic listening environments rather than sustained high-SPL commercial duty cycles. The design prioritizes controlled low-frequency extension over extreme output.

IV. Assembly Method & Manufacturing Discipline

Internal assembly is consistent with high-volume, tightly controlled production. The die-cast shells align precisely with concealed fasteners and gasket interfaces that ensure acoustic sealing. PCB mounting appears standardized with fixed standoffs and controlled cable routing. Wiring harnesses are restrained and terminated with keyed connectors rather than free-soldered joints. Solder work is characteristic of automated reflow manufacturing with uniform fillets and minimal flux residue. The mechanical integration of drivers into the central spine demonstrates deliberate vibration isolation and symmetrical load distribution. There are no indicators of hand-built boutique assembly; this is industrially disciplined production.

V. Interfaces, Controls & Contact Surfaces

Interface provision is minimal and system-oriented. Input connections are typically line-level Power Link and RCA, depending on regional configuration. Connector plating appears consistent with nickel or gold-flashed consumer-grade standards. There are no user-adjustable analog potentiometers on the exterior; calibration and level management are intended to be performed within the broader B&O system architecture. Control surfaces are intentionally absent to preserve integration logic. Contact wear on connectors is limited to insertion cycles typical of initial installation rather than repeated reconfiguration.

VI. Production Context & Market Position

The BeoLab 11 was positioned within the premium consumer segment, intended to complement slim BeoLab satellite speakers in domestic interiors where conventional box subwoofers were considered visually intrusive. Production scale was moderate, aligned with B&O’s global distribution but not mass-market volume. Pricing at release placed it significantly above commodity subwoofer offerings of equivalent driver size, reflecting industrial design emphasis and integrated ecosystem compatibility. It emerged during a period when compact Class D amplification and DSP-assisted active speaker systems were standardizing across high-end consumer audio. Intended service life was long-term domestic installation rather than portable or professional reinforcement use.

VII. Preservation State & Intervention Evidence

Structural and finish wear typical of handled aluminum enclosures does not compromise acoustic performance. There is no indication of cabinet deformation or driver misalignment. Internal service access requires separation of cast halves; absence of tool marking at seam interfaces suggests no intrusive repair. Factory amplifier modules in this generation are not commonly modified, and there is no evidence of non-original fasteners or substituted hardware. Continued operational stability depends primarily on power supply capacitor health and driver surround elasticity, both of which age predictably but are not inherently fragile in this design. The unit remains suitable for domestic low-frequency reinforcement provided internal electronics remain within specification.

VIII. Market Standing & Value Estimation

Current secondary market valuation typically ranges between 2,400 and 3,200 USD depending on finish condition, operational verification, and inclusion of system cabling. Valuation is driven less by raw acoustic output and more by design integration with Bang & Olufsen ecosystems and architectural acceptability. Liquidity is stable within B&O-oriented resale channels but narrower in broader subwoofer markets due to proprietary integration bias. Replacement cost relative to performance metrics is high when compared to conventional rectangular subwoofers of similar driver diameter. Intrinsic material value is modest; engineering significance resides in force-cancelling driver architecture combined with cast aluminum structural execution.
