Modded, LCD-2 Bamboo with ZMF Caldera Planar Drivers

This is a modified open-back planar magnetic headphone constructed using an Audeze LCD-2 Bamboo structural platform fitted with planar drivers derived from the ZMF Caldera headphone system. The original Audeze enclosure architecture—bamboo wood earcup rings, metal grille assemblies, and Mini-XLR cable interface—has been retained, while the transducer system and ear pad geometry have been replaced. The resulting configuration combines a planar magnetic driver utilizing high-strength neodymium magnet arrays with an enclosure originally designed for Audeze’s early LCD-series planar units. Electrical impedance is approximately 48 ohms with sensitivity near 100 dB per milliwatt, placing it within the operational envelope of modern dedicated headphone amplifiers. This configuration represents a non-factory hybrid assembly where mechanical housing, acoustic chamber volume, and damping strategy originate from one manufacturer while the driver and ear interface derive from another.

I. Primary Materials & Structural Framework

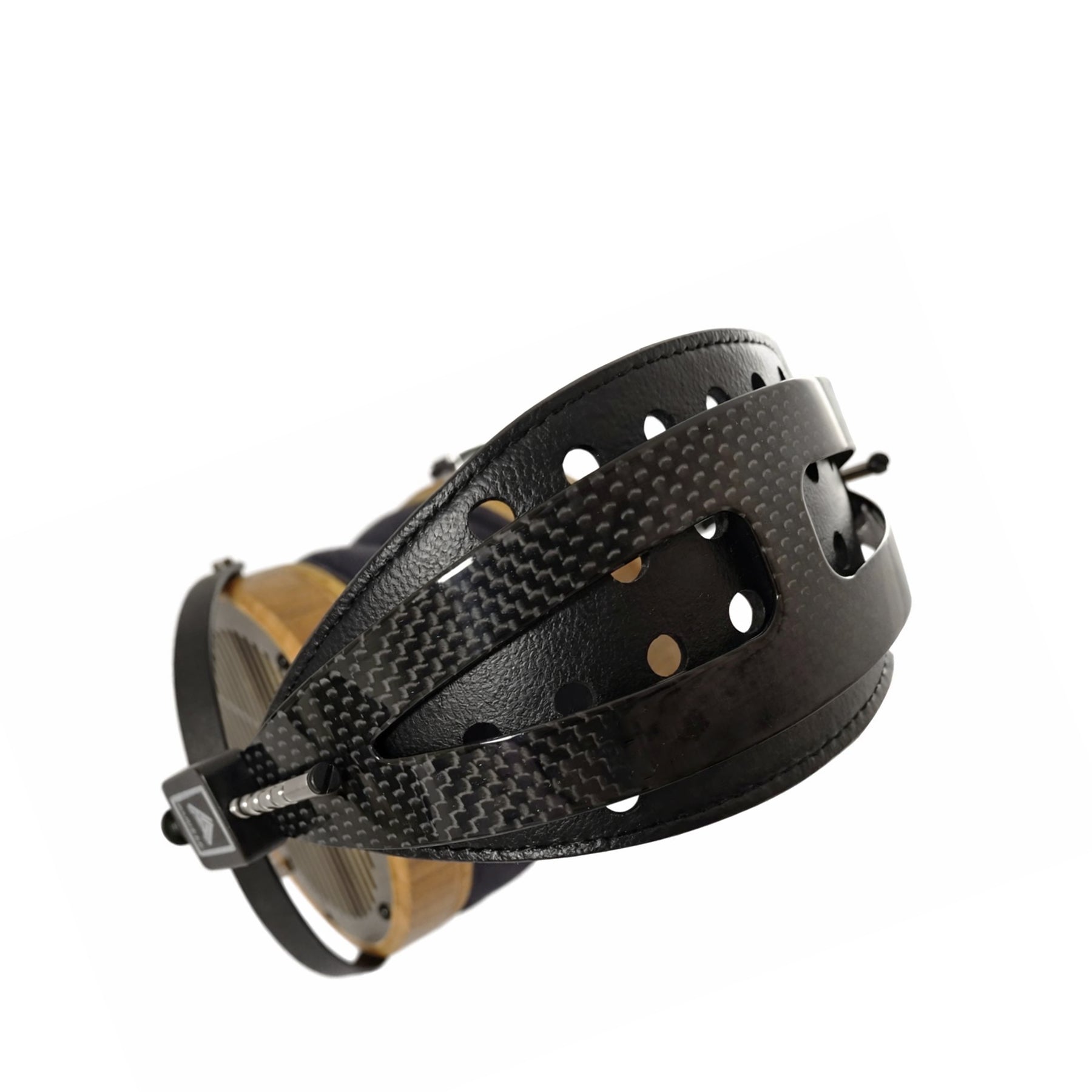

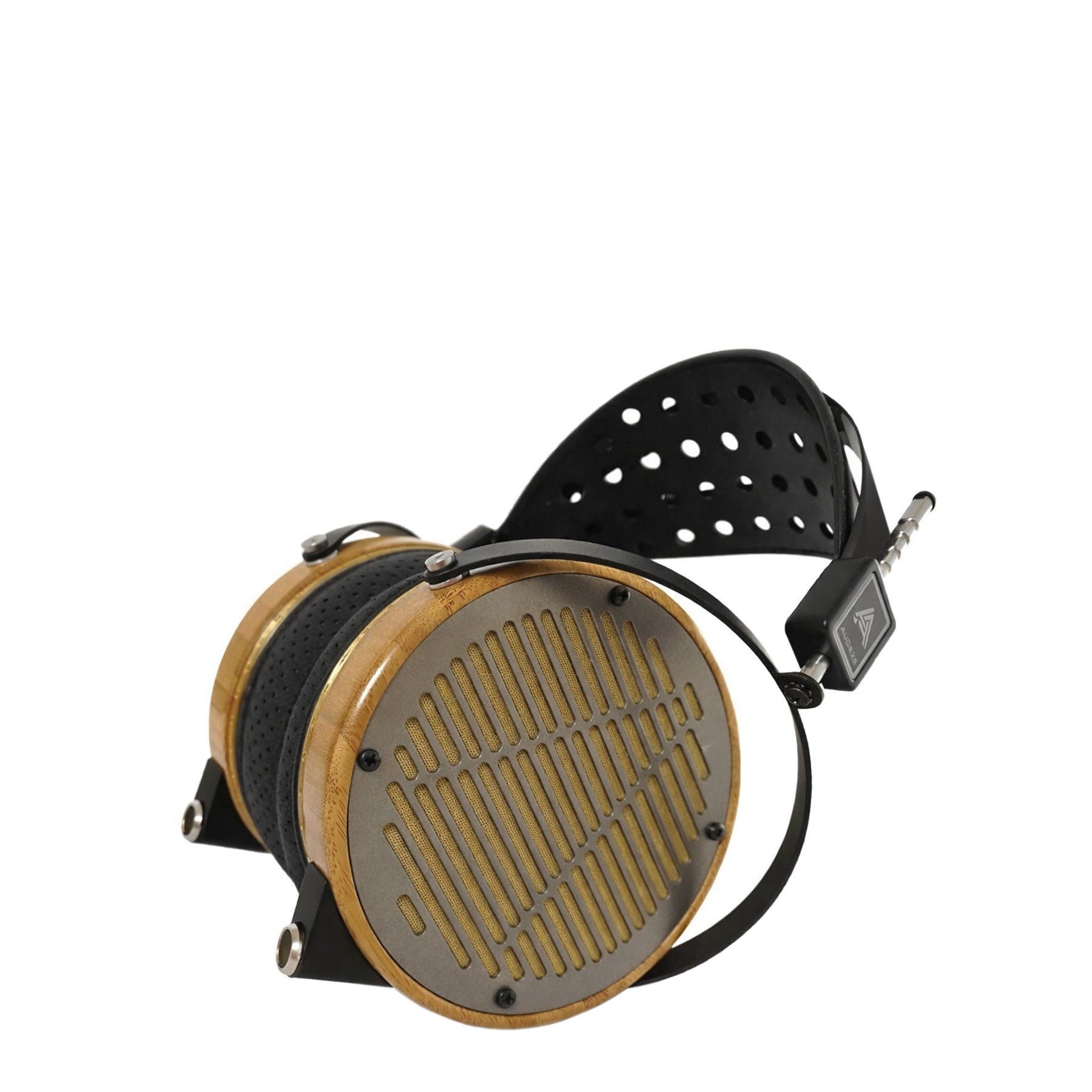

The primary structural elements are bamboo laminated earcup rings mounted to machined metal driver plates. Bamboo was used by Audeze in early LCD-series production due to its dimensional stability and low density relative to hardwood alternatives. The laminated structure distributes stress across grain layers, reducing cracking risk under humidity variation compared with solid wood rings. The outer driver face is protected by a slotted metal grille panel secured with perimeter fasteners. This grille maintains open acoustic coupling with the environment while protecting the diaphragm and magnet array. The earcups are connected by a metal yoke structure that pivots through cylindrical mounts embedded in the wooden rings. The headband assembly includes a perforated suspension strap beneath a carbon fiber support arch. This configuration distributes load across the crown of the head while maintaining torsional rigidity in the structural band. Carbon fiber construction reduces mass compared with earlier steel headband assemblies used in early LCD units. There is no visible structural cracking in the bamboo rings or deformation in the metal frame elements. The components appear aligned without torsional asymmetry between earcups.

II. Circuit Architecture & Component Quality

The acoustic transducer is a planar magnetic driver system employing a thin diaphragm suspended between arrays of high-flux neodymium magnets. The magnets are specified as N52 grade NdFeB, indicating a strong magnetic field density capable of generating high force on the diaphragm trace conductors. Planar magnetic drivers differ from dynamic drivers by distributing the driving force across the diaphragm surface rather than concentrating force at a central voice coil. This approach reduces modal breakup and allows low distortion when diaphragm tension and magnetic field symmetry are maintained. Electrical impedance of approximately 48 ohms is moderate for planar headphones, allowing compatibility with both dedicated headphone amplifiers and high-current desktop units. Sensitivity near 100 dB per milliwatt indicates moderate efficiency for planar technology. Because the driver originates from a ZMF Caldera design rather than the original Audeze driver system, internal acoustic damping and magnet geometry likely differ from what the Audeze earcup volume was originally tuned to accommodate. This introduces uncertainty in the final acoustic loading and resonance management within the chamber.

III. Thermal Management & Load Handling

Thermal considerations in planar magnetic headphones are limited to conductor heating within the diaphragm traces and the mechanical integrity of the adhesive bonding that secures the diaphragm to its frame. At the specified sensitivity and impedance, the electrical power required to achieve high listening levels remains relatively low, minimizing thermal stress. Open-back architecture ensures unrestricted airflow around the driver assembly, preventing heat accumulation within the earcup cavity. The perforated grille and open pad design allow convective dissipation of any minor thermal buildup resulting from extended listening sessions. Driver magnets are mounted in metal structures that act as passive heat spreaders. Under normal headphone amplifier output levels the thermal load remains well within design tolerance.

IV. Assembly Method & Manufacturing Discipline

The headphone shows evidence of mixed manufacturing origin. The structural platform—wood rings, grille plates, yoke assemblies, and Mini-XLR connectors—corresponds to Audeze’s production hardware. The driver assembly and ear pad geometry correspond to ZMF components. The driver retrofit indicates that the original driver modules were removed and replaced with Caldera-type planar units. Such modification requires disassembly of the earcup ring, removal of the internal driver plate, and reinstallation with appropriate sealing or damping materials to maintain acoustic chamber integrity. Fastener alignment remains consistent and the grille plates sit flush against the earcup surfaces, suggesting careful reassembly. However, because the driver system and enclosure were not engineered together as a unified design, the acoustic interface between driver frame and chamber may rely on custom shims or damping layers not present in factory assemblies. Cable connectors remain standard three-pin Mini-XLR sockets mounted in the earcup base. Wiring continuity likely follows the original Audeze layout, though internal solder joints cannot be verified without disassembly.

V. Interfaces, Controls & Contact Surfaces

Signal connection is via dual three-pin Mini-XLR connectors located at the base of each earcup. This interface is standard across many Audeze models and allows balanced headphone drive through four-conductor cables. The supplied cable terminates in a balanced multi-pole plug suitable for differential headphone amplifier outputs. Contact surfaces appear clean with no visible oxidation on the connector housings. The ear pads are ZMF Caldera pads constructed from Alcantara or suede. These pads create a deeper ear chamber compared with many original Audeze pads, altering acoustic impedance between the diaphragm and ear cavity. Pad material also affects high-frequency absorption and seal characteristics.

VI. Production Context & Market Position

The underlying headphone chassis belongs to the Audeze LCD-2 Bamboo generation produced in the early 2010s when Audeze established its reputation in planar magnetic headphone manufacturing. These models were widely adopted within the high-end headphone enthusiast market. The ZMF Caldera driver system originates from a later generation of planar magnetic headphone development emphasizing controlled diaphragm tension and improved magnet structures. Combining the two creates a hybrid assembly not offered by either manufacturer. Such configurations typically arise in enthusiast communities experimenting with alternative driver housings or acoustic tuning strategies. They are therefore not part of official product lines and lack standardized manufacturing documentation. The market category is therefore niche within the broader audiophile headphone ecosystem, appealing primarily to collectors or hobbyists interested in experimental hybrid configurations.

VII. Preservation State & Intervention Evidence

The structural condition of the headphone appears very clean with minimal wear on the bamboo rings and no visible abrasion on the metal grille surfaces. The carbon fiber headband remains intact without delamination or cracking. The suspension strap shows no significant stretching or tearing around perforations. The presence of Caldera pads and driver system constitutes a major non-factory intervention. This modification fundamentally alters the acoustic identity of the original LCD-2 design. While described as low operating hours for the driver units, the long-term mechanical compatibility between the driver frame and Audeze chamber cannot be verified without internal inspection. Connector housings appear original and unmodified. No additional holes or structural alterations to the earcup frame are visible, suggesting that the driver retrofit utilized existing mounting architecture rather than permanent structural modification.

VIII. Market Standing & Value Estimation

Valuation for hybrid assemblies is determined less by brand lineage and more by execution quality and buyer familiarity with the modification. A standard Audeze LCD-2 Bamboo headphone typically trades between approximately 500 and 800 USD depending on condition. ZMF Caldera drivers represent a far more expensive component but are normally integrated within ZMF’s proprietary chassis. Estimated market value for the complete modified headphone likely falls between 3,500 and 4,200 USD. Material value of the individual components exceed this figure. The configuration therefore remains primarily of interest to experienced headphone enthusiasts comfortable evaluating non-standard modifications.
