Fucsia 1 Suspension, Conical Borosilicate Glass Pendant with Sandblasted Diffusion Ring

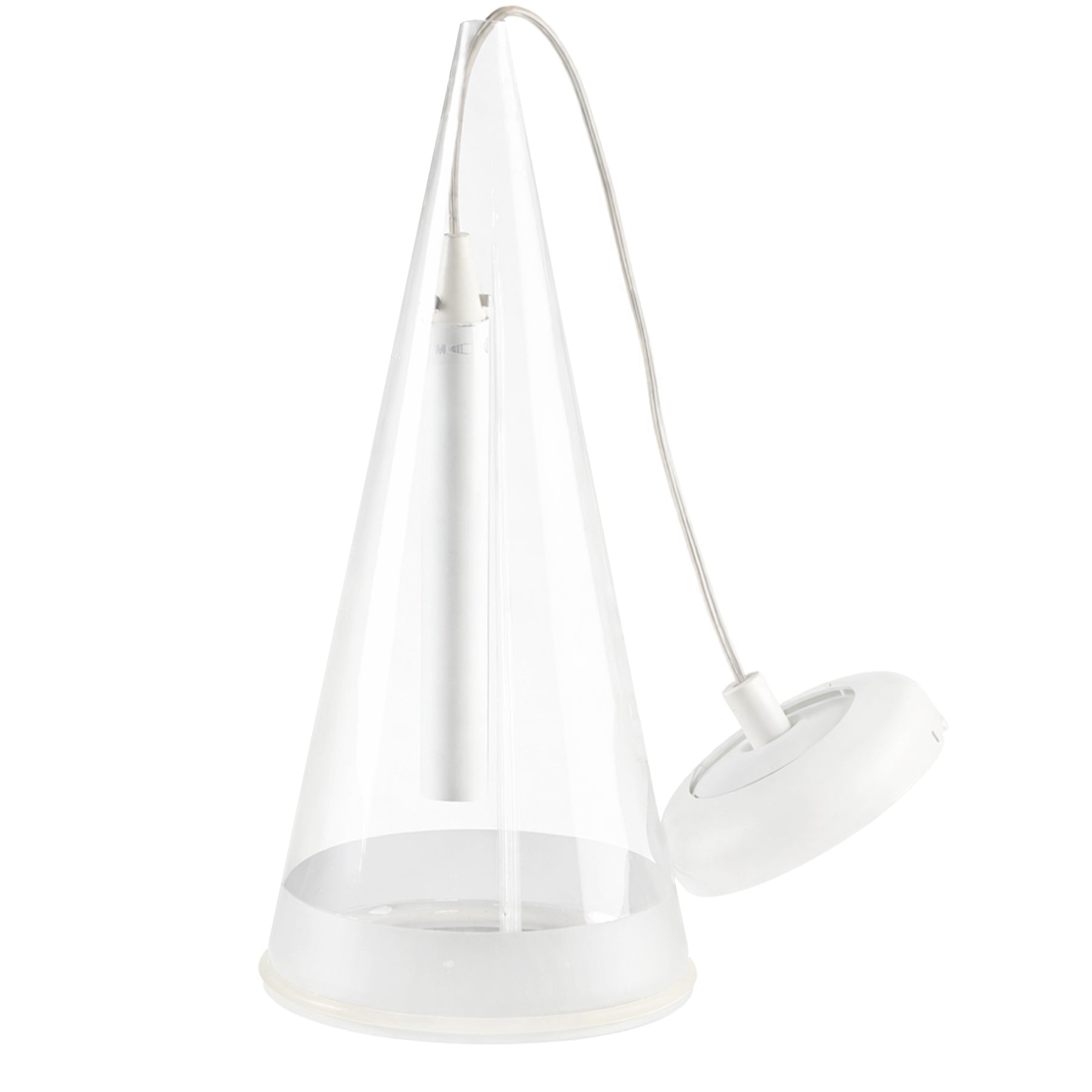

This pendant luminaire is the Fucsia 1 suspension designed by Achille Castiglioni for Flos and introduced in 1996. The fixture consists of a vertically suspended conical borosilicate glass shade paired with a sandblasted glass ring that modifies the downward light distribution. Illumination is produced by a single narrow-profile incandescent source positioned within a white cylindrical socket sleeve suspended inside the glass cone. The design reflects Castiglioni’s late-period exploration of minimal glass volumes combined with controlled optical modification through localized surface treatment. Production is industrial but relies on precision glass forming and restrained mechanical hardware rather than decorative assembly.

I. Primary Materials & Structural Integrity

The diffuser body is formed from clear borosilicate glass shaped into a tapered conical volume with relatively thin but structurally stable wall thickness. Borosilicate glass offers increased thermal resistance compared with standard soda-lime glass and is commonly used where proximity to incandescent light sources is expected. The lower edge of the cone is fitted with a secondary sandblasted glass ring that slightly thickens the rim and stabilizes the diffuser edge. Internal components include a white polymer or ceramic cylindrical sleeve that houses the lamp holder and provides electrical insulation from the glass enclosure. Suspension is achieved through a two-conductor cable anchored to a molded plastic ceiling canopy. Structural integrity relies on the rigidity of the glass cone and the controlled suspension geometry that keeps load stresses centered along the vertical axis.

II. Fabrication Method & Assembly Logic

The conical diffuser is produced through glass blowing or precision forming followed by trimming and polishing of the lower rim. The frosted ring visible near the base is created through controlled sandblasting of the glass surface rather than application of a separate coating. The internal lamp support is a molded cylindrical component mounted to a horizontal cross pin that passes through the upper region of the cone, stabilizing the lamp position without relying on the glass walls for support. Electrical conductors pass through the suspension cable to the lamp holder within this internal sleeve. The glass shade itself remains structurally independent from the electrical assembly, allowing removal for maintenance if necessary.

III. Electrical System & Wiring Architecture

The electrical system uses a single small-format incandescent lamp positioned vertically within the conical shade. The socket is mounted inside a white insulating sleeve which also conceals electrical contacts and prevents direct visual exposure of the lamp base. Wiring is routed through a transparent or lightly tinted two-conductor suspension cable that functions as both electrical feed and mechanical support. The canopy contains the electrical termination point where building supply wiring connects to the fixture leads. The electrical architecture is simple and direct, with no transformer or driver components integrated within the luminaire body.

IV. Surface Treatment & Finish Stratigraphy

The primary glass surface remains clear and uncoated, allowing the inherent optical properties of borosilicate glass to define the visual appearance. The diffusion band near the lower rim is created by sandblasting the glass surface, producing a matte micro-textured finish that scatters light passing through the edge of the cone. Internal hardware components are finished in white polymer or painted metal, maintaining visual neutrality inside the transparent enclosure. The suspension cable insulation has a translucent appearance typical of PVC-jacketed conductors used in late twentieth-century European lighting manufacture.

V. Optical Design & Light Distribution Logic

The optical strategy relies on a combination of direct downward emission and peripheral diffusion from the sandblasted rim. The lamp emits light downward through the open base of the cone while the frosted ring intercepts a portion of the light and scatters it laterally. This treatment softens the otherwise sharply defined beam typical of clear glass pendants. The elongated vertical lamp geometry ensures that the brightest portion of the bulb remains shielded from oblique viewing angles by the conical walls. The result is a controlled downward light source with moderated edge glare.

VI. Production Context & Market Position

The Fucsia series represents part of Achille Castiglioni’s later collaborations with Flos during the 1990s. These designs frequently reduced the luminaire to essential optical components while maintaining careful control of light behavior. Unlike earlier mid-century fixtures where heavy metal reflectors dominated, the Fucsia pendant uses glass transparency and localized surface modification as the primary optical tools. Flos positioned the model within the company’s architectural decorative lighting catalog where modular group installations of multiple pendants were common in residential and hospitality interiors.

VII. Preservation State & Intervention Evidence

The glass cones appear intact with no visible cracking or structural compromise along the rim or suspension opening. Minor surface dust accumulation on the glass exterior is consistent with typical use and storage rather than structural deterioration. The suspension cables and ceiling canopies appear original to the fixtures and retain their molded strain-relief fittings. Internal socket assemblies remain in their original cylindrical sleeves without visible replacement hardware. No rewiring or structural modification is evident within the electrical components.

VIII. Market Standing & Value Estimation

The Fucsia 1 suspension remains a recognizable component of the Flos catalog and is still traded within the contemporary design lighting secondary market. Individual fixtures typically sell between approximately 280 and 300 EUR depending on condition and presence of original canopy hardware. Sets or matched pairs often command a modest premium due to their suitability for multi-pendant installations. Because the design remains in periodic production, collector value derives primarily from functional design appeal rather than rarity.
